User manual for Da-Lite 83247ES Boardroom Electrol Motorized Projection 83247ES

Da-Lite 83247ES Boardroom Electrol Motorized Projection 83247ES
  • Manufacturer: Da-Lite
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projection Screens - Electric Screens (Square & 4:3 Formats)
  • Safety instructions
  • Startup and operation of the electric screens (square & 4:3 formats)
  • Tips for setting up your Da-Lite
  • Settings and expert assistance
  • Contact Da-Lite service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Da-Lite 83247ES Boardroom Electrol Motorized Projection 83247ES, which address similar problems with connecting and setting up Electric Screens (Square & 4:3 Formats) Da-Lite.


User manual for the Da-Lite 83247ES Boardroom Electrol Motorized Projection 83247ES

The user manual for the Da-Lite 83247ES Boardroom Electrol Motorized Projection 83247ES provides necessary instructions for the proper use of the product A/V Presentation - Projection Screens - Electric Screens (Square & 4:3 Formats).

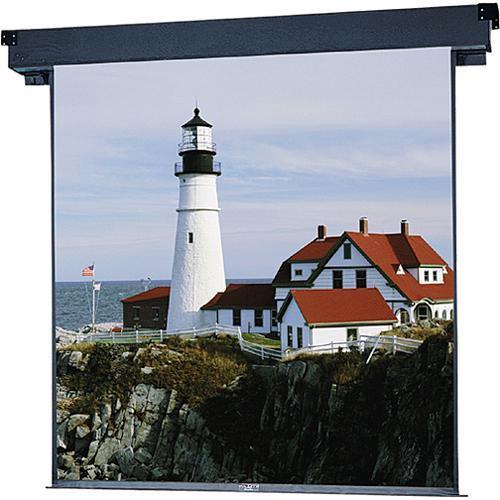

The Dalite 9 x 9' Boardroom Electrol Motorized Projection Screen is targeted for the company that needs a high-performance screen. Perfect for conference rooms or lecture halls, this ceiling recessed screen features a fully automatic ceiling closure that hides the surface when not needed.

The ceiling recessed design features a door that automatically opens and closes when raising or lowering the screen. The door opens by gravity and when the screen is raised two ends of the screen surface grab hooks which then close the doors behind it.
If you own a Da-Lite electric screens (square & 4:3 formats) and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Da-Lite 83247ES Boardroom Electrol Motorized Projection 83247ES in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Da-Lite 83247ES Boardroom Electrol Motorized Projection 83247ES:

Go To

Type
Style Boardroom Electrol
Front/Rear Projection Front
Mount Ceiling recessed
Finish High Power; flame retardant and mildew resistant fiberglass
Tension Control Non-tensioned
Keystone Control Not Applicable
Dimensions
Overall Size Not Specified by Manufacturer
Image Size 9 x 9' (2.7 x 2.7 m)
Diagonal 153" (3.9 m)
Format Square (Audio-Visual)
Aspect Ratio 1:1
Masking Options Standard black masking borders
Controls
Voltage 220V, 50Hz
Silent Motor

This item is wired for 220V, European voltage ONLY
Integrated Control Three position control switch with cover plate; preset but adjustable limit switches to automatically stop picture surface in the "down" position
Control Options Wireless Remote Control for LVC
Radio Frequency Remote
Casing
Color Black
Material Wood - metal lined wiring compartment
Length 121.5" (3.1 m)
General
Shipping Weight 119 lbs (54.0kg)
Packaging Info
Package Weight 119.0 lb
Box Dimensions (LxWxH) 130.5 x 9.0 x 8.0"
The user manual for the Da-Lite 83247ES Boardroom Electrol Motorized Projection 83247ES can be downloaded in .pdf format if it did not come with your new electric screens (square & 4:3 formats), although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Da-Lite users keep a unique electronic library for Da-Lite electric screens (square & 4:3 formats)s, where you can use our link to download the user manual for the Da-Lite 83247ES Boardroom Electrol Motorized Projection 83247ES.

The user manual lists all of the functions of the Da-Lite 83247ES Boardroom Electrol Motorized Projection 83247ES, all the basic and advanced features and tells you how to use the electric screens (square & 4:3 formats). The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Da-Lite service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Da-Lite 83247ES Boardroom Electrol Motorized Projection 83247ES. User manuals are also available on the Da-Lite website under A/V Presentation - Projection Screens - Electric Screens (Square & 4:3 Formats).
