User manual Da-Lite 88147ER Advantage Deluxe Electrol Motorized 88147ER

Operating instructions and pdf manual for use - Da-Lite 88147ER Advantage Deluxe Electrol Motorized 88147ER User manual, User manual Da-Lite 88147ER Advantage Deluxe Electrol Motorized 88147ER, Da-Lite, 88147ER, Advantage, Deluxe, Electrol, Motoriz

User manual for Da-Lite 88147ER Advantage Deluxe Electrol Motorized 88147ER

Da-Lite 88147ER Advantage Deluxe Electrol Motorized 88147ER
  • Manufacturer: Da-Lite
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projection Screens - Electric Screens (Wide Formats)
  • Safety instructions
  • Startup and operation of the electric screens (wide formats)
  • Tips for setting up your Da-Lite
  • Settings and expert assistance
  • Contact Da-Lite service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Da-Lite 88147ER Advantage Deluxe Electrol Motorized 88147ER, which address similar problems with connecting and setting up Electric Screens (Wide Formats) Da-Lite.


User manual for the Da-Lite 88147ER Advantage Deluxe Electrol Motorized 88147ER

The user manual for the Da-Lite 88147ER Advantage Deluxe Electrol Motorized 88147ER provides necessary instructions for the proper use of the product A/V Presentation - Projection Screens - Electric Screens (Wide Formats).

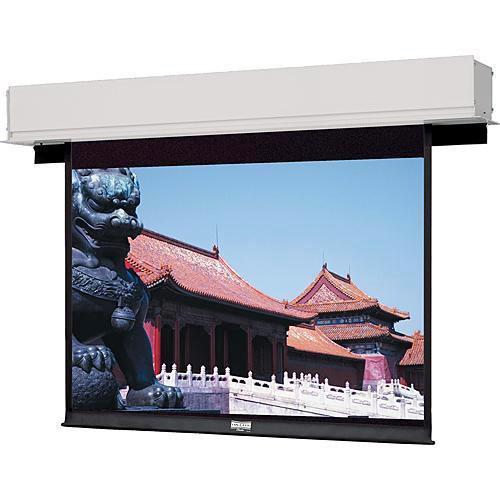

The Dalite 45 x 80" Advantage Deluxe Electrol Projection Screen is designed to have the case installed during the "rough-in" stages of construction and the fabric assembly during the finish stage. Its handsome white powder coated closure doors and case provide a clean look and allow easy installation of ceiling tiles. The Advantage Deluxe has a motorized trapdoor that opens and closes to let the fabric out.
If you own a Da-Lite electric screens (wide formats) and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Da-Lite 88147ER Advantage Deluxe Electrol Motorized 88147ER in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Da-Lite 88147ER Advantage Deluxe Electrol Motorized 88147ER:

Go To

Type
Style Advantage Deluxe Electrol
Front/Rear Projection Front
Mount Ceiling recessed
Finish Matte White - flame retardant and mildew resistant fiberglass
Tension Control Non-Tensioned
Keystone Control Not Applicable
Dimensions
Overall Size 45 x 80" (1.1 x 2 m)
Image Size 45 x 80" (1.1 x 2 m)
Diagonal 92" (2.3 m)
Format HDTV
Aspect Ratio 16:9
Masking Options Not Applicable
Controls
Voltage 220V, 50Hz European Voltage, screen motor is electrically operated

This item is ONLY wired for 220V.
Integrated Control
SCB-100 - RS-232 Serial Control Board
Two motors - one to operate door and one to operate screen
Pre-set but adjustable limit switches to automatically stop fabric door in the "up" and "down" positions
Control Options Single motor Low Voltage Control (LVC)
Built-in electrical connections will be on right end of screen case on units with built-in LVCs
Wireless Remote Control for LVC
Radio Frequency Remote
Infrared Remote
Video Projector Interface (12V or 5V)
Key Locking Cover Plate for 120V Switch or LVC
Key Operated Switch for 120V only (NOTE: Cannot be used with LVC)
220/240V (50Hz) Motor
NET-100 Ethernet-Serial Adapter
Casing
Color White
Material Rigid aluminum
Length 96.25" (2.4 m)
General
Shipping Weight 108 lbs (49.0kg)
Packaging Info
Package Weight 122.0 lb
Box Dimensions (LxWxH) 106.0 x 13.0 x 10.0"
The user manual for the Da-Lite 88147ER Advantage Deluxe Electrol Motorized 88147ER can be downloaded in .pdf format if it did not come with your new electric screens (wide formats), although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Da-Lite users keep a unique electronic library for Da-Lite electric screens (wide formats)s, where you can use our link to download the user manual for the Da-Lite 88147ER Advantage Deluxe Electrol Motorized 88147ER.

The user manual lists all of the functions of the Da-Lite 88147ER Advantage Deluxe Electrol Motorized 88147ER, all the basic and advanced features and tells you how to use the electric screens (wide formats). The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Da-Lite service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Da-Lite 88147ER Advantage Deluxe Electrol Motorized 88147ER. User manuals are also available on the Da-Lite website under A/V Presentation - Projection Screens - Electric Screens (Wide Formats).
