User manual Da-Lite 88510L Contour Electrol Motorized Projection 88510L

Operating instructions and pdf manual for use - Da-Lite 88510L Contour Electrol Motorized Projection 88510L User manual, User manual Da-Lite 88510L Contour Electrol Motorized Projection 88510L, Da-Lite, 88510L, Contour, Electrol, Motorized, Project

User manual for Da-Lite 88510L Contour Electrol Motorized Projection 88510L

Da-Lite 88510L Contour Electrol Motorized Projection 88510L
  • Manufacturer: Da-Lite
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projection Screens - Electric Screens (Square & 4:3 Formats)
  • Safety instructions
  • Startup and operation of the electric screens (square & 4:3 formats)
  • Tips for setting up your Da-Lite
  • Settings and expert assistance
  • Contact Da-Lite service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Da-Lite 88510L Contour Electrol Motorized Projection 88510L, which address similar problems with connecting and setting up Electric Screens (Square & 4:3 Formats) Da-Lite.


User manual for the Da-Lite 88510L Contour Electrol Motorized Projection 88510L

The user manual for the Da-Lite 88510L Contour Electrol Motorized Projection 88510L provides necessary instructions for the proper use of the product A/V Presentation - Projection Screens - Electric Screens (Square & 4:3 Formats).

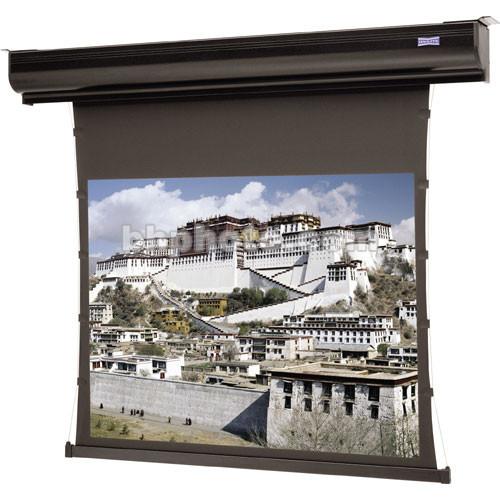

The Dalite 108 x 144" Contour Electrol Motorized Front Projection Screen makes a great addition to any school room or business boardroom. It features a strong extruded aluminum case which is available in either black, white or graphite finish. When not in use, this screen easily retracts into its case which can either be mounted on a wall or in the ceiling. The Contour Electrol is a beautiful addition to any installation.
If you own a Da-Lite electric screens (square & 4:3 formats) and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Da-Lite 88510L Contour Electrol Motorized Projection 88510L in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Da-Lite 88510L Contour Electrol Motorized Projection 88510L:
Specifications
    Type
    Style Contour Electrol
    Front/Rear Projection Front
    Mount Wall or Ceiling
    Finish Dual Vision; flame retardant and mildew resistant fiberglass
    Tension Control Tensioned
    Keystone Control Not Applicable
    Dimensions
    Overall Size Not Specified by Manufacturer
    Image Size 108 x 144" (2.7 x 3.7 m)
    Diagonal 180" (4.6 m)
    Format Video
    Aspect Ratio 4:3
    Masking Options Standard black masking borders
    Controls
    Voltage 120VAC, 60Hz
    Integrated Control
    With Low Voltage Controller


    Motor mounted inside the roller with a patented noise silencer
    Pre-set but adjustable limit switches to automatically stop picture surface in the "up" and "down" positions
    Control Options
    Three position wall switch (included)
    Single Motor Low Voltage Control (LVC) (external)
    Single Motor Low Voltage Control (LVC) - built-in (adds 3.75" to length of case)
    Wireless Remote Control for LVC; Radio Frequency Remote
    Infrared Remote
    Key Locking Switch Cover Plate for 120V Switch or LVC
    Key Operated Switch for 120V only (Note: Cannot be used with LVC)
    220 Volt (50Hz) Motor
    Anchor Speaker Option, pair with brackets
    Casing
    Color Black, textured powder coat

    White available as an option
    Material Extruded aluminum
    Length 167.75" (4.3 m)
    General
    Shipping Weight 135 lbs (61.2kg)
    Packaging Info
    Package Weight 134.0 lb
    Box Dimensions (LxWxH) 178.0 x 13.0 x 10.0"
    The user manual for the Da-Lite 88510L Contour Electrol Motorized Projection 88510L can be downloaded in .pdf format if it did not come with your new electric screens (square & 4:3 formats), although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Da-Lite users keep a unique electronic library for Da-Lite electric screens (square & 4:3 formats)s, where you can use our link to download the user manual for the Da-Lite 88510L Contour Electrol Motorized Projection 88510L.

    The user manual lists all of the functions of the Da-Lite 88510L Contour Electrol Motorized Projection 88510L, all the basic and advanced features and tells you how to use the electric screens (square & 4:3 formats). The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Da-Lite service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Da-Lite 88510L Contour Electrol Motorized Projection 88510L. User manuals are also available on the Da-Lite website under A/V Presentation - Projection Screens - Electric Screens (Square & 4:3 Formats).
