User manual Da-Lite Yorkshire 32" Floor Lectern 75949NWVBS

Operating instructions and pdf manual for use - Da-Lite Yorkshire 32" Floor Lectern 75949NWVBS User manual, User manual Da-Lite Yorkshire 32" Floor Lectern 75949NWVBS, Da-Lite, Yorkshire, 32, Floor, Lectern, 75949NWVBS,


User manual for Da-Lite Yorkshire 32" Floor Lectern 75949NWVBS

Da-Lite Yorkshire 32
  • Manufacturer: Da-Lite
  • Basic description and contents of package
  • Product classification: A/V Presentation - Lecterns, Podiums & Timers - Lecterns & Podiums
  • Safety instructions
  • Startup and operation of the lecterns & podiums
  • Tips for setting up your Da-Lite
  • Settings and expert assistance
  • Contact Da-Lite service
  • Troubleshooting
  • Warranty information
Da-Lite Yorkshire 32 Da-Lite Yorkshire 32 Da-Lite Yorkshire 32 Da-Lite Yorkshire 32 Da-Lite Yorkshire 32 Da-Lite Yorkshire 32 Da-Lite Yorkshire 32
Click to enlarge image

We recommend checking out our discussion threads on the Da-Lite Yorkshire 32" Floor Lectern 75949NWVBS, which address similar problems with connecting and setting up Lecterns & Podiums Da-Lite.



User manual for the Da-Lite Yorkshire 32" Floor Lectern 75949NWVBS

The user manual for the Da-Lite Yorkshire 32" Floor Lectern 75949NWVBS provides necessary instructions for the proper use of the product A/V Presentation - Lecterns, Podiums & Timers - Lecterns & Podiums.

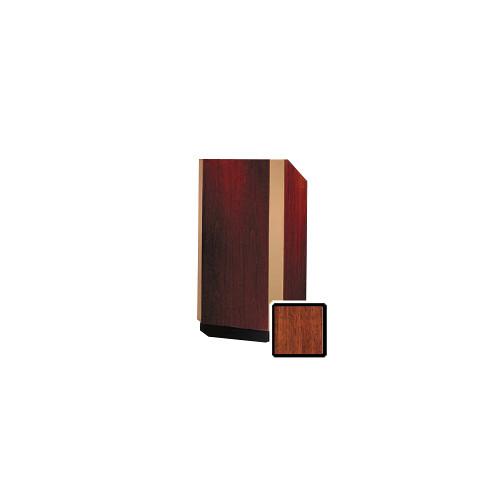

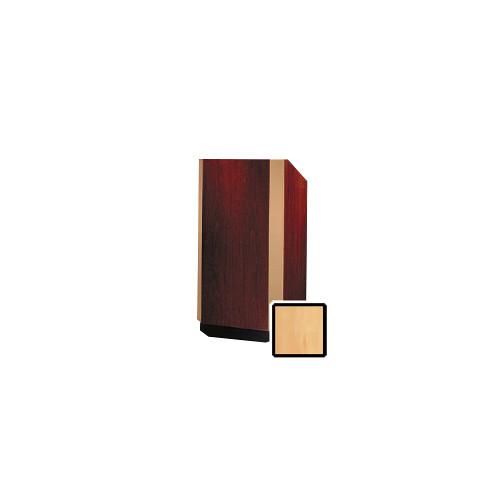

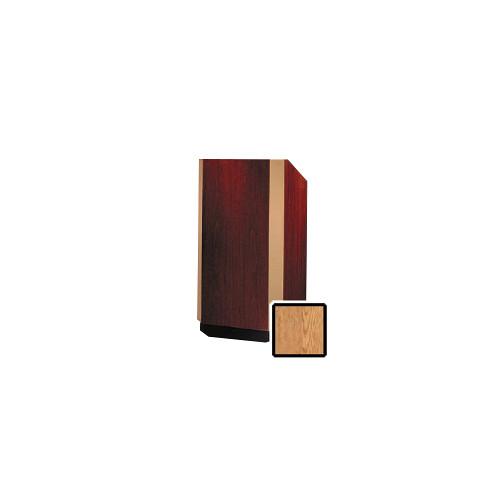

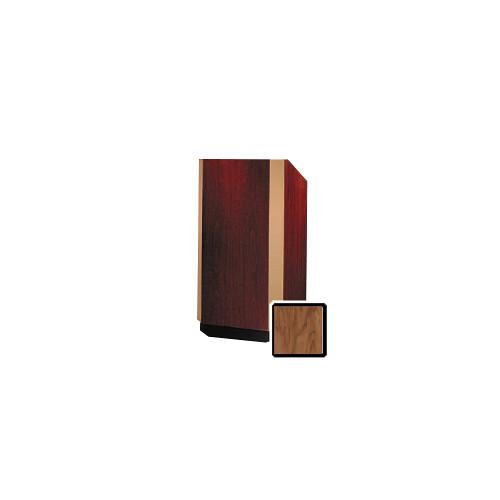

The Da-Lite Yorkshire 32" Floor Lectern with Electric Height Adjustment and Gooseneck Microphone features a natural walnut veneer, brass trim running down the front edges, and built-in sound system. The unit's electrically operated height ranges from 47 to 55" to accommodate the height of the speaker. The large reading surface will hold a 3-ring binder, and a rear storage shelf provides space for collateral material.
If you own a Da-Lite lecterns & podiums and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Da-Lite Yorkshire 32" Floor Lectern 75949NWVBS in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Da-Lite Yorkshire 32" Floor Lectern 75949NWVBS:
Construction Wood
Rectilinear design
Finish Natural walnut veneer
Brass trim
Adjustments Height: 47 to 55" (119 to 140 cm)
Sound System AmpliVox amp
Rated Power Output: 70 watts continuous
Max SPL @ Rated Power: 107 dB @ 1 meter
Frequency Response: 65 Hz - 15 kHz, +/- 3dB
Microphone Dynamic gooseneck
Speaker One; 70 W @ 4 ohms, switched, 1/4" phone
6.5" (16.5 cm) woofer
High-output tweeter
Connectors Two 110-125 VAC, 50/60 Hz outlets
Lectern Mic Input: Lo-Z, balanced, phantom power, XLR
Auxiliary Mic Input: Lo-Z, balanced, phantom power, XLR
Line Input: Hi-Z, unbalanced, 1/4" phone
Line Sensitivity for Rated Output (Mic): -52 dBV (2.5 mVrms)
Line Sensitivity for Rated Output (Line): -14 dBV (200 mVrms)
Mic Output (Post Fader): Lo-Z, transformer balanced, XLR
Line Output (Post Fader): Buffer isolated, 1/4" jack on amp housing
Two aux speaker outputs (ext "A" and "B" with 1/4" jacks)
Electrical Components High-intensity reading light
LED clock/timer with countdown function
Controls Electric height adjustment
Switch for lamp on/off
Speaker on/off
Mic volume
Bass/treble
Clock/timer settings
Casters Two; non-lockable
Power Requirements 115-125 VAC, 60 Hz
Includes 12' (4 m) power cord suitable for a North American outlet
Power Consumption Not specified
Shelf 9.5 x 29.5 x 19.0" (24.0 x 75.0 x 48.0 cm)
Reading Surface 29.5 x 15.5" (75.0 x 39.0 cm)
Dimensions 47.0 x 32.0 x 22.0" (119 x 81 x 56 cm)
Weight 193 lb (88 kg, approx)
Packaging Info
Package Weight 231.0 lb
Box Dimensions (LxWxH) 58.0 x 38.0 x 28.0"
The user manual for the Da-Lite Yorkshire 32" Floor Lectern 75949NWVBS can be downloaded in .pdf format if it did not come with your new lecterns & podiums, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Da-Lite users keep a unique electronic library for Da-Lite lecterns & podiumss, where you can use our link to download the user manual for the Da-Lite Yorkshire 32" Floor Lectern 75949NWVBS.

The user manual lists all of the functions of the Da-Lite Yorkshire 32" Floor Lectern 75949NWVBS, all the basic and advanced features and tells you how to use the lecterns & podiums. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Da-Lite service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Da-Lite Yorkshire 32" Floor Lectern 75949NWVBS. User manuals are also available on the Da-Lite website under A/V Presentation - Lecterns, Podiums & Timers - Lecterns & Podiums.
