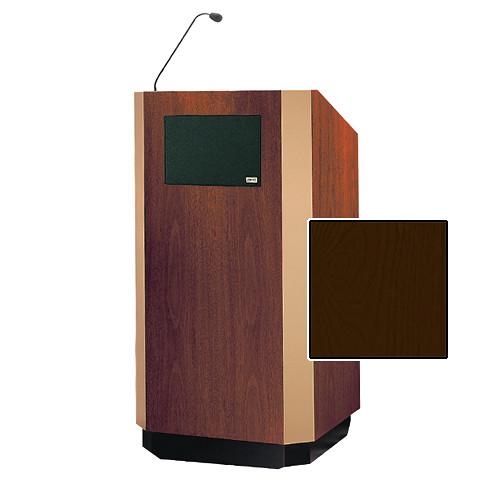

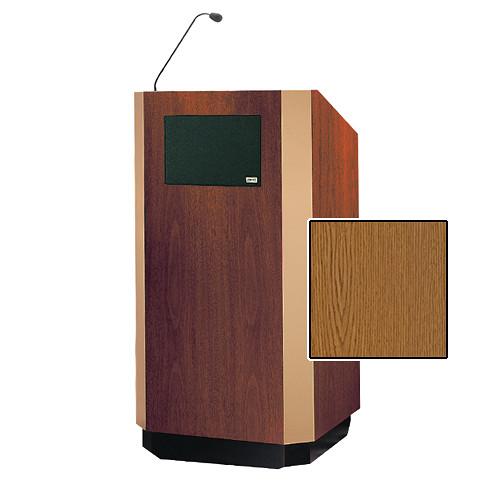

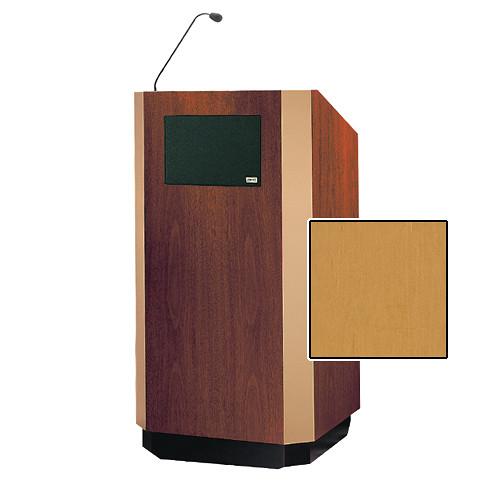

The Da-Lite Yorkshire Special Needs Adjustable Floor Lectern with Microphone and Premium Sound System is a 42 x 30 x 38-46" floor lectern that comes with a microphone and premium sound system that provides 100W of RMS power. It has an LED digital clock/timer with countdown capability. All the controls have Braille identification, and it has an over-size reading surface that holds a three ring binder. Heavy duty industrial casters provide easy mobility. The height can be adjusted by using the electric height adjustment switch. This lectern is for 220V electrical systems only. The microphone has an electret-type, unidirectional element that offers miniature size and super sensitivity. It features a built-in pre amp, a slim and flexible gooseneck, and a male XLR connector to plug directly into the microphone input jack on the lectern.
If you own a Da-Lite lecterns & podiums and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Da-Lite Yorkshire Special Needs Adjustable Floor 76426EHWVBZ in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Da-Lite Yorkshire Special Needs Adjustable Floor 76426EHWVBZ:
Specifications
Inputs/Outputs
Inputs: XLR jack, 1/4" phone jack Outputs: 2 x 1/4" phone jacks
Sound System
Rated Power Output: 100 W RMS @ 8 ohm Max SPL @ Rated Power: 107 dB @ 1 m Frequency Response: 65 Hz - 15 kHz Speaker Type: 6.5" (16.51 cm) woofer, high-output tweeter Lectern Mic Input: Lo-Z, balanced, phantom power. XLR Auxiliary Mic Input: Lo-Z, balanced, phantom power, XLR Line Input: Hi-Z, unbalanced, 1/4" phone Sensitivity for Rated Output Microphone: -52 dBV (2.5 mV rms) Line: -14 dB V (200 mV rms) Mic Output (Post Fader): Lo-Z, transformer balanced, XLR Line Output (Post Fader): buffer isolated, 1/4" phone Speaker Output: 120 W @ 8 ohm, switched, 1/4" phone AC Power Requirements: 110-125 VAC, 50/60 Hz (40 VAC nominal, 120 VAC max 210-240 VAC, 50/60 Hz
Microphone
Microphone Element Type: Electret condenser (requires phantom power) Polar Pattern: Unidirectional, cardioid Frequency Response: 50-18,000 Hz Output Level @ 1000 Hz: -70 +/- 3 dB (0.32 mV) (0 dB = 1 V/microbar) Front-to-Back Ratio: 20 dB Output Impedance: 600 ohm (balanced) Operating Voltage: 9-52 VDC phantom Current Drain: 2.0 ma typical Maximum SPL: 130 dB (1% THD, open circuit) Signal-to-Noise Ratio: Greater than 40 dB @ 1 microbar Connector: XLR male Windscreen: Black urethane foam Dimensions: 24 x 0.5" (61 x 13 cm) Weight: 6.5 oz (0.18 kg)
Power
220 V
Dimensions
42 x 30 x 38-46" (107 x 76 x 97-117 cm)
