User manual for the Datavideo HD & SD 4.3" TFT LCD Monitor Bank TLM-434H

The user manual for the Datavideo HD & SD 4.3" TFT LCD Monitor Bank TLM-434H provides necessary instructions for the proper use of the product Professional Video - Monitors - Production Monitors.

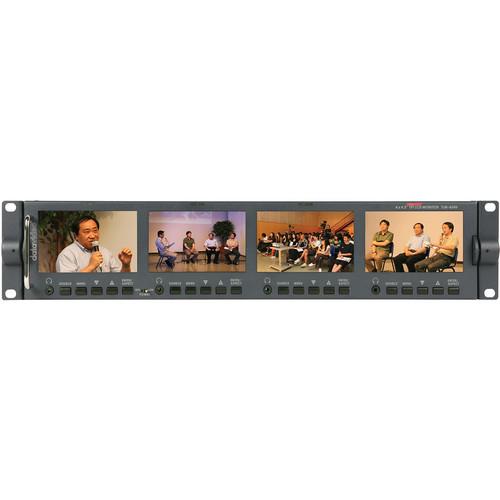

The Datavideo HD & SD 4.3” TFT LCD Monitor Bank (4 Displays) delivers a resolution of RGB 480 x 272 pixels per display, and is suitable for switchers, OB Van, studio applications, etc. Each monitor features image adjustment capabilities that allow you to adjust contrast, brightness, and color saturation. Additionally, the LED tally light indicates the active status of the monitor.

With a 19” (48.26 cm) rack mountable design, the LCD Monitor Bank features a robust steel and aluminum design. Additionally, the LCD Monitor Bank allows you to adjust the tilt up to 90° for perfect integration. It is compatible with HD-SDI, SD-SDI, and HDMI inputs, and supports embedded audio on both SDI & HDMI, with superimposed on-screen audio and time code indicator. All the 4 SDI inputs include a seamless bypass to ensure enhanced compatibility with switchers.

The LCD Monitor Bank incorporates an audio peak meter that indicates the instantaneous level of an audio signal. Blue Only function aids in calibration and to keep a check on noise. With color temperature adjustment, you can fine-tune the white balance setting of the displays.
If you own a Datavideo production monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Datavideo HD & SD 4.3" TFT LCD Monitor Bank TLM-434H in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Datavideo HD & SD 4.3Download user manual for Datavideo HD & SD 4.3" TFT LCD Monitor Bank TLM-434H
(PDF file, 0.73 MB)
Additional parameters of the Datavideo HD & SD 4.3" TFT LCD Monitor Bank TLM-434H:
LCD Display 4 x 4.3" (10.92 cm) TFT LCD
Resolution RGB 480 x 272 pixel
Aspect Ratio 16:9, 4:3
Brightness 500 cd/m²
Contrast Ratio 300
View Angle Top: 40° / Bottom: 60°
Left: 60° / Right: 60°
When using available 2U 19" rack mount this product can support the following adjustable view angle (Tilt 45° viewing angle)
Input HD-SDI, SD-SDI, and HDMI
Video System NTSC/PAL auto recognition
Color Adjustment Brightness, contrast, color saturation
Tally Indication 1 per monitor
Indicators 15-pin tally indicator,
Time code indicator
Rack Mount 19" (48.26 cm) rack mountable
Tilt 90°
Design Robust steel and aluminum
Operating Conditions Operation temperature from 32 to 122° F (0 to 50° C),
RH less than 90%
Power Consumption 12 VDC, 3 A
Weight 3.48 lb (1.58 kg)
Packaging Info
Package Weight 4.9 lb
Box Dimensions (LxWxH) 20.7 x 7.1 x 5.4"
The user manual for the Datavideo HD & SD 4.3" TFT LCD Monitor Bank TLM-434H can be downloaded in .pdf format if it did not come with your new production monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Datavideo users keep a unique electronic library for Datavideo production monitorss, where you can use our link to download the user manual for the Datavideo HD & SD 4.3" TFT LCD Monitor Bank TLM-434H.
