User manual for the Datavideo TLM-700HD-S2 7" LCD Monitor TLM-700HD-S2

The user manual for the Datavideo TLM-700HD-S2 7" LCD Monitor TLM-700HD-S2 provides necessary instructions for the proper use of the product Professional Video - Monitors - On Camera Monitors.

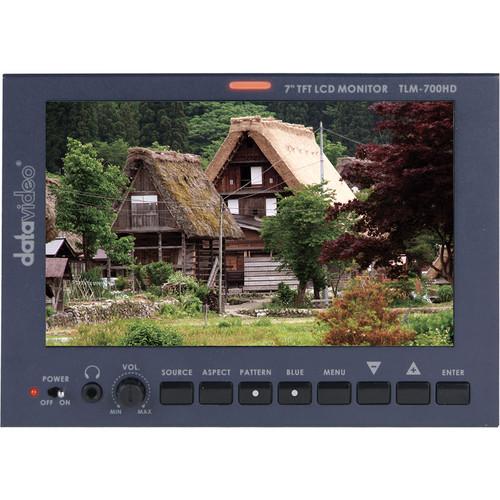

The Datavideo TLM-700HD-S2 7" LCD Monitor with S7000F Sony Battery Mount features a 7” wide screen TFT panel, NTSC/PAL support, and LED life of 20,000 hours, and produces high-quality images at a resolution of 800x480. It offers a contrast ratio of 500:1 and a brightness rating of 300 cd/m². A wide viewing angle of 60/-40° (V) x ±60° (H) ensures that you can view images clearly from any corner of the room or when the display is mounted at a height.

Featured ratio settings allow for switching between 16:9, 4:3, and 15:9 aspect ratios. The Blue only feature switches off red and green scan guns to produce an image made only from a blue scan gun. With the time code mode, you can view the time code on the screen. In addition, the unit supports VITC (vertical interval time code) type of time code. Featured dual color tally system indicates different program statuses.

Equipped with an integrated color bar, the TLM-700HD-S2 LCD monitor enables precise and accurate screen calibration. Multi-language OSD (On-screen Display) offers intuitive and convenient interface for adjusting settings such as contrast, brightness, color, and tint (NTSC only).

The TLM-700HD-S2 LCD monitor supports connections such as HD (high definition), SD-SDI (serial digital interface), HD/SD YUV, and HDMI/Composite Video input, thereby offering all-round connectivity. With a rugged metal design, the LCD monitor is suitable for HD/SD applications such as outdoors in field and production studios.

The S7000F Sony battery mount is compatible with SWIT S-8972, S-8970, S-8770, and Sony BP-U60/BP-U30 DV batteries. In addition, the battery mount features open end DC wires in the back to connect with the equipment.
If you own a Datavideo on camera monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Datavideo TLM-700HD-S2 7" LCD Monitor TLM-700HD-S2 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Datavideo TLM-700HD-S2 7Download user manual for Datavideo TLM-700HD-S2 7" LCD Monitor TLM-700HD-S2
(PDF file, 0.72 MB)
Additional parameters of the Datavideo TLM-700HD-S2 7" LCD Monitor TLM-700HD-S2:
Specifications
    Interface 1x HD/SD-SDI input (SMPTE 272M-C 1.5Gbps, 270Mbps with Embedded Audio)
    1x Component Y.U.V Sony Betacam Spec
    1x CV input
    1x HDMI input
    1x D-Sub 15 Pin Plug (Tally Light Signal)
    Resolution 800x480
    Contrast Ratio 500:1
    Brightness 300 cd/m²
    Viewing Angle 60/-40° (V) x ±60° (H)
    Operating Temperature 32 to 102°F (0 to 40°C)
    Humidity 10 to 90% (non-condensing)
    Firmware SVN 1.6
    Dimensions 7.36 x 5.19 x 2.83" (187 x 132 x 72 mm)
    Weight 2.64lb (1.2kg)
    Power DC 12V / 1.5A
    Packaging Info
    Package Weight 3.35 lb
    Box Dimensions (LxWxH) 11.3 x 9.6 x 4.6"
    The user manual for the Datavideo TLM-700HD-S2 7" LCD Monitor TLM-700HD-S2 can be downloaded in .pdf format if it did not come with your new on camera monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Datavideo users keep a unique electronic library for Datavideo on camera monitorss, where you can use our link to download the user manual for the Datavideo TLM-700HD-S2 7" LCD Monitor TLM-700HD-S2.
