User manual Datavideo VSM100 Vectorscope / Waveform Monitor with 2 VSM100

Operating instructions and pdf manual for use - Datavideo VSM100 Vectorscope / Waveform Monitor with 2 VSM100 User manual, User manual Datavideo VSM100 Vectorscope / Waveform Monitor with 2 VSM100, Datavideo, VSM100, Vectorscope, /, Waveform, Monit


User manual for Datavideo VSM100 Vectorscope / Waveform Monitor with 2 VSM100

Datavideo VSM100 Vectorscope / Waveform Monitor with 2 VSM100
  • Manufacturer: Datavideo
  • Basic description and contents of package
  • Product classification: Professional Video - Signal Processing & Distribution - Waveform Monitors & Scopes
  • Safety instructions
  • Startup and operation of the waveform monitors & scopes
  • Tips for setting up your Datavideo
  • Settings and expert assistance
  • Contact Datavideo service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Datavideo VSM100 Vectorscope / Waveform Monitor with 2 VSM100, which address similar problems with connecting and setting up Waveform Monitors & Scopes Datavideo.



User manual for the Datavideo VSM100 Vectorscope / Waveform Monitor with 2 VSM100

The user manual for the Datavideo VSM100 Vectorscope / Waveform Monitor with 2 VSM100 provides necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Waveform Monitors & Scopes.

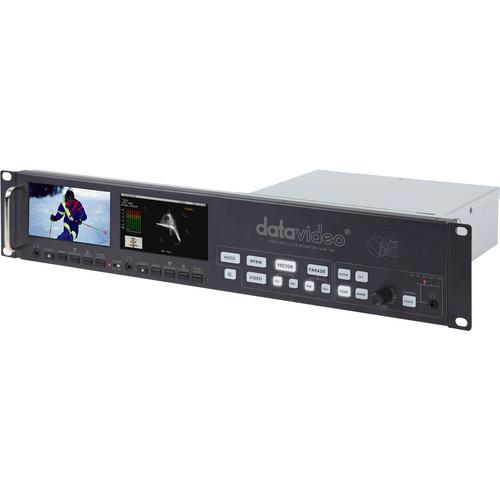

The Datavideo VSM100 Vectorscope Monitor with 2 Screens is a sophisticated system that allow users to easily ensure the stability of incoming video signals and recorded video quality from a connected recorder and cameras through two 4.3" monitors to display and monitor high-quality images. When equipped with sampling vector scope, it can accurately assist camera calibration, ensure precise B&W Balance calibration, support color saturation, and enable luminance adjustment.
If you own a Datavideo waveform monitors & scopes and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Datavideo VSM100 Vectorscope / Waveform Monitor with 2 VSM100 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Datavideo VSM100 Vectorscope / Waveform Monitor with 2 VSM100:
Specifications
    Monitor
    LCD Display 4.3" (109.2 mm) TFT LCD x 2
    Resolution RGB: 480 x 272
    Aspect Ratio 4:3 and 16:9 selectable
    Brightness 500 cd/m²
    Contrast Ratio 300:1
    Viewing Angle Monitor Panel
    Top: 50˚ / Bottom: 70˚
    Left: 70˚ / Right: 70˚

    2U 19'' rack mount can support adjustable view angle (Tilt 45˚ viewing angle).

    Video Input HD-SDI / SD-SDI / HDMI
    Supported Formats HDMI RGB: 720 x 576i x 50 Hz, 720 x 480i x 60 Hz, 1280 x 720p x 50 Hz, 1280 x 720p x 60 Hz, 1920 x 1080i x 50 Hz, 1920 x 1080i x 60 Hz
    SDI: 720 x 576i / 50 Hz, 720 x 480i / 60 Hz, 1280 x 720p / 60 Hz, 1280 x 720p / 50 Hz, 1920 x 1080i / 50 Hz, 1920 x 1080i / 60 Hz
    Video System NTSC/PAL auto recognition
    Vectorscope Display
    Interface 1 x SDI/HD-SDI input (HD-SDI SMPTE 292M 1.5 Gb/s, SD-SDI SMPTE 259M-C 270 Mb/s with Embedded Audio)
    1 x SDI/HD-SDI Loop through output
    1 x HDMI Output
    HD/SD-SDI SMPTE 259M-C (270 Mb/s - 525/625 Component Video) and SMPTE 292M (1.485/1.001 Gb/s) Connector BNC (IEC 169-8)
    Impedance: 75 Ω
    Return Loss: HD > 10 dB (1.5 GHz); SD > 15 dB (270 MHz) Equalization: 656.1' (200.0 m) Belden 8281 cable at 270 Mb/s; 328.0' (100.0 m) (typical) of Belden 1694A at 1.485 Gb/s
    HDMI Supports HDMI v1.1
    Input Formats HD-SDI: 1080i50 / 1080i59.97 / 1080i60 / 1080p30 / 720p29.97 / 720p30 / 720p50 / 720p59.97 / 720p60
    SD-SDI: 576i / 480i
    Modes Waveform monitor / Vectorscope / Parade / Histogram / Video input display / input in thumbnail format / 8-Channel audio meter
    Acquisition Modes Single field / Whole frame
    Waveform Monitor and Vectorscopes Time zoom / Delay / Non-volatile display storage and recall / Sampling Bandwidth
    75% color bar scale / 100% color bar scale / Non-volatile display storage and recall
    Parade Display format: RGB / YCbCr / Non-volatile display storage and recall
    Inputs HD, SD-SDI / RS-232 (firmware upgrade)
    Outputs HD, SD-SDI can be setup as input loop-through as well as Instrument output
    HD, SD-HDMI

    External terminal must support 720p50, 720p60, and 720p59.5.

    Firmware Upgrade Through USB
    General
    Power Consumption 12 V, 19 W
    Temperature 41 to 122°F (5 to 50°C)
    Humidity 10 to 90% (non condensing)
    Dimensions (W x H x D) 19.0 x 3.4 x 8.7" (482.7 x 88.5 x 221.2 mm)
    Packaging Info
    Package Weight 6.9 lb
    Box Dimensions (LxWxH) 21.6 x 11.4 x 7.8"
    Datavideo Waveform / Vectorscope Monitors
    The user manual for the Datavideo VSM100 Vectorscope / Waveform Monitor with 2 VSM100 can be downloaded in .pdf format if it did not come with your new waveform monitors & scopes, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Datavideo users keep a unique electronic library for Datavideo waveform monitors & scopess, where you can use our link to download the user manual for the Datavideo VSM100 Vectorscope / Waveform Monitor with 2 VSM100.

    The user manual lists all of the functions of the Datavideo VSM100 Vectorscope / Waveform Monitor with 2 VSM100, all the basic and advanced features and tells you how to use the waveform monitors & scopes. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Datavideo service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Datavideo VSM100 Vectorscope / Waveform Monitor with 2 VSM100. User manuals are also available on the Datavideo website under Professional Video - Signal Processing & Distribution - Waveform Monitors & Scopes.
