User manual for the dB Technologies DVA T12 12" x 6.5" x 1" DVA-T12
The user manual for the dB Technologies DVA T12 12" x 6.5" x 1" DVA-T12 provides
necessary instructions for the proper use of the product Pro Audio - Live Sound - PA Speakers.

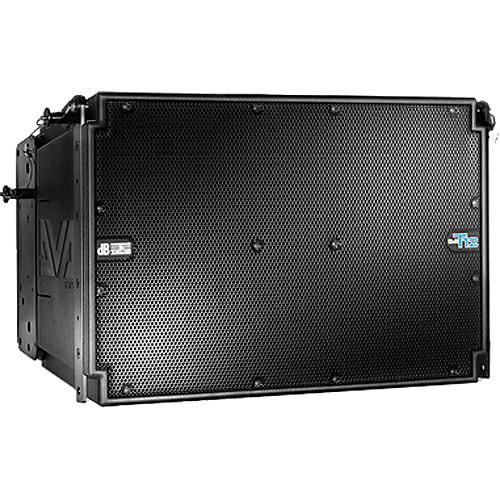

The DVA T12 Active Line Array Module from dB Technologies features neodymium speakers and high-performance digital amps with a total of 1,410W output power. In combination with DSP and quality AD-DA converters, it delivers high-quality sound with high SPL for large sound reinforcement applications.
A band-passed 12" neodymium woofer covers the low frequency range. It packs an assertive punch that reaches down to 60 Hz to enable full-range applications. The 12" woofer is slanted inside the housing, giving the cabinet a lean, unobtrusive look.
The DVA T12's two 6.5" neodymium midrange drivers are placed close together to maximize coherent coupling and response for critical midrange frequencies. The speaker resides in a sealed basket to optimize the displacement volume. This makes the midrange even more responsive. With a high BL factor, it reacts far faster to transients and renders each attack with accuracy. Both 6.5" midrange drivers are equipped with an optimized phase plug and feed into a front loaded horn to achieve a uniform coverage pattern.
The 1" neodymium HF drivers feature 1.4" Mylar diaphragms. Light and responsive, they deliver richly detailed signals with remarkably linear frequency response. Especially developed for use in line arrays, these compact drivers may be deployed in very close proximity to one another. This is essential to minimize interference in such arrays. The DVA T12 is loaded with three HF drivers tuned specifically for the custom designed array horn. This combination maximizes the coupling of the drivers' outputs and extends the range of the HF signal.
If you own a dB Technologies pa speakers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the dB Technologies DVA T12 12" x 6.5" x 1" DVA-T12 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the dB Technologies DVA T12 12" x 6.5" x 1" DVA-T12:
Specifications
Speaker Type
3-way active line array module
Frequency Response
60 - 19,000 Hz
Max SPL Level
One Unit: 136 dB
Driver
HF: 3 x 1" Voice coil HF: 1.4" Directivity: 100 x 10° single unit Horn: integrated CD horn MF: 2 x 6.5" Type MF: Neodymium sealed basket phase plug horn loaded Voice coil MF: 2" LF: 12" Type LF: Neodymium Voice coil LF: 3"
Amplification
Amp technology: Digipro G2 Amp class: Class D HF amp: 350 W RMS MF amp: 350 W RMS LF amp: 710 W RMS Cooling: convection
Controller
DSP 56 bit
Converter
DSP 24-bit / 96 kHz
Presets
8, HF/low-mid correction
Limiter
Dual active limiter multiband RMS, peak, thermal
Crossover
Crossover frequency MF-HF: 1800 Hz Slope MF-HF: 24 dB/octave Crossover frequency LF-MF: 420 Hz Slope LF-MF: 24 dB/octave
Input
Signal input: 1x XLR fem, bal. Signal output: 1x XLR male, bal. Network: RDnet remote control RJ45 connector IN/OUT Power socket: 1x Powercon in 1x Powercon out Voltage range: 90 - 240 V
