User manual for the dB Technologies DVA T8 8" x 6.5" x 1" 700 DVA-T8
The user manual for the dB Technologies DVA T8 8" x 6.5" x 1" 700 DVA-T8 provides
necessary instructions for the proper use of the product Pro Audio - Live Sound - PA Speakers.

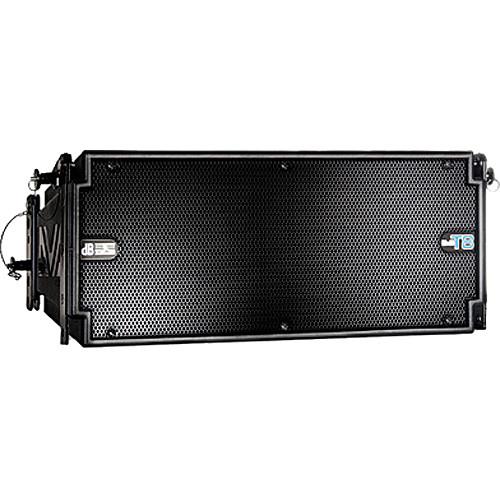

The DVA T8 from dB Technologies is an active line array module with neodymium woofers that features a high-performance digital power amp with 700W/RMS total output, 56-bit DSP, and premium-quality AD-DA converters. Lightweight at 14.2 kg, this line array's is designed for powerful performance despite its small footprint.
The DVA T8 boasts constant directivity horns, HF drivers, and midrange woofers optimized to deliver a uniform 100°-by-15° coverage pattern. It makes use of two acoustical effects to help distribute SPL evenly. One is the vector addition of individual horns' output; the other is cylindrical wave formation. These two effects come together to create a uniform coverage pattern that is easily adapted to different venues by varying the length of the array and adjusting the splay between individual components.
The 1" neodymium HF drivers feature 1.4" Mylar diaphragms. Light and responsive, they deliver detailed signals with linear frequency response. Developed especially for use in line arrays, these drivers may be deployed in very close proximity to one another. This is helps to minimize interference in such arrays.
Loaded with a custom 6.5" neodymium midrange driver, the DVA T8 also delivers accurate midrange response. The midrange driver is housed in a sealed chassis. Its high BL factor makes it more responsive so that it renders transients faithfully. A phase plug feeds into a front loaded horn tuned to achieve a uniform coverage pattern.
A powerful 8" neodymium woofer, paired with a 350W power amp, covers the low frequency range with a response that reaches down to 70 Hz.
If you own a dB Technologies pa speakers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the dB Technologies DVA T8 8" x 6.5" x 1" 700 DVA-T8 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the dB Technologies DVA T8 8" x 6.5" x 1" 700 DVA-T8:
Specifications
Speaker Type
3-way active line array module
Frequency Response
66 - 18,000 Hz
Max SPL Level
One Unit: 132 dB
Driver
HF: 2 x 1" Voice Coil HF: 1.4" Directivity: 100 x 15° single unit Horn: Integrated CD horn MF: 1 x 6.5" Type MF: Neodymium sealed basket phase plug horn loaded Voice Coil MF: 2" LF: 8" Voice Coil LF: 2.5"
Amplification
Amp Technology: Digipro G2 Amp Class: Class D HF Amp: 175 W RMS MF Amp: 175 W RMS LF Amp: 350 W RMS Cooling: Convection
Controller
DSP 56 bit with double precision filters
Converter
DSP 24-bit / 96 kHz
Presets
9, (8 x HF and low-mid correction)
Limiter
Dual active limiter multiband RMS, peak, thermal
Crossover
Crossover Frequency MF-HF: 1900 Hz Slope MF-HF: 24 dB/octave Crossover Frequency LF-MF: 400 Hz Slope LF-MF: 24 dB/octave
Input
Signal Input: 1x XLR fem, bal. Signal Output: 1x XLR male, bal. Network: RDnet remote control RJ45 connector IN/OUT Power Socket: 1x Powercon in 1x Powercon out Voltage Range: 90 - 240 V
Housing
Housing: Polypropylen PP Metal reinforced Housing Design: Trapezoidal 15°
Weatherproof
Rain cover included
Rigging Points
Integrated rigging hardware
Dimensions
23.2 x 9.6 x 13.08" (580 x 240 x 327 mm)
Weight
31.3 lb (14.2 kg)
