User manual for the dbx 223xs - Crossover (XLR) DBX223XSV

The user manual for the dbx 223xs - Crossover (XLR) DBX223XSV provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Crossovers.

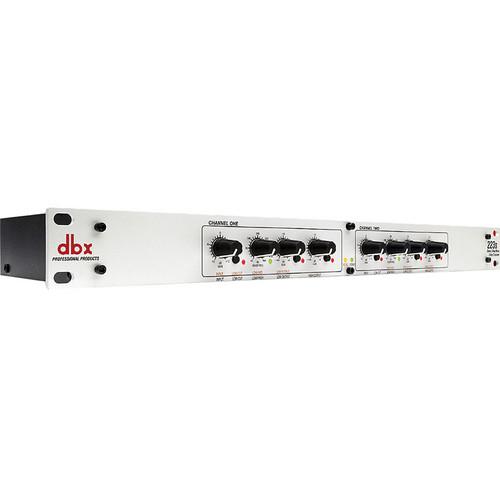

The 223s from dbx is a dual channel, stereo 2-way or mono 3-way crossover. A crossover is essential for efficient PA operation because it filters the full band input signal into specific frequencies that match a speaker's optimum frequency-reproduction range. This leaves the amplifier free to use its full power on the usable signal, eliminating distortion and delivering clear sound.
If you own a dbx crossovers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the dbx 223xs - Crossover (XLR) DBX223XSV in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for dbx  223xs - Crossover (XLR) DBX223XSVDownload user manual for dbx 223xs - Crossover (XLR) DBX223XSV
(PDF file, 2.43 MB)
Additional parameters of the dbx 223xs - Crossover (XLR) DBX223XSV:
Specifications
Filter Type Linkwitz-Riley, 24 dB/octave, state-variable
Operating Modes Stereo 2-way, switchable to mono 3-way
Crossover Frequencies Stereo Mode - Low/High: 45 to 960Hz or 450Hz to 9.6kHz (x10 setting)
Mono Mode - Low/Mid: 45 to 960Hz or 450Hz to 9.6kHz (x10 setting)
Mono Mode - Mid/High: 45 to 960Hz or 450Hz to 9.6kHz (x10 setting)
Inputs 2 x XLR (pin 2 hot)

Electronically balanced/unbalanced, RF filtered

Input Impedance 50kΩ balanced, 25kΩ unbalanced
Maximum Input Level >+22dBu balanced or unbalanced
Outputs 4 x XLR (pin 2 hot)

Electronically balanced/unbalanced, RF filtered

Output Impedance 60Ω balanced, 30Ω unbalanced
Maximum Output Level >+20dBu balanced/unbalanced into 600Ω or greater
Frequency Response FR: <3hz to>90kHz, +0/-3.0dB
Bandwidth: 20Hz to 20kHz, +0/-0.5dB
Dynamic Range >106dB unweighted, any output
Noise SNR ref: +4dBu, 22kHz measurement bandwidth
Stereo Mode:
>94dB (low output)
>91dB (high output)
Mono Mode:
>94dB (low output)
>93dB (mid output)
>91dB (high output)
THD + N <0.004% @ +4dBu, 1kHz
<0.04% @ +20dBu, 1kHz
Crosstalk <-80dB, 20Hz to 20kHz
CMRR >40dB, typically >55dB @ 1kHz
Switches Low Cut (front panel)
Phase Invert (front panel)
x10 (rear panel)
Mode
LF sum
Indicators Stereo Operation
Mono Operation
Low Cut
x10
Phase Invert
Operating Temperature 32°F to 113°F (0°C to 45°C)
Power Requirements 100VAC~50/60Hz, 120VAC~60Hz
15W power consumption
Dimensions (WxHxD) 19 x 6.9 x 1.75" (483 x 175 x 45mm)
Weight 3.7 lb (1.7kg)
Packaging Info
Package Weight 6.75 lb
Box Dimensions (LxWxH) 21.9 x 11.3 x 2.6"
The user manual for the dbx 223xs - Crossover (XLR) DBX223XSV can be downloaded in .pdf format if it did not come with your new crossovers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other dbx users keep a unique electronic library for dbx crossoverss, where you can use our link to download the user manual for the dbx 223xs - Crossover (XLR) DBX223XSV.

The user manual lists all of the functions of the dbx 223xs - Crossover (XLR) DBX223XSV, all the basic and advanced features and tells you how to use the crossovers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from dbx service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the dbx 223xs - Crossover (XLR) DBX223XSV. User manuals are also available on the dbx website under Pro Audio - Live Sound - Crossovers.
