User manual DECIMATOR DECIMATOR 2 3G/HD/SD-SDI to HDMI Converter DD-DEC-2

Operating instructions and pdf manual for use - DECIMATOR DECIMATOR 2 3G/HD/SD-SDI to HDMI Converter DD-DEC-2 User manual, User manual DECIMATOR DECIMATOR 2 3G/HD/SD-SDI to HDMI Converter DD-DEC-2, DECIMATOR, DECIMATOR, 2, 3G/HD/SD-SDI, to, HDMI, C


User manual for DECIMATOR DECIMATOR 2 3G/HD/SD-SDI to HDMI Converter DD-DEC-2

DECIMATOR DECIMATOR 2 3G/HD/SD-SDI to HDMI Converter DD-DEC-2
  • Basic description and contents of package
  • Product classification: Professional Video - Signal Processing & Distribution - Signal Converters
  • Safety instructions
  • Startup and operation of the signal converters
  • Tips for setting up your
  • Settings and expert assistance
  • Contact service
  • Troubleshooting
  • Warranty information
  • Price: 345 USD
We recommend checking out our discussion threads on the DECIMATOR DECIMATOR 2 3G/HD/SD-SDI to HDMI Converter DD-DEC-2, which address similar problems with connecting and setting up Signal Converters .



User manual for the DECIMATOR DECIMATOR 2 3G/HD/SD-SDI to HDMI Converter DD-DEC-2

The user manual for the DECIMATOR DECIMATOR 2 3G/HD/SD-SDI to HDMI Converter DD-DEC-2 provides necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Signal Converters.

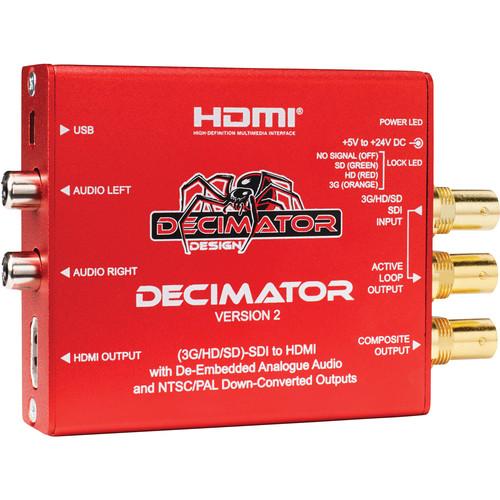

Delivering more than just a basic SDI to HDMI converter, the DECIMATOR 2 3G/HD/SD-SDI to HDMI Converter with Built-In NTSC/PAL Downscaler & Analog Audio Outputs from DECIMATOR provides you with a host of features in a small package suitable for location or a studio environment. The device auto detects the incoming signal, and handles signal switching based on the DIP switch settings you select. The converter maintains a 10-bit data path for your video signal, which minimizes scaling artifacts. It incorporates one SDI input that supports signals up to 3G-SDI, and features a loop through SDI output, HDMI output for the converted signal, and a composite out that automatically scales HD signals delivering either NTSC or PAL video.

The unit passes closed captioning signals on the composite output, a useful feature for a broadcast facility. The HDMI output can display selectable frame markers or "Graticules" as well as up to 16 channels of audio meters. The unit also de-embeds the audio from the SDI stream, and makes it available as 2 channels of analog audio. External DIP switches allow you to select how the unit handles conversion to HDMI and SD video from SDI, and which stereo pair is available on the analog audio outputs. The converter features a locking DC power socket and a mounting bracket allowing you to attach it to a wall or possibly the back of a monitor.
If you own a signal converters and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the DECIMATOR DECIMATOR 2 3G/HD/SD-SDI to HDMI Converter DD-DEC-2 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the DECIMATOR DECIMATOR 2 3G/HD/SD-SDI to HDMI Converter DD-DEC-2:
Video Formats 3G - SMPTE 424 Mb/s 2.97 and 2.967 Gb/s
1080p: 60/59.94/50Hz

HD - SMPTE 292 Mb/s 274 Mb/s 296 Mb/s 1.485 and 1.435 Gb/s
1080i: 60/59.94/50 Hz
1080p/psf: 30/29.97/25/24/23.98 Hz
720p: 60/59.94/50/30/29.97/25/24/23.98 Hz

SD - SMPTE 259 Mb/s 270 Mb/s
525i: 59.94
625i: 50
Inputs SD/HD/3G-SDI: 1 x BNC

Note: Conditional Maximum Equalization cable length of 400M for SDI, 200M for HD-SDI and 100M 3G-SDI using Belden 1694A
Outputs SD/HD/3G-SDI: 1 x BNC (loop through output)
SD-Composite: 1 x BNC (NTSC/PAL compatible)
HDMI: 1 x Type A (full size)
Analog Audio: 2 x RCA Jack(2-dBFS=-10dBu)
Dip Switches
  • NTSC or PAL Selection
  • SD Pedestal
  • Crop 16:9 to 4:3
  • 16:9 or 4:3 Aspect Selection
  • Stereo Pair selection for RCA Analogue Audio
  • HDMI Output format select
LED Status Indicators Power
Signal Lock
Power 5 to 24 VDC, 5W
Pin Positive
Dimensions 3.5 x 2.8 x 0.9" / 90 x 71 x 23 mm
Packaging Info
Package Weight 1.4 lb
Box Dimensions (LxWxH) 10.2 x 6.2 x 2.6"
The user manual for the DECIMATOR DECIMATOR 2 3G/HD/SD-SDI to HDMI Converter DD-DEC-2 can be downloaded in .pdf format if it did not come with your new signal converters, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other users keep a unique electronic library for signal converterss, where you can use our link to download the user manual for the DECIMATOR DECIMATOR 2 3G/HD/SD-SDI to HDMI Converter DD-DEC-2.

The user manual lists all of the functions of the DECIMATOR DECIMATOR 2 3G/HD/SD-SDI to HDMI Converter DD-DEC-2, all the basic and advanced features and tells you how to use the signal converters. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the DECIMATOR DECIMATOR 2 3G/HD/SD-SDI to HDMI Converter DD-DEC-2. User manuals are also available on the website under Professional Video - Signal Processing & Distribution - Signal Converters.
