User manual Dell P2314T 23" LED Backlit IPS LCD Touch Monitor P2314T

Operating instructions and pdf manual for use - Dell P2314T 23" LED Backlit IPS LCD Touch Monitor P2314T User manual, User manual Dell P2314T 23" LED Backlit IPS LCD Touch Monitor P2314T, Dell, P2314T, 23, LED, Backlit, IPS, LCD, Touch, Monitor, P2

User manual for Dell P2314T 23" LED Backlit IPS LCD Touch Monitor P2314T

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Dell P2314T 23
  • Manufacturer: Dell
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitors & Displays - Computer Monitors
  • Safety instructions
  • Startup and operation of the computer monitors
  • Tips for setting up your Dell
  • Settings and expert assistance
  • Contact Dell service
  • Troubleshooting
  • Warranty information
  • Price: 298 USD
We recommend checking out our discussion threads on the Dell P2314T 23" LED Backlit IPS LCD Touch Monitor P2314T, which address similar problems with connecting and setting up Computer Monitors Dell.


User manual for the Dell P2314T 23" LED Backlit IPS LCD Touch Monitor P2314T

The user manual for the Dell P2314T 23" LED Backlit IPS LCD Touch Monitor P2314T provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

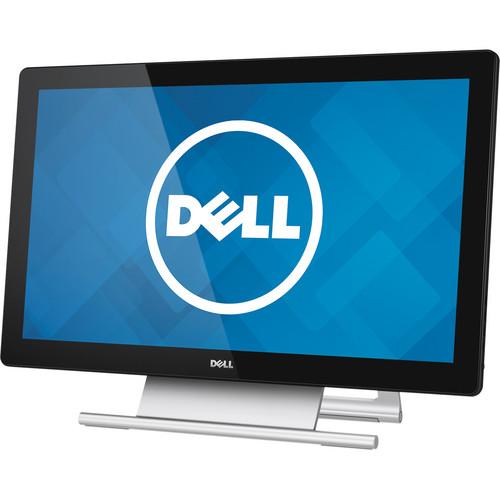

The P2314T 23" LED Backlit IPS LCD Touch Monitor from Dell is a widescreen touch monitor that offers excellent picture quality, intuitive touch capability, and a wide range of connectivity ports. It provides deep blacks and bright whites with an 8,000,000:1 dynamic contrast ratio and up to 270 cd/m2 of brightness. An 8 ms (gray-to-gray) response time contributes to clean and fluid video motion. This monitor is equipped with integrated VGA, USB, DisplayPort, and HDMI ports to enable efficient connectivity to a whole range of peripheral devices.
If you own a Dell computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Dell P2314T 23" LED Backlit IPS LCD Touch Monitor P2314T in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Dell P2314T 23Download user manual for Dell P2314T 23" LED Backlit IPS LCD Touch Monitor P2314T
(PDF file, 8.53 MB)
Additional parameters of the Dell P2314T 23" LED Backlit IPS LCD Touch Monitor P2314T:
Specifications
    Display
    Diagonally Viewable Size 23.0" (58.4 cm)
    Horizontal 20.1" (50.9 cm)
    Vertical 11.3" (28.6 cm)
    Panel Type In-Plane Switching (IPS)
    Panel Backlight LED
    Maximum Resolution 1920 x 1080 at 60 Hz
    Aspect Ratio 16:9
    Pixel Pitch 0.265 mm
    Brightness Typical: 270 cd/m2
    Color Support Color Gamut (Typical): 83% (CIE 1976)
    Color Depth: 16.7 million colors
    Contrast Ratio Typical: 1,000:1
    Dynamic Contrast Ratio: 8,000,000:1
    Viewing Angle Typical: Vertical: 178°
    Horizontal: 178°
    Response Time Typical: 8 ms (gray to gray)
    Touch Specifications
    Touch Technology Projected capacitive system
    Sensor Stack Thickness: 0.5 mm
    Cover Glass Thickness: 1.1 mm
    Touch Method Fingers and thin gloves
    Touch Point 10-touch with palm accommodation
    Response Time <10 ms
    OS Support Windows 8 certified
    Connectivity
    Ports DisplayPort 1.2
    HDMI (MHL)
    VGA
    USB upstream port (for touch enablement)
    USB 2.0/3.0 downstream port
    Audio line-out
    Power
    Input Voltage 100 to 240 VAC
    Frequency 50 Hz/60 Hz + 3 Hz
    Current 1.5 A (max)
    Power Consumption Normal Operating: 17 W (typical)
    Active-off Mode: <0.5 W
    General
    Tilt Up to 60°
    Security Security lock slot
    Flat Panel Mount Interface VESA Mount: 100 x 100 mm

    Wall mount sold separately
    Compliance ENERGY STAR, EPEAT Gold, TCO Certified Display
    Dimensions (W x H x D) With Stand: 22.4 x 8.5~16.3 x 3.2-16.6" (57.0 x 21.6~41.3 x 8.1~42.1 cm)
    Without Stand: 22.4 x 13.7 x 1.7" (57.0 x 34.8 x 4.2 cm)

    The range in dimensions is compressed to extended
    Weight With Stand: 15.6 lb (7.1 kg)
    Without Stand: 10.6 lb (4.8 kg)
    Packaging Info
    Package Weight 18.5 lb
    Box Dimensions (LxWxH) 25.1 x 19.2 x 5.2"
    The user manual for the Dell P2314T 23" LED Backlit IPS LCD Touch Monitor P2314T can be downloaded in .pdf format if it did not come with your new computer monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Dell users keep a unique electronic library for Dell computer monitorss, where you can use our link to download the user manual for the Dell P2314T 23" LED Backlit IPS LCD Touch Monitor P2314T.

    The user manual lists all of the functions of the Dell P2314T 23" LED Backlit IPS LCD Touch Monitor P2314T, all the basic and advanced features and tells you how to use the computer monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Dell service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Dell P2314T 23" LED Backlit IPS LCD Touch Monitor P2314T. User manuals are also available on the Dell website under Computers & Solutions - Monitors & Displays - Computer Monitors.
