User manual for Dell Precision M3800 463-5901 15.6" Multi-Touch 463-5901
- Manufacturer: Dell
- Basic description and contents of package
- Product classification: Computers & Solutions - Laptops - Mobile Workstations
- Safety instructions
- Startup and operation of the mobile workstations
- Tips for setting up your Dell
- Settings and expert assistance
- Contact Dell service
- Troubleshooting
- Warranty information

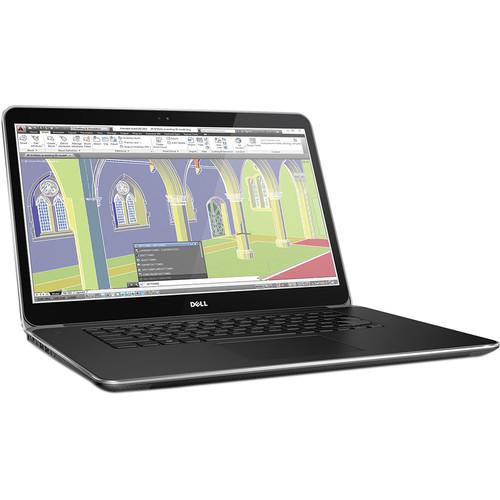

Click to enlarge image
|
We recommend checking out our discussion threads on the Dell Precision M3800 463-5901 15.6" Multi-Touch 463-5901,
which address similar problems with connecting and setting up Mobile Workstations Dell.
|
User manual for the Dell Precision M3800 463-5901 15.6" Multi-Touch 463-5901
The user manual for the Dell Precision M3800 463-5901 15.6" Multi-Touch 463-5901 provides
necessary instructions for the proper use of the product Computers & Solutions - Laptops - Mobile Workstations.
Built from aluminum carbon fiber, the Precision M3800 463-5901 15.6" Multi-Touch Mobile Workstation Computer from Dell is designed for professionals who require reliability and high performance for tasks such as designing digital content, working with CAD models, analyzing manufacturing processes, or running other performance-intensive applications. The M3800 is powered by a 2.3 GHz Intel Core i7-4712HQ Quad-Core processor, allowing multiple applications to be run simultaneously. If you need more power, the CPU also features a burst speed of up to 3.3 GHz, and the system's 16GB of 204-pin SO-DIMM 1600 MHz PC3-12800 DDR3L RAM allows the system to quickly access frequently-used files and programs.
The 15.6" Dell UltraSharp widescreen display features LED backlighting, which consumes less power and conserves more energy than its CCFL counterparts. The display has a 16:9 aspect ratio and an Ultra HD 4K 3820 x 2160 native resolution, which can display up to four times the resolution of Full HD 1920 x 1080. This is especially useful for those who need extremely fine details when editing photos or videos. The display is powered by dedicated NVIDIA Quadro K1100M graphics with 2GB of GDDR5 RAM and delivers a sharp, clear picture. You'll also be able to output video to an external display via the built-in HDMI and Mini DisplayPort. Additionally, the touchscreen aspect of this display features multi-touch support and integrates with the built-in multi-touch gestures of Windows, allowing users to control many aspects of their system without a keyboard or mouse.
For long-term storage of your files, a 512GB provides quick access to your data. While this SSD may not have the larger capacity of a traditional hard drive, SSDs contain no moving parts and are able to operate with faster data transfer speeds. Having no moving parts also helps protect SSDs against damage from bumps and drops, as well as receive less wear and tear, as the drives have no read or write heads for the media to come into contact with.
External peripherals, such as additional storage, optical drives, and memory card readers may be connected using the 2 x USB 3.0 and 1 x USB 2.0 port. Wired network connectivity is achieved using an included USB-to-Ethernet, although 802.11ac Wi-Fi is also built-in for connecting wirelessly. Additional compatible peripherals, such as keyboards, headsets, and mice may be paired using Bluetooth 4.0 technology, and a media card reader supports SD, SDIO, SDHC, and SDXC UHS cards.
Whether you are listening to music, watching a movie, or playing a game, the integrated stereo speakers feature Waves MaxxAudio Pro which provides sound quality with high fidelity. Use the dual integrated noise-canceling microphones to record your own audio, or use it alongside the integrated HD webcam to engage in face-to-face conversations using Skype or other software.
The Dell Precision M3800 is powered by an included 130W AC adapter that runs on 120/230 VAC at 50/60 Hz. Also included is a 6-cell battery and while the installed operating system is Windows 7 Professional (64-bit), a Windows 8.1 Professional (64-bit) licenses is provided at no extra cost.
|
If you own a Dell mobile workstations and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Dell Precision M3800 463-5901 15.6" Multi-Touch 463-5901 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Dell Precision M3800 463-5901 15.6" Multi-Touch 463-5901:
Processor | 2.2 GHz Intel Core i7-4702HQ Quad-Core | Cache | L3: 6 MB | System Bus | 5 GT/s | Memory | Slots: 2x SO-DIMM 204-Pin Type: PC3-12800 1600 MHz DDR3L SDRAM Installed: 16 GB (2x8 GB SO-DIMM 204-Pin) Capacity: 16 GB | Graphics Card | Type: Dedicated Installed: NVIDIA Quadro K1100M with 2 GB GDDR5 SDRAM Dedicated | Type | Wide Touchscreen | Size | 15.6" | Backlight | LED | Aspect Ratio | 16:9 | Finish | Not Specified By Manufacturer | Native Resolution | 3840 x 2160 | Hard Drive | Installed: 512 GB SSD | Optical Drive | None | Ports | 2x USB 3.0 (A) 1x USB 2.0 (A) | Display | 1x HDMI 1x Mini DisplayPort | Audio | Integrated Stereo Speakers Dual Array Microphones 1/8" (3.5 mm) Headphone/Microphone Combo Jack | Expansion Slots | Not Specified By Manufacturer | Flash Media Slot | 1x SD 1x SDIO 1x SDHC 1x SDXC | Network | 1x Ethernet (RJ-45) via included cable | Wi-Fi | 802.11ac | Bluetooth | Bluetooth 4.0 | Webcam | Yes | Operating System | Windows 7 Professional (64-bit) | Security | Power-On Password, Accepts 3rd Party Security Lock Devices, Infineon TPM Software Professional Package, Kensington Lock Slot | Keyboard | Type: Standard Notebook Keyboard Features: Backlight | Pointing Device | TouchPad with Multi-Touch Control | Battery | 6-Cell | Power Requirements | AC: 120-230 VAC, 50/60 Hz Consumption: 130 W | Dimensions (WxHxD) | 14.7 x 0.7 x 10.0" / 373.4 x 17.8 x 254.0 mm | Weight | 4.15 lb / 1.88 kg Starting weight | Package Weight | 8.9 lb | Box Dimensions (LxWxH) | 19.5 x 13.6 x 3.8" | |
The user manual for the Dell Precision M3800 463-5901 15.6" Multi-Touch 463-5901 can be downloaded in .pdf
format if it did not come with your new mobile workstations, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Dell users keep a unique electronic library
for Dell mobile workstationss,
where you can use our link to download the user manual for the Dell Precision M3800 463-5901 15.6" Multi-Touch 463-5901.
The user manual lists all of the functions of the Dell Precision M3800 463-5901 15.6" Multi-Touch 463-5901,
all the basic and advanced features and tells you how to use the mobile workstations.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Dell service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Dell Precision M3800 463-5901 15.6" Multi-Touch 463-5901. User manuals are also
available on the Dell website under Computers & Solutions - Laptops - Mobile Workstations.
Question and answer discussion forum concerning user instructions and resolving problems with the Dell Precision M3800 463-5901 15.6" Multi-Touch 463-5901 - no comments have been made yet - be the first to add a comment
Post new comment/question/response regarding the Dell Precision M3800 463-5901 15.6" Multi-Touch 463-5901
|
|
|
|
|
