User manual for Dell UP2715K 27" UltraSharp 27 Ultra HD 5K LED UP2715K
Overall Rating: 4.5
90% of respondents would recommend this to a friend.
- Manufacturer: Dell
- Basic description and contents of package
- Product classification: Computers & Solutions - Monitors & Displays - Computer Monitors
- Safety instructions
- Startup and operation of the computer monitors
- Tips for setting up your Dell
- Settings and expert assistance
- Contact Dell service
- Troubleshooting
- Warranty information
|
We recommend checking out our discussion threads on the Dell UP2715K 27" UltraSharp 27 Ultra HD 5K LED UP2715K,
which address similar problems with connecting and setting up Computer Monitors Dell.
|
User manual for the Dell UP2715K 27" UltraSharp 27 Ultra HD 5K LED UP2715K
The user manual for the Dell UP2715K 27" UltraSharp 27 Ultra HD 5K LED UP2715K provides
necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

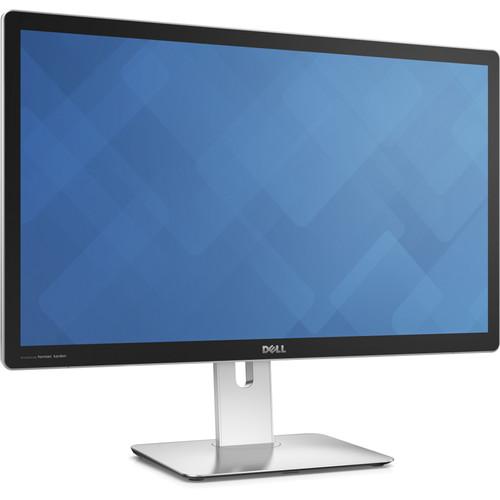

The UP2715K 27" Monitor from Dell features an Ultra HD 5K resolution that offers seven times the resolution when compared to other 1080p monitors. To support the 5120 x 2880 resolution, this display connects to your system via two DisplayPorts. When the monitor is connected to one DisplayPort, the maximum resolution it can support is 3840 x 2160. In addition, this monitor is equipped with a mini-DisplayPort that can support up to 4K resolutions. The 5K resolution provides you sharp detail when viewing 5K media and offers extra on-screen workspace. This extra space allows you to view more cells while working in spreadsheets, viewing two web pages side-by-side, and more.
This monitor is built with an IPS panel that offers better color reproduction of the 1.074 billion colors as well as wider viewing angles when compared to TN panels. With 178° wide viewing angles that eliminate color shifts, IPS monitors allow you to see the same clear images from the far left or right, as you would see from the center. This monitor also features 8,000,000:1 dynamic contrast ratio, 8 ms response time, 218 ppi, and a 350 cd/m² brightness rating. Furthermore, this IPS monitor has been factory tuned for 99% Adobe RGB that accurately reproduces colors for reds, blues, and more.
The Dell UP2715K delivers PremierColor technologies to provide accurate colors and true-to-life picture quality when viewing photos and videos. To maintain its color accuracy, this monitor comes with a 12-bit user-accessible 3D look-up table and software for adjusting the color settings when used with an optional colorimeter. Optical bonding and an anti-reflective 3H coating has been applied to the monitor for eliminating the reflection from the LCD panel and protective glass layer that helps improve clarity, vividness, and contrast. Dell has built this monitor with an edge-to-edge glass design that has an anti-smudge coating for easily cleaning away fingerprints. To complete the visual multimedia experience, this display is equipped with two down-firing 16-watt Harman Kardon speakers for immersing you with sounds when watching movies.
The included stand allows the monitor to be raised or lowered and tilted forward or back. To help display long word documents or web pages, this monitor pivots 90° for better utilizing the on-screen workspace that allows you to view more content vertically. The stand can be removed so you can use an optional VESA 100 kit to mount the monitor on the wall, or attach it to a VESA compatible swing arm. This monitor provides five USB 3.0 ports via the built-in USB hub and a media card reader for connecting with a wide range of other devices to optimize productivity. Moreover, one of the USB 3.0 ports supplies twice the power that charges BC 1.2 compatible USB devices. Included with the monitor are a media disc, power cable, USB 3.0, mini-DisplayPort to mini-DisplayPort, two mini-DisplayPort to DisplayPort, and two DisplayPort to DisplayPort cables.
|
If you own a Dell computer monitors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Dell UP2715K 27" UltraSharp 27 Ultra HD 5K LED UP2715K in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Dell UP2715K 27" UltraSharp 27 Ultra HD 5K LED UP2715K:
| Diagonally Viewable Size | 27" / 68.5 cm (27" wide viewable image size) | | Display Area (H × V) | 23.49 x 13.22" / 596.74 x 335.66 mm | | Aspect Ratio | Widescreen 16:9 | | Panel Type Surface | In-plane switching, anti glare with hard coat 3H | | Optimal Resolution | 5120 x 2880 at 60 Hz (dual DP cable required)
3840 x 2160 at 60 Hz (single DP cable required) | | Contrast Ratio | Typical: 1000:1
Dynamic Contrast Ratio: Mega 8,000,000:1 | | Brightness | Typical: 350 cd/m2
Minimum: 50 cd/m2 | | Response Time | 8 ms (gray to gray) | | Viewing Angle | 178° vertical / 178° horizontal | | Color Support | Color Gamut (typical): Adobe RGB 99%, sRGB 100%
1.074 Billion colors (true 10-bits) | | Pixel Pitch | 0.005" / 0.116 mm | | Pixel per Inch | 218 | | Backlight Technology | LED | | Display Type | Widescreen flat panel display | | Display Screen Coating | Anti-glare with hard-coating 3H | | Connectivity | 1 x Mini DisplayPort
2 x DisplayPort (DP1, DP2)
5 x USB 3.0 ports - Downstream (4 at the back, 1 with battery charging)
1 x USB 3.0 port - Upstream
1 x Media card reader | | Stand | Height-adjustable stand (4.5" / 115.0 mm), tilt , swivel, pivot, and built in cable-management | | VESA | 3.9" / 100.0 mm | | Built-In Devices | USB 3.0 Hi-Speed Hub (with 1 x USB upstream port and 5 x USB downstream ports)
Acoustics by Harman Kardon (2 x 16 W = 32 W) | | Electrical | Voltage Required: 100 to 240 VAC / 50 or 60 Hz ± 3Hz / 1.8 A (typical)
Power Consumption (Operational): 100 W (typical) / 170 W (maximum)
Power Consumption Standby / Sleep: Less than 1.2 W
Audio Output: Acoustics by Harmon - Integrated 2 x 16 W speakers | | Temperature | Operating: 32 to 122°F / 0 to 50°C
Non-operating (storage and shipping): -4 to 140°F / -20 to 60°C | | Humidity | Operating (non-condensing): 10 to 80%
Non-operating (non-condensing, storage and shipping): 5 to 90% | | Altitude | Operating max: 16,400' / 5,000 m
Non-operating max: 40,000' / 12,191 m | | Standards and Compliance | ENERGY STAR 6
EPEAT Gold
TCO Certified Displays
RoHS Compliant | | Package Weight | 31.8 lb | | Box Dimensions (LxWxH) | 30.0 x 19.0 x 9.0" | |
The user manual for the Dell UP2715K 27" UltraSharp 27 Ultra HD 5K LED UP2715K can be downloaded in .pdf
format if it did not come with your new computer monitors, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Dell users keep a unique electronic library
for Dell computer monitorss,
where you can use our link to download the user manual for the Dell UP2715K 27" UltraSharp 27 Ultra HD 5K LED UP2715K.
The user manual lists all of the functions of the Dell UP2715K 27" UltraSharp 27 Ultra HD 5K LED UP2715K,
all the basic and advanced features and tells you how to use the computer monitors.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Dell service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Dell UP2715K 27" UltraSharp 27 Ultra HD 5K LED UP2715K. User manuals are also
available on the Dell website under Computers & Solutions - Monitors & Displays - Computer Monitors.
