User manual for the Delvcam 9.7" 3G-SDI & HDMI Monitor DELV-SDI-10-AB
The user manual for the Delvcam 9.7" 3G-SDI & HDMI Monitor DELV-SDI-10-AB provides
necessary instructions for the proper use of the product Professional Video - Monitors - On Camera Monitors.

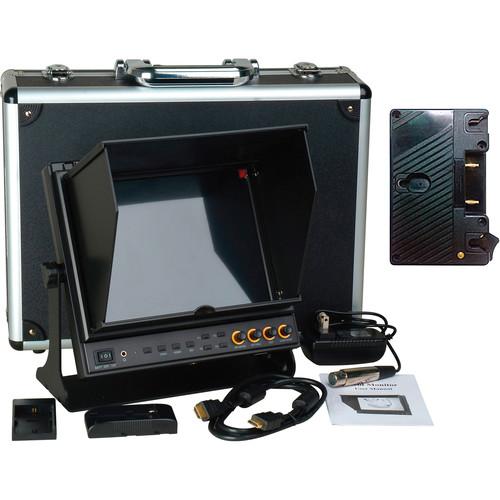

Delvcam's 9.7" 3G-SDI & HDMI Monitor with AB Gold Mount Type Battery Plate & Sun Hood features a native 4:3 aspect ratio, supports video with resolution up to 1920 x 1080, and displays video with either a 4:3 or 16:9 aspect ratio. It features 1024 x 768 resolution, useful for displaying either SD (NTSC/PAL) or HD video, and it features advanced display tools such as peaking, false color, and histogram. The monitor ioncorporates both 3G-SDI and HDMI inputs and outputs.
The display panel features 400 nit brightness with a 600:1 contrast ratio for a clear bright image, a 170° viewing angle for off axis viewing by those huddling around the monitor, and 1:1 pixel mapping. The included AB Gold mount type battery plate allows you to power the monitor from an optional professional sized battery brick.
|
If you own a Delvcam on camera monitors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Delvcam 9.7" 3G-SDI & HDMI Monitor DELV-SDI-10-AB in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Delvcam 9.7" 3G-SDI & HDMI Monitor DELV-SDI-10-AB:
| LCD Size | 9.7" IPS display | | Video System | NTSC
PAL | | Resolution | Native: 1024 x 768
Support: 1920 x 1080 | | Viewing Angle | 178°/178° (H/V) | | Brightness | 400 nit | | Contrast Ratio | 600:1 | | Aspect Ratio | Native: 4:3
Support: 16:9 | | Input and Output Connectors | Input
3G-SDI: 1x BNC
HDMI: 1 x Type A
Component: 1 x 3 BNC YPbPr
Composite: 1 x BNC
Audio: 2 x RCA jacks (L/R)
Tally: 1 x 15-pin DIN
Output
3G-SDI: 1x BNC
HDMI: 1 x Type A
Component: 1 x 3 BNC YPbPr
Composite: 1 x BNC Headphone: 1 x 3.5mm Stereo mini jack
Speaker: Built-in | | Format Support | Composite
NTSC
PAL
Component
1080p: 59.94/50/
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 59.94
480i: 59.94
NTSC
PAL
HDMI
1035i: 60/59.94 720p: 60/59.94/50/30/29.97
576p: 50
576i: 50
480p: 59.94
480i: 59.94 | | Power Requirements | Input Voltage: 7 to 24 VDC
Current: 1500 mA Consumption: 18 W | | Temperature | Operating: -4 to 140°F / -20 to 60°C
Storage: -22 to 158°F / -30 to 70°C | | Dimensions (WxHxD) | 9.7 x 8.8 x 1.2" / 246 x 224 x 31 mm 9.7 x 8.8 x 6.6" / 246 x 224 x 167.5 mm (with sun hood) | | Weight | 2.4 lb / 1.07 kg
3.1 lb / 1.39 kg (with sun hood) | | Package Weight | 9.3 lb | | Box Dimensions (LxWxH) | 16.3 x 13.3 x 5.0" | |
The user manual for the Delvcam 9.7" 3G-SDI & HDMI Monitor DELV-SDI-10-AB can be downloaded in .pdf
format if it did not come with your new on camera monitors, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Delvcam users keep a unique electronic library
for Delvcam on camera monitorss,
where you can use our link to download the user manual for the Delvcam 9.7" 3G-SDI & HDMI Monitor DELV-SDI-10-AB.
The user manual lists all of the functions of the Delvcam 9.7" 3G-SDI & HDMI Monitor DELV-SDI-10-AB,
all the basic and advanced features and tells you how to use the on camera monitors.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Delvcam service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Delvcam 9.7" 3G-SDI & HDMI Monitor DELV-SDI-10-AB. User manuals are also
available on the Delvcam website under Professional Video - Monitors - On Camera Monitors.
