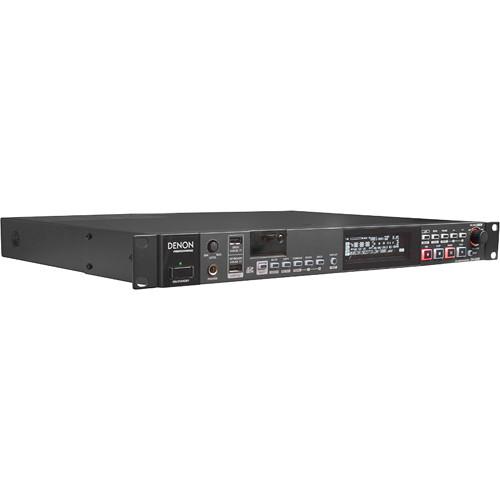

The Denon Professional DN-500R SD and USB Recorder is a 1U rack mountable recorder and audio playback device designed for installed sound applications such as houses of worship, education, and more. The unit can record to both SD/SDHC cards and USB media either one at a time for longer recording times or simultaneously to both mediums for backup.

The front panel of the recorder features an OLED display for showing information such as time, sample rate, and file name. A set of rubberized buttons control basic functions such as record, stop, pause, play, forward, back, as well as menu control and file management functions such as move, copy, combine, divide, and undo. A shift button changes these buttons to functions such as dimming the display, marking files, record monitoring, switching to frame mode, and adjusting pitch. A rotary knob button controls recording level, recording balance, and navigates the menu settings. The front of the unit has an SD/SDHC card slot for inserting recording media with ejection button, as well as a USB female type A port for plugging in USB media such as thumb drives and external USB hard drives. A second USB female type A port allows you to plug in a USB QWERTY keyboard for entering file information while recording. The unit also includes a 1/4" headphone out and headphone level control knob for monitoring while recording or listening to recorded tracks.

For I/O, the back of the unit features left and right balanced analog 3-pin XLR female inputs, left and right unbalanced analog RCA inputs, a balanced digital 3-pin XLR AES/EBU input, an unbalanced digital coaxial SPDIF input, left and right balanced analog 3-pin XLR male outputs, left and right unbalanced analog RCA outputs, a balanced digital 3-pin XLR AES/EBU output, and an unbalanced coaxial SPDIF output. For remote control, the unit features both an RS-232C and a 25-pin parallel port. The included rack ears are removable for tabletop operation.
If you own a Denon digital recorders & players and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Denon DN-500R SD and USB Recorder DN-500R in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Denon DN-500R SD and USB Recorder DN-500R:
System SD/USB Recorder
Compatible Media SD/USB memory/USB HDD
Playable File Formats SD, USB: FAT16/FAT32/HFS+
Extension WAV: WAV, AIFF, AIF
MP3: MP3
AAC: M4A with AAC-LC compression
Resolution WAV: 16-bit, 24-bit
Bit Rate MP3: 32 to 320 kbps and VBR
AAC: 64 to 320 kbps and VBR
Sampling Frequency WAV: 96, 48, 44.1 kHz
MP3: 48, 44.1 kHz
AAC: 48, 44.1 kHz
Number of Channels 2 (stereo), 1 (mono)
Frequency Response 20 to 20,000 Hz (+0.5 dB/ -1 dB)
S/N Ratio More than 89 dB (A-weighted)
Total Harmonic Distortion Less than 0.01%
Dynamic Range More than 106 dB (for 24 bit WAV playback)
Channel Separation Less than -90 dB
Variable Pitch Width -16% to 16%
Variable Trim Adjustment Width ± 2.0 dB
Input
Balanced Input Analog
Type: XLR (1:GND, 2:Hot, 3:Cold)
Line setting input level: +4 dB
Maximum input level: +24 dBu/+20 dBu/+18 dBu
Input impedance: 20 kΩ
MIC setting Input level: -60 to 16 dBu
MIC setting input impedance: 5 kΩ
EIN: Less than -127 dBu (Rs=150 Ω
CMRR: More than 80 dB

Digital
Type: XLR (1:GND, 2:Hot, 3:Cold)
Input impedance: 110 Ω
Standard Input Level: 3.5 Vp-p
Format: IEC-60958(AES/EBU)
Unbalanced Input Analog
Type: RCA terminal
Input level: -10 dBV
Maximum input level: +10 dBV/+6 dBV/4 dBV
Input impedance: 10 kΩ

Digital
Type: RCA terminal
Input impedance: 75 Ω
Standard input level: 0.5 Vp-p
Format: IEC-60958 (COAXIAL)
Output
Balanced Output Analog
Type: XLR (1:GND, 2:Hot, 3:Cold)
Load impedance: over 600 Ω
Output level: +4 dBu at 600Ω load
Maximum Output level: +24 dBu/+20 dBu/+18 dBU

Digital
Type: XLR (1:GND, 2:Hot, 3:Cold)
Load impedance: over 10 kΩ
Standard Output level: 3.0 Vp-p
Format: IEC-60958 (AES/EBU)
Unbalanced Outputs Analog
Type: RCA terminal
Load impedance: Over 10kΩ
Output level: -10 dBV
Maximum Output level: +10 dBV/+6 dBV/ +4 dBV

Digital
Type: RCA terminal
Output Impedance: 75 Ω
Standard output level: 0.5 Vp-p
Format: IEC-60958 (Coaxial)
Headphone Output 20 mW at 32 Ω
Storage
Maximum Capacity Up to 2 TB
File Size 2 GB
Files Supported Maximum 2000 files (for 1 folder)
Maximum 1000 folders
Maximum 8 folder hierarchies under root directory
System Requirements
Operating System Windows XP Service Pack 2 or later
CPU Intel Pentium III or AMD Processor, 1 GHZ or more recommended
Memory 128 MB minimum, 256 MB or more recommended
Disk CD-ROM required
Hard disk drive required with minimum of 300 MB available space
Software .NET Framework 2.0
General
Power Supply 120 VAC at 60 Hz (U.S.A. and Canada models)
230 VAC at 50/60 HZ (European, U.K. and Asia/Pacific models)
Power consumption: 30 W, 0.4 W (standby)
Environmental Conditions Operating temperature: 41 to 95° F (5 to 35° C)
Operating humidity: 25 to 85% non-condensing
Storage temperature: -4 to 140° F (-20 to 60° C)
Dimensions (W x H x D) 19.00 x 1.73 x 13.00" (48.26 x 4.40 x 33.03 cm)
Weight 7.9 lb (3.6 kg)
Packaging Info
Package Weight 12.55 lb
Box Dimensions (LxWxH) 21.0 x 20.4 x 4.6"
