User manual Denon DN-700C Network CD / Media Player DN-700C

Operating instructions and pdf manual for use - Denon DN-700C Network CD / Media Player DN-700C User manual, User manual Denon DN-700C Network CD / Media Player DN-700C, Denon, DN-700C, Network, CD, /, Media, Player, DN-700C, Video


User manual for Denon DN-700C Network CD / Media Player DN-700C

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Denon  DN-700C Network CD / Media Player DN-700C
  • Manufacturer: Denon
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - CD/DVD/Blu-Ray Recorders & Players
  • Safety instructions
  • Startup and operation of the cd/dvd/blu-ray recorders & players
  • Tips for setting up your Denon
  • Settings and expert assistance
  • Contact Denon service
  • Troubleshooting
  • Warranty information
  • Price: 599 USD
We recommend checking out our discussion threads on the Denon DN-700C Network CD / Media Player DN-700C, which address similar problems with connecting and setting up CD/DVD/Blu-Ray Recorders & Players Denon.



User manual for the Denon DN-700C Network CD / Media Player DN-700C

The user manual for the Denon DN-700C Network CD / Media Player DN-700C provides necessary instructions for the proper use of the product Pro Audio - Recording - CD/DVD/Blu-Ray Recorders & Players.

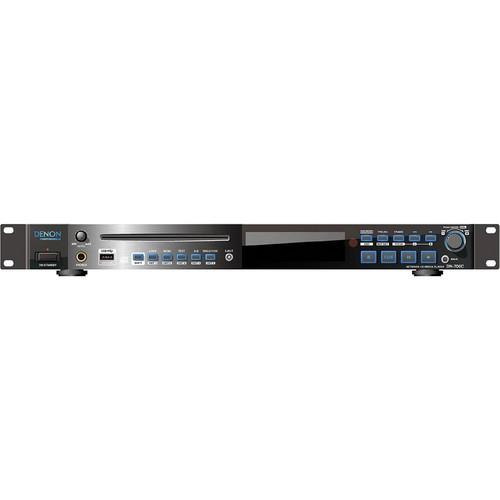

The Denon DN-700C Network CD / Media Player is designed to be a fully functional broadcast/professional installation network CD and media player with support for multiple audio sources. It's housed in rack-mountable 1U chassis and it can be controlled using a variety of remote control interfaces including an IR handset, Parallel GPIO, RS-232C or a via a network using the built-in web remote. The web-based interface also supports hot start playback.
If you own a Denon cd/dvd/blu-ray recorders & players and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Denon DN-700C Network CD / Media Player DN-700C in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Denon DN-700C Network CD / Media Player DN-700C:
Specifications
    Audio Performance
    System Network CD / Media Player
    Compatible Media CD Media
    USB flash memory
    USB HDD
    iPod
    File System Support CD: CD-DA (CD Text), CD-ROM (ISO9660)
    USB: FAT16, FAT32, HFS+
    Playable File Formats Playable WAV Format
    Extension: WAV, AIFF, AIF
    Resolution: 16 / 24-bit
    Sampling Frequency: 96, 48, 44.1 kHz

    Playable MP3 Format
    Extension: MP3
    Bit rate: 32-320 kbps, VBR
    Sampling Frequency: 48, 44.1 kHz

    Playable AAC Format
    Extension: M4A, AAC
    Compression Method: AAC-LC
    Bit rate: 64-320 kbps, VBR
    Sampling frequency: 48, 44.1 kHz
    Number of Channels 2 (stereo)
    1 (mono)
    Frequency Range 20 Hz - 20 kHz (±0.5 dB)
    Signal to Noise Ratio >105 dB (A-Weighted)
    Total Harmonic Distortion (THD) <0.005%
    Dynamic Range >105 dB (for 24-bit WAV playback)
    Channel Separation <-106 dB
    Variable Pitch Width ±16%
    Variable Trim Adjustment Width ±2 dB
    Connectivity
    Balanced Analog Out L/R Type: XLR (3-pin) x 2 (L/R)
    Pin Arrangement: Ground (1), Hot (2), Cold (3)
    Load Impedance: Over 600 ohms
    Output Level: 8.23 dBu (max 24 dBu) at 600 ohms load
    Unbalanced Analog Out L/R Type: RCA terminal x 2 (L/R)
    Load Impedance: Over 10 kohms
    Output Level: 2 Vrms (max 10 dBV) at 10 kohms load
    Balanced Digital Out Type: XLR (3-pin) x 1
    Pin Arrangement: Ground (1), Hot (2), Cold (3)
    Output Impedance: 110 ohms
    Standard Output Level: 3.5 Vp-p
    Format: IEC-60958 (AES/EBU)
    Unbalanced Digital Output Type: Coaxial RCA terminal x 1
    Output Impedance: 75 ohms
    Standard Output Level: 0.5 Vp-p
    Format: IEC-60958 (Coaxial)
    Headphone Output Type: 1/4" (6.35 mm) jack x 1
    Power Output: 20 mW
    Impedance: 32 ohms
    LAN Interface Ethernet (10/100Base-T) RJ-45 jack x 1
    Remote Interface RS-232C (9-pin) jack x 1
    Parallel (25-pin) jack x 1
    General
    Max Storage Capacity Up to 2TB
    Max File Size 4GB
    Max Number of Files 2000 files (for 1 folder)
    Max Number of Folders 1000 folders
    Max Number of Folder Hierarchies 8 (under the root directory)
    Max Number of Marks 30 per file
    Max File Name Length 255 characters
    Max Folder Name Length 255 characters
    Max Preset Name Length 8 characters
    Max Machine ID Name Length 8 characters
    Power Supply AC 120 V, 60 Hz
    Power Consumption 30 W
    Standby Power Consumption 0.4 W
    Operating Temperature 41 to 95°F (5 to 35°C)
    Operating Humidity 25 to 85% (no condensation)
    Storage Temperature -4 to 140°F (-20 to 60°C)
    Dimensions (WxHxD) 19.0 x 1.7 x 12.8" (483 x 44 x 325 mm)
    Weight 9.04 lb (4.10 kg)
    Packaging Info
    Package Weight 15.1 lb
    Box Dimensions (LxWxH) 21.1 x 20.3 x 6.4"
    The user manual for the Denon DN-700C Network CD / Media Player DN-700C can be downloaded in .pdf format if it did not come with your new cd/dvd/blu-ray recorders & players, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Denon users keep a unique electronic library for Denon cd/dvd/blu-ray recorders & playerss, where you can use our link to download the user manual for the Denon DN-700C Network CD / Media Player DN-700C.

    The user manual lists all of the functions of the Denon DN-700C Network CD / Media Player DN-700C, all the basic and advanced features and tells you how to use the cd/dvd/blu-ray recorders & players. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Denon service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Denon DN-700C Network CD / Media Player DN-700C. User manuals are also available on the Denon website under Pro Audio - Recording - CD/DVD/Blu-Ray Recorders & Players.
