User manual Denon IN-Command AVR-X6200W 9.2-Channel Network A/V AVR-X6200W

Operating instructions and pdf manual for use - Denon IN-Command AVR-X6200W 9.2-Channel Network A/V AVR-X6200W User manual, User manual Denon IN-Command AVR-X6200W 9.2-Channel Network A/V AVR-X6200W, Denon, IN-Command, AVR-X6200W, 9.2-Channel, Netw


User manual for Denon IN-Command AVR-X6200W 9.2-Channel Network A/V AVR-X6200W

Denon IN-Command AVR-X6200W 9.2-Channel Network A/V AVR-X6200W
  • Manufacturer: Denon
  • Basic description and contents of package
  • Product classification: TVs & Entertainment - Receivers & Amplifiers - Receivers
  • Safety instructions
  • Startup and operation of the receivers
  • Tips for setting up your Denon
  • Settings and expert assistance
  • Contact Denon service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Denon IN-Command AVR-X6200W 9.2-Channel Network A/V AVR-X6200W, which address similar problems with connecting and setting up Receivers Denon.



User manual for the Denon IN-Command AVR-X6200W 9.2-Channel Network A/V AVR-X6200W

The user manual for the Denon IN-Command AVR-X6200W 9.2-Channel Network A/V AVR-X6200W provides necessary instructions for the proper use of the product TVs & Entertainment - Receivers & Amplifiers - Receivers.

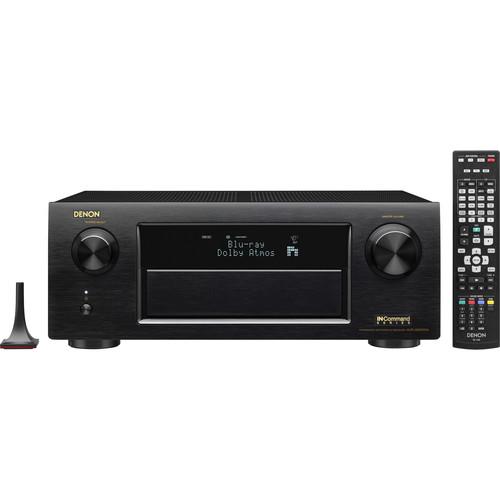

The black Denon IN-Command Series AVR-X6200W 9.2-Channel Network A/V Receiver is designed to deliver powerful audio and video performance from a variety of connected sources. This receiver houses a powerful discreet 9-channel amplifier that can deliver 140W per channel at 8 ohms. Built-in Dolby Atmos support gives you the ability to add front height channels for an immersive audio experience. Audyssey MultiEQ XT32 DSP sound optimization is built-in to help you tailor the sound of the receiver and connected speakers to your listening environment; a setup microphone is included. You can also enjoy enhanced low-frequency sound from your connected subwoofers.

Not only can you connect traditional audio sources like CD players, but the Denon AVR-X6200W can connect to wireless audio sources via integrated Bluetooth, AirPlay, and Wi-Fi connectivity. An Ethernet port is also available for wired high-speed connections. Additionally, Internet connectivity allows you access local network and Internet streaming services via DLNA, Pandora, Spotify.

The Denon AVR-X6200W is well-equipped for video as well as audio. This receiver features HDMI 2.0 and HDCP 2.2 support and features eight HDMI inputs and three HDMI outputs. Furthermore, the built-in video processor can upscale video sources to conform to 4K displays for enhanced video quality. For control flexibility, you can use the included remote control, or operate the Denon AVR-X6200W from your tablet or smartphone with the free Denon Remote App.
If you own a Denon receivers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Denon IN-Command AVR-X6200W 9.2-Channel Network A/V AVR-X6200W in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Denon IN-Command AVR-X6200W 9.2-Channel Network A/V AVR-X6200WDownload user manual for Denon IN-Command AVR-X6200W 9.2-Channel Network A/V AVR-X6200W
(PDF file, 12.37 MB)
Additional parameters of the Denon IN-Command AVR-X6200W 9.2-Channel Network A/V AVR-X6200W:
Specifications
Main Unit
Channels 9.2
Power Output Per Channel: 140 W (8 ohm, 20 Hz - 20 kHz, 0.05% THD)
Per Channel: 175 W (6 ohm, 1 kHz, 0.7% THD)
Dynamic Power 160 W x 2-channel (8 ohms)
250 W x 2-channel (4 ohms)
Impedance 4 to 16 ohms
Analog Input Sensitivity/Input Impedance: 200 mV/47 kohms
Frequency Response: 10 Hz - 100 kHz +1, -3 dB (Direct mode)
S/N: 102 dB (IHF-A weighted, Direct mode)
Distortion: 0.005% (20 Hz - 20 kHz) (Direct mode)
Rated Output: 1.2 V
Digital D/A Output:
Rated Output: 2 V (at 0 dB playback)
Total Harmonic Distortion: 0.008% (1 kHz, at 0 dB)
S/N Ratio: 102 dB
Dynamic Range: 100 dB
Digital Input:
Format: Digital audio interface
Phono Input Input Sensitivity: 2.5 mV
RIAA Deviation: ±1 dB (20 Hz to 20 kHz)
S/N: 74 dB (IHF-A)
Distortion Factor: 0.03% (1 kHz, 3 V)
Video Section Standard Video Connectors:
Input/Output Level and Impedance: 1 Vp-p, 75 ohms
Frequency response: 5 Hz - 10 MHz - 0, -3 dB
Color Component Video Connector:
Input/Output Level and Impedance: Y signal (1 Vp-p, 75 ohms), PB / CB signal (0.7 Vp-p, 75 ohms), PR / CR signal (0.7 Vp-p, 75 Ω/ohms)
Frequency Response: 5 Hz - 60 MHz - 0, -3 dB
Tuner FM:
Reception Frequency Range: 87.5 - 107.9 MHz
Effective Sensitivity: 1.5 μV (14.8 dBf)
S/N Ratio (IHF-A): Mono (78 dB), Stereo (68 dB), HD Radio (85 dB)
Distortion (1 kHz): Mono (0.1%), Stereo (0.2%), HD Radio (0.02%)
AM:
Reception Frequency Range: 530 - 1710 kHz
Effective Sensitivity: 20 μV
S/N Ratio (IHF-A): HD Radio (85 dB)
Distortion (1 kHz): HD Radio (0.02%)
Connectivity
Wi-Fi Wireless LAN Standard): Conforming to IEEE 802.11b/g/n
Security: WEP 64-bit/128-bit, WPA/WPA2-PSK (AES), WPA/WPA2-PSK (TKIP)
Radio Frequency: 2.4 GHz
Channels: 1 - 11 channel
Bluetooth Communications System: Bluetooth Version 2.1 + EDR (Enhanced Data Rate)
Transmission Power: Maximum 2.5 mW (Class 2)
Maximum Communication Range: Approx. 32.8'/10 m in line of sight
Frequency band: 2.4 GHz band
Modulation Scheme: FHSS (Frequency-Hopping Spread Spectrum)
Supported Profiles: A2DP (Advanced Audio Distribution Profile) 1.2, AVRCP (Audio Video Remote Control Profile) 1.4
Corresponding Codec: SBC, AAC
Transmission Range (A2DP): 20 Hz - 20,000 Hz
AirPlay Yes
DLNA Yes
HDCP Version 2.2
Inputs 8 x HDMI (1 front)
2 x Component Video
5 x Composite Video (1 front)
8 x Stereo RCA (1 front / 1 phono)
2 x Digital Optical
2 x Digital Coaxial
1 x IR
Outputs 3 x HDMI
1 x Component video
1 x Composite video
1 x Zone 2 Composite video
2 x Subwoofer preout
1 x Zone 2 stereo RCA
1 x Zone 3 stereo RCA
13 x Speaker preout
2 x Subwooofer preout
1 x IR
2 x Trigger
1 x Headphone (front)
Other Ports 1 x Network
2 x Bluetooth Wi-Fi antennas
1 x Denon Link HD
1 x USB (front)
1 x Setup Mic (front)
1 x Denon Link HD
1 x RS-232C
1 x AM antenna
1 x FM antenna
1 x AC
General
Remote Control Yes
Power Requirements 120 VAC, 60 Hz
Power Consumption Operational: 730 W
Standby Mode: 0.1 W
CEC Standby Mode: 0.5 W
Network Standby Mode: 4.5 W
Dimensions (WxHxD) 17.1 x 6.6 x 15.5" / 434.0 x 167.0 x 393.0 mm
Weight 31.1 lb / 14.1 kg
Packaging Info
Package Weight 37.0 lb
Box Dimensions (LxWxH) 21.0 x 18.4 x 12.3"
The user manual for the Denon IN-Command AVR-X6200W 9.2-Channel Network A/V AVR-X6200W can be downloaded in .pdf format if it did not come with your new receivers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Denon users keep a unique electronic library for Denon receiverss, where you can use our link to download the user manual for the Denon IN-Command AVR-X6200W 9.2-Channel Network A/V AVR-X6200W.

The user manual lists all of the functions of the Denon IN-Command AVR-X6200W 9.2-Channel Network A/V AVR-X6200W, all the basic and advanced features and tells you how to use the receivers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Denon service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Denon IN-Command AVR-X6200W 9.2-Channel Network A/V AVR-X6200W. User manuals are also available on the Denon website under TVs & Entertainment - Receivers & Amplifiers - Receivers.
