User manual for the DeSisti LED Magis 40W Fresnel M.O. - Daylight Balanced LD300.150
The user manual for the DeSisti LED Magis 40W Fresnel M.O. - Daylight Balanced LD300.150 provides
necessary instructions for the proper use of the product Lighting & Studio - Continuous Lighting - LED Lights.

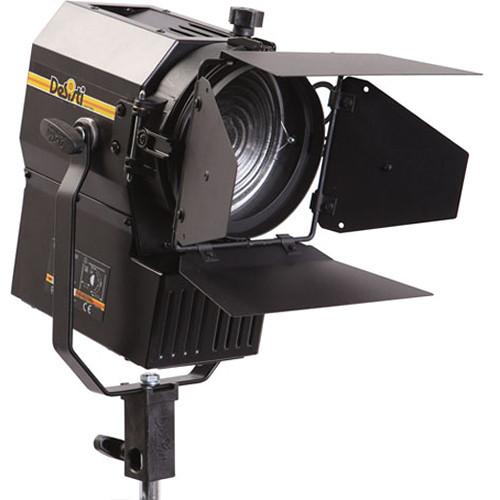

Built on the foundation of their extremely popular Magis Fresnel, the DeSisti LED Magis 40W Fresnel M.O. - Daylight Balanced (120 VAC) offers the same silky controls, system compatibility and sturdy construction but with a twist. This is a 40W cool-running luminaire that provides high output with very low energy consumption in a lightweight form factor.
If you own a DeSisti led lights and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the DeSisti LED Magis 40W Fresnel M.O. - Daylight Balanced LD300.150 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the DeSisti LED Magis 40W Fresnel M.O. - Daylight Balanced LD300.150:
Specifications
Light Source
LED
Rating
40W
Color Temperature
Daylight Balanced C.C.T. (Correlated Color Temperature)
Lens
Fresnel and Plano Convex 4.7" (120 mm)
Photometrics
Candle Power - center value: 4,524 cd at Full Flood 4,524 lux/420 fc at 3.3' (1.0 m) with 2.8' (0.85 m) diameter beam angle and 4.9' (1.48 m) diameter field angle 503 lux/47 fc at 9.8' (3.0 m) with 8.44' (2.55 m) diameter beam angle and 14.6' (4.44 m) diameter field angle 181 lux/17 fc at 16.4' (5.0 m) with 13.9' (4.24 m) diameter beam angle and 24.3' (7.4 m) diameter field angle 45 lux/4.0 fc at 10' (32.8 m) with 27.9' (8.49 m) diameter beam angle and 14.8' (48.6 m) diameter field angle Light beam diameter with beam angle (50% center value) : 46° Light beam diameter with beam angle (10% center value) : 73° Candle Power - center value: 20,421 cd at Full Spot 20,421 lux/1,897 fc at 3.3' (1.0 m) with 0.9' (0.26 m) diameter beam angle and 1.5' (0.44 m) diameter field angle 2,269 lux/211 fc at 9.8' (3.0 m) with 2.6' (0.79 m) diameter beam angle and 4.4' (1.33 m) diameter field angle 817 lux/76 fc at 16.4' (5.0 m) with 4.3' (1.32 m) diameter beam angle and 7.3' (2.22 m) diameter field angle 204 lux/19 fc at 10' (32.8 m) with 8.6' (2.63 m) diameter beam angle and 14.5' (4.43 m) diameter field angle Light beam diameter with beam angle (50% center value) : 15° Light beam diameter with beam angle (10% center value) : 25°
Mounting
5/8" (16 mm)
DMX 512 Connectors
Yes
Dimming
Manually or via DMX
Beam Angle
6.0 - 60 degrees
Power Requirements
120 VAC
Dimensions
13.8 x 8.2 x 7.2" (35.2 x 21 x 18.5 cm)
Weight
7.7 lb (3.5 kg)
