User manual DeSisti LEONARDO 10 Tungsten-Balanced LED Fresnel LT-V90-320.110

Operating instructions and pdf manual for use - DeSisti LEONARDO 10 Tungsten-Balanced LED Fresnel LT-V90-320.110 User manual, User manual DeSisti LEONARDO 10 Tungsten-Balanced LED Fresnel LT-V90-320.110, DeSisti, LEONARDO, 10, Tungsten-Balanced, LE


User manual for DeSisti LEONARDO 10 Tungsten-Balanced LED Fresnel LT-V90-320.110

DeSisti LEONARDO 10 Tungsten-Balanced LED Fresnel LT-V90-320.110
  • Manufacturer: DeSisti
  • Basic description and contents of package
  • Product classification: Lighting & Studio - Continuous Lighting - LED Lights
  • Safety instructions
  • Startup and operation of the led lights
  • Tips for setting up your DeSisti
  • Settings and expert assistance
  • Contact DeSisti service
  • Troubleshooting
  • Warranty information

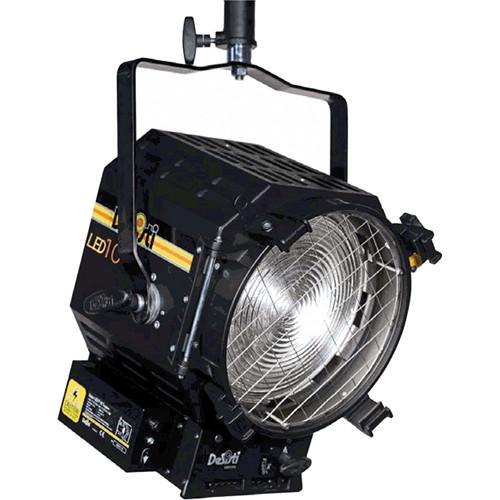

DeSisti LEONARDO 10 Tungsten-Balanced LED Fresnel LT-V90-320.110 DeSisti LEONARDO 10 Tungsten-Balanced LED Fresnel LT-V90-320.110
Click to enlarge image

We recommend checking out our discussion threads on the DeSisti LEONARDO 10 Tungsten-Balanced LED Fresnel LT-V90-320.110, which address similar problems with connecting and setting up LED Lights DeSisti.



User manual for the DeSisti LEONARDO 10 Tungsten-Balanced LED Fresnel LT-V90-320.110

The user manual for the DeSisti LEONARDO 10 Tungsten-Balanced LED Fresnel LT-V90-320.110 provides necessary instructions for the proper use of the product Lighting & Studio - Continuous Lighting - LED Lights.

Utilizing a powerful, yet efficient 150W LED and a 10" diameter fresnel lens, the manually-operated LEONARDO 10 Tungsten-Balanced LED Fresnel Light from DeSisti can replace a 1500W halogen fixture and provide a versatile spot-to-flood beam angle of 11 to 65°. The specialized tungsten-balanced 3200K chip-on-board LED array offers a high CRI of 90 for accurate color rendition. Also, the unit is DMX controlled with smooth dimming from 0-100%. It has a high efficiency Self Stabilizing Active Cooling system for thermal regulation and a durable, lightweight carbon steel housing to protect the electronics. Additionally, it has a built-in universal 120-240 VAC power supply for worldwide use.
If you own a DeSisti led lights and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the DeSisti LEONARDO 10 Tungsten-Balanced LED Fresnel LT-V90-320.110 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the DeSisti LEONARDO 10 Tungsten-Balanced LED Fresnel LT-V90-320.110:
Specifications
    Light Source 150W LED, lamp life: 50,000 with 70% lumens, tested and certified up to LM80
    Color Temperature 3200K
    CRI 90+
    Beam Angle 11-65°
    Field Angle 18-81°
    Dimming 0-100% via DMX
    Control DMX512
    DMX channels: 1 at 8 bit (dimmer), 2 at 16 bit (dimmer)
    Connectors: 5-Pin XLR DMX in/out
    DMX daisy chaining up to 32 lights
    Cable 9.8' (3.0 m) detachable powerCON cable with bare ends
    Mount Yoke with 1-1/8" (28 mm) spigot
    Operating Voltage 120-240 VAC 50/60 Hz
    Power Consumption 187 W at 120 VAC, 50/60 Hz
    176 W at 230 VAC, 50/60 Hz
    IP Rating IP 22
    Dimensions 16.1 x 14.2 x 22.4" (410 x 362 x 570 mm) including yoke, without spigot
    Lens diameter: 10" (250 mm)
    Weight 29.7 lb (13.5 kg) without barndoors
    The user manual for the DeSisti LEONARDO 10 Tungsten-Balanced LED Fresnel LT-V90-320.110 can be downloaded in .pdf format if it did not come with your new led lights, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other DeSisti users keep a unique electronic library for DeSisti led lightss, where you can use our link to download the user manual for the DeSisti LEONARDO 10 Tungsten-Balanced LED Fresnel LT-V90-320.110.

    The user manual lists all of the functions of the DeSisti LEONARDO 10 Tungsten-Balanced LED Fresnel LT-V90-320.110, all the basic and advanced features and tells you how to use the led lights. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from DeSisti service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the DeSisti LEONARDO 10 Tungsten-Balanced LED Fresnel LT-V90-320.110. User manuals are also available on the DeSisti website under Lighting & Studio - Continuous Lighting - LED Lights.
