User manual for the Digital Bolex D16 PL Mount Cinema Camera 14074-2082
The user manual for the Digital Bolex D16 PL Mount Cinema Camera 14074-2082 provides
necessary instructions for the proper use of the product Professional Video - Digital Cine Cameras.

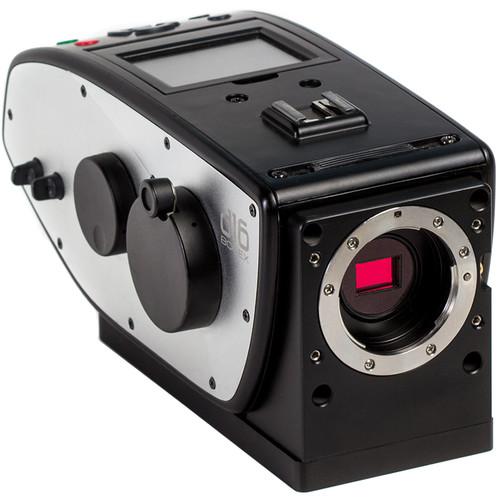

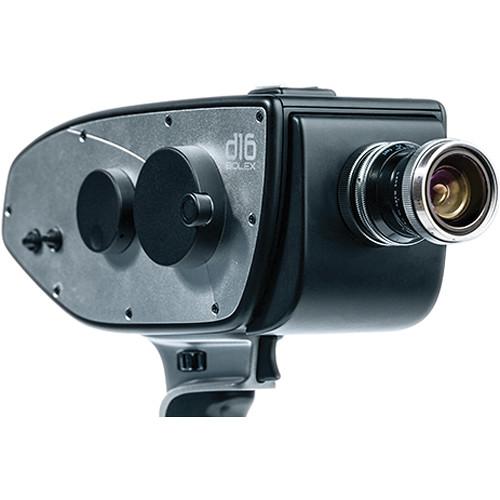

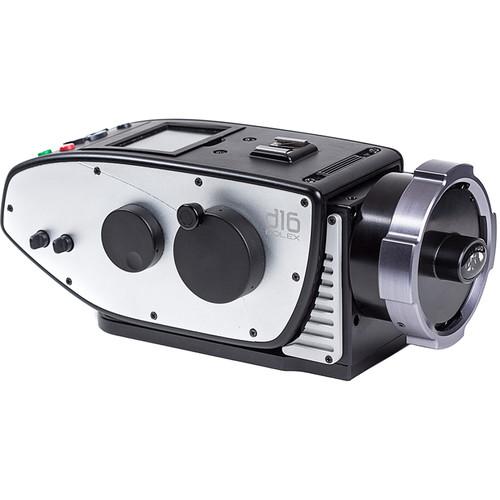

Blending a retro design with modern day Super 16 sensor, the Digital Bolex D16 PL Mount Cinema Camera with Built-In 1TB SSD incorporates a PL mount lens port that supports LWS 15mm Rods. The camera's sensor features a global shutter, which prevents the jello-cam effect on fast moving subjects or when panning. The color sensor delivers 12 stops of dynamic range. The camera features three resolution options, 2048 x 1152 in Super16 mode, 2048 x 1080 in Super16 European mode, and 1920 x 1080 in 16mm mode, recording to Cinema DNG files with 12-bit color depth.

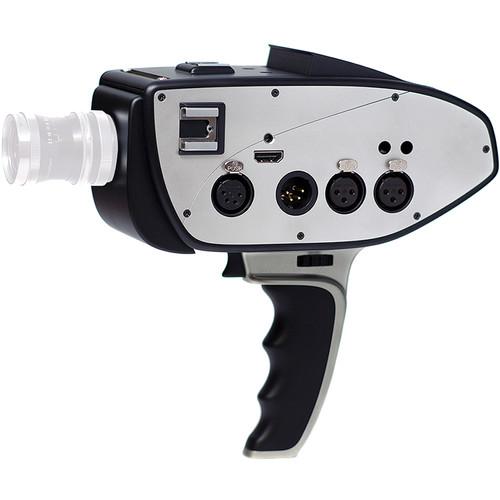

You can shoot at 23.98, true 24, and 25 fps, which allows you to shoot sync sound frame rates for broadcast, cinema and European productions. The camera will output 1920 x 1080 via its HDMI output for high quality monitoring, as well as 640 x 480 video via the 1/8" video output jack. Audio is captured via dual 3-pin XLR connectors with phantom power for powering microphones from the camera when needed. The camera records to an internal 1TB enterprise-class SSD or to CF cards via dual CF card slots. A non-removable internal battery can power the camera for approximately 3 to 4 hours, and you can power the camera from an optional external 12-volt battery using the included 4-pin XLR power cable.
|
If you own a Digital Bolex digital cine cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Digital Bolex D16 PL Mount Cinema Camera 14074-2082 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Digital Bolex D16 PL Mount Cinema Camera 14074-2082:
| Lens Mount | PL Mount | | Resolution | Super16 Mode: 2048 x 1152
Super16 Mode EU: 2048 x 1080
16mm Mode: 1920 x 1080 | | Sensor | Kodak 1" CCD sensor | | File Formats | Adobe Cinema DNG | | File Size | 2 to 3 MB per frame in RAW | | Color Spaces | 12-bit 4:4:4 | | Shutter Type | Global | | ISO Rating | 100
200
400 | | LCD Monitor | 320 x 240 | | Tilting Angle Adjustment | 15° | | Recording Media | Internal: Built-in 1 TB SSD | | Audio Format | Balanced 2-Channel 24-bit 48/96kHz | | Input | Audio: 2 x 3-Pin XLR (with phantom power) | | Output | HDMI
Composite
Headphone | | Accessory Shoe | 2 x Cold shoes | | Memory Card Slot | Media Cards: Dual CF cards (minimum speed 400x recommended) | | Auto Shut-Off | 1 or 5 minute settings | | Battery Type | Internal LiPo | | Dimensions (WxHxD) | 3.6 x 3.3 x 7.8" / 91.0 x 84.0 x 199.0 mm | | Weight | Approximately 6.0 lb / 2.7 kg | |
The user manual for the Digital Bolex D16 PL Mount Cinema Camera 14074-2082 can be downloaded in .pdf
format if it did not come with your new digital cine cameras, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Digital Bolex users keep a unique electronic library
for Digital Bolex digital cine camerass,
where you can use our link to download the user manual for the Digital Bolex D16 PL Mount Cinema Camera 14074-2082.
The user manual lists all of the functions of the Digital Bolex D16 PL Mount Cinema Camera 14074-2082,
all the basic and advanced features and tells you how to use the digital cine cameras.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Digital Bolex service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Digital Bolex D16 PL Mount Cinema Camera 14074-2082. User manuals are also
available on the Digital Bolex website under Professional Video - Digital Cine Cameras.
