User manual Digital Juice 7" (17.78 cm) DJ.ARTICULATNG.ARM.7

Operating instructions and pdf manual for use - Digital Juice 7" (17.78 cm) DJ.ARTICULATNG.ARM.7 User manual, User manual Digital Juice 7" (17.78 cm) DJ.ARTICULATNG.ARM.7, Digital, Juice, 7, , 17.78, cm, DJ.ARTICULATNG.ARM.7,


User manual for Digital Juice 7" (17.78 cm) DJ.ARTICULATNG.ARM.7

Overall rating 2.0
Overall Rating: 2.0

40% of respondents would recommend this to a friend.
Digital Juice 7
  • Manufacturer: Digital Juice
  • Basic description and contents of package
  • Product classification: Professional Video - Monitors - Articulating Arms
  • Safety instructions
  • Startup and operation of the articulating arms
  • Tips for setting up your Digital Juice
  • Settings and expert assistance
  • Contact Digital Juice service
  • Troubleshooting
  • Warranty information
  • Price: 60 USD
We recommend checking out our discussion threads on the Digital Juice 7" (17.78 cm) DJ.ARTICULATNG.ARM.7, which address similar problems with connecting and setting up Articulating Arms Digital Juice.



User manual for the Digital Juice 7" (17.78 cm) DJ.ARTICULATNG.ARM.7

The user manual for the Digital Juice 7" (17.78 cm) DJ.ARTICULATNG.ARM.7 provides necessary instructions for the proper use of the product Professional Video - Monitors - Articulating Arms.

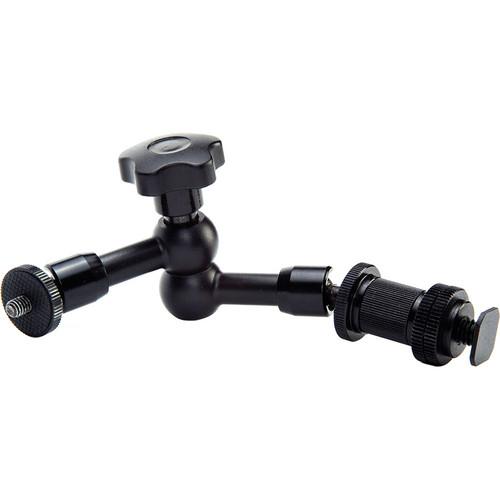

The Digital Juice 7" (17.78 cm) Articulating Arm with Shoe Mount Adapter is a sturdy, compact, and multi-purpose jointed accessory arm that can be used to mount displays, lights, microphones, or other small accessories on a prosumer, tripods, C-stand, as well as on professional camcorders, rigs, and cameras. This articulating arm provides horizontal, vertical, and tilt adjustments for a wide variety of attached accessories. For example, you can attach portable LED lights and monitors to the top of your camera to improve your view of the action and light it more efficiently. Clamp the arm to your tripod to hold your viewfinder monitor or extra lighting and easily adjust for any angle or height required. Because of its small size, this 7" (17.78 cm) arm reduces the torque on your hot shoe, clamp, and arm joints, especially when used with a heavy item. This results in less shaking when shooting as well as less wear and tear on your gear. It is also a great option for stacking together several Digital Juice MiniBurst 128 and 256 LED lights. You can attach the articulating arm to a wide range of cameras via the 1/4-20 top and bottom screws or the included shoe mount adapter.

The unit consists of 2 short pivoting arms of equal length on a central joint. At the end of each arm is another pivoting joint with a 1/4-20 screw mount end. Each joint can be adjusted independently and then all 3 joints can be simultaneously locked down using the single central locking knob. Either end of the articulating arm can be used to attach accessories or to mount the arm to your gear. To adjust the positioning of accessories connected to the arm, you just have to loosen the central locking knob, adjust the position of all the 3 pivoting joints, and then lock down the adjustment by re-tightening the center knob, which affects all the 3 joints so they remain in the desired position.
If you own a Digital Juice articulating arms and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Digital Juice 7" (17.78 cm) DJ.ARTICULATNG.ARM.7 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Digital Juice 7" (17.78 cm) DJ.ARTICULATNG.ARM.7:
Length With Shoe Mount Adapter: 7.25" (18.4 cm)
Without Shoe Mount Adapter: 5.875" (14.9 cm), fully extended
Mounting Compatibility 1/4-20 screw mounts and a shoe mount
Maximum Load Capacity Up to 5 lb (2.27 kg)
Materials Durable solid aluminum construction
Weight 7 oz (198 g)
Packaging Info
Package Weight 0.5 lb
Box Dimensions (LxWxH) 5.6 x 3.1 x 2.1"
The user manual for the Digital Juice 7" (17.78 cm) DJ.ARTICULATNG.ARM.7 can be downloaded in .pdf format if it did not come with your new articulating arms, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Digital Juice users keep a unique electronic library for Digital Juice articulating armss, where you can use our link to download the user manual for the Digital Juice 7" (17.78 cm) DJ.ARTICULATNG.ARM.7.

The user manual lists all of the functions of the Digital Juice 7" (17.78 cm) DJ.ARTICULATNG.ARM.7, all the basic and advanced features and tells you how to use the articulating arms. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Digital Juice service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Digital Juice 7" (17.78 cm) DJ.ARTICULATNG.ARM.7. User manuals are also available on the Digital Juice website under Professional Video - Monitors - Articulating Arms.
