User manual Digital Watchdog DW-VAONE84T VMAX A1 960H, AHD, and DW-VAONE84T

Operating instructions and pdf manual for use - Digital Watchdog DW-VAONE84T VMAX A1 960H, AHD, and DW-VAONE84T User manual, User manual Digital Watchdog DW-VAONE84T VMAX A1 960H, AHD, and DW-VAONE84T, Digital, Watchdog, DW-VAONE84T, VMAX, A1, 960H


User manual for Digital Watchdog DW-VAONE84T VMAX A1 960H, AHD, and DW-VAONE84T

Digital Watchdog DW-VAONE84T VMAX A1 960H, AHD, and DW-VAONE84T
  • Manufacturer: Digital Watchdog
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Digital Video Recorders (DVRs)
  • Safety instructions
  • Startup and operation of the digital video recorders (dvrs)
  • Tips for setting up your Digital Watchdog
  • Settings and expert assistance
  • Contact Digital Watchdog service
  • Troubleshooting
  • Warranty information
  • Price: 695 USD
Digital Watchdog DW-VAONE84T VMAX A1 960H, AHD, and DW-VAONE84T Digital Watchdog DW-VAONE84T VMAX A1 960H, AHD, and DW-VAONE84T Digital Watchdog DW-VAONE84T VMAX A1 960H, AHD, and DW-VAONE84T Digital Watchdog DW-VAONE84T VMAX A1 960H, AHD, and DW-VAONE84T

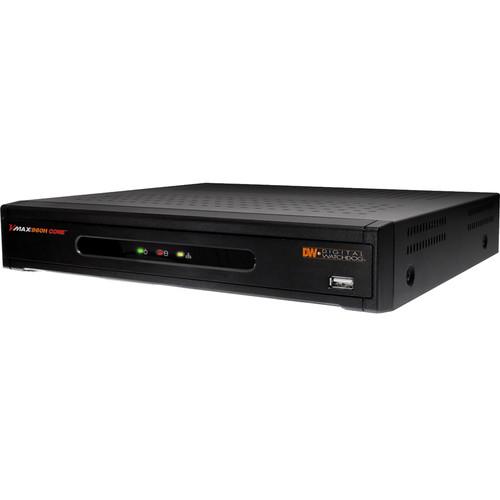

Click to enlarge image

We recommend checking out our discussion threads on the Digital Watchdog DW-VAONE84T VMAX A1 960H, AHD, and DW-VAONE84T, which address similar problems with connecting and setting up Digital Video Recorders (DVRs) Digital Watchdog.



User manual for the Digital Watchdog DW-VAONE84T VMAX A1 960H, AHD, and DW-VAONE84T

The user manual for the Digital Watchdog DW-VAONE84T VMAX A1 960H, AHD, and DW-VAONE84T provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Digital Video Recorders (DVRs).

The VMAX A1 960H, AHD, and TVI Digital Video Recorder from Digital Watchdog offers real-time HD monitoring and recording up to 480 fps at 960H and 720p and 240 fps at 1080p (1920 x 1080) resolution. It comes with an included 4TB HDD. This video recorder supports analog signals up to 960H, TVI, and Analog High Definition (AHD) signals.
If you own a Digital Watchdog digital video recorders (dvrs) and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Digital Watchdog DW-VAONE84T VMAX A1 960H, AHD, and DW-VAONE84T in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Digital Watchdog DW-VAONE84T VMAX A1 960H, AHD, and DW-VAONE84T:
Specifications
Video
Video Input 8 channels
Video Signals Analog signal up to 960H, AHD, TVI
Frame Rate 1 to 30 fps
Resolution 1080p, 960 x 480, 960 x 240, 480 x 240
Video Output HD Output, VGA
Audio Input 1
Audio Output 1
Audio Codec PCM
Alarm Sensor Input 4
Alarm Out 1
Operating System Embedded Linux
Serial 1 x RS485 for PTZ camera and controller
2 x USB 2.0
Menu Display Graphical User Interface (GUI)
Control IR remote control, USB mouse
Screen Display 1, 4, 9 sequence
Screen Resolution 1920 x 1080, 1280 x 1024, 1024 x 768
Performance
Compression H.264
Recording Mode Schedule, event, time-lapse, panic, continuous, pre & post event, motion, recording configuration per channel
Pre Recording 1 to 5 seconds
Post Recording 5 to 15 seconds
Recording Rate 240 fps @ CIF, 480, D1, 960H, 720p
120 fps @ 1080p AHD
Resolutions Recording: All analog resolutions up 960H, AHD 720p, and 1080p
Playback Rate Up to 30 fps per channel in single-channel view mode
Up to 15 fps per channel in multi-channel view mode
Playback Resolution All analog resolutions up to 960H, AHD 720p, and 1080p
Fast Forward Functions: x1/16, x1/8, x1/4, x1/2, x1, x2, x4, x8, x16, x32
Playback Functions First data, last data, date/time, record table, calendar, bookmark, system log
Storage
HDD Interface 1 HDD
Storage 4 TB
Internal HDD Maximum: Up to 6 TB (1 HDD x 6 TB)
External Storage USB flash drive, USB HDD, DVD
Interface Type HDD: SATA-II, SATA-III
Health Reporting / Notifications HDD: Temperature, S.M.A.R.T. with email notifications
Camera Color Control: Brightness, contrast, saturation, hue
Digital Zoom Live
Software Upgrade USB flash drive, network upgrade, FTP remote upgrade
Mobile Client OS Platform Mobile app for Apple & Android smart phones & tablets
Channel Covert: Live and playback
Network
Network Connection Ethernet (1 x Gigabit 10/100/1000 Gb/s)
User Connections Maximum: 10 simultaneous connections
Transmission Speed Live:

240 fps @ 960H, D1, and 720p
120 fps @ 1080p
Protocols Static, DDNS, DHCP, uPnP, RTSP
Web Viewer Live, playback, and configuration up to 10 multiple connections
Client Monitoring Software: MAC (Apple software), pivot (CMS software)
General
Operating Temperature 41 to 104°F (5 to 40°C)
Operating Humidity <80% (non-condensing)
Power Requirement 12 VDC
Power Consumption 45 W
Dimensions 11.02 x 9.65 x 1.89" (28.00 x 24.50 x 4.80 cm)
Weight 5.56 lb (2.52 kg)
The user manual for the Digital Watchdog DW-VAONE84T VMAX A1 960H, AHD, and DW-VAONE84T can be downloaded in .pdf format if it did not come with your new digital video recorders (dvrs), although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Digital Watchdog users keep a unique electronic library for Digital Watchdog digital video recorders (dvrs)s, where you can use our link to download the user manual for the Digital Watchdog DW-VAONE84T VMAX A1 960H, AHD, and DW-VAONE84T.

The user manual lists all of the functions of the Digital Watchdog DW-VAONE84T VMAX A1 960H, AHD, and DW-VAONE84T, all the basic and advanced features and tells you how to use the digital video recorders (dvrs). The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Digital Watchdog service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Digital Watchdog DW-VAONE84T VMAX A1 960H, AHD, and DW-VAONE84T. User manuals are also available on the Digital Watchdog website under Surveillance - Surveillance Video - Digital Video Recorders (DVRs).
