User manual Digital Watchdog Star-Light AHD 2MP Analog High DWC-D4783WD

Operating instructions and pdf manual for use - Digital Watchdog Star-Light AHD 2MP Analog High DWC-D4783WD User manual, User manual Digital Watchdog Star-Light AHD 2MP Analog High DWC-D4783WD, Digital, Watchdog, Star-Light, AHD, 2MP, Analog, High,


User manual for Digital Watchdog Star-Light AHD 2MP Analog High DWC-D4783WD

Digital Watchdog Star-Light AHD 2MP Analog High DWC-D4783WD
  • Manufacturer: Digital Watchdog
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Wired Analog & HD Cameras
  • Safety instructions
  • Startup and operation of the wired analog & hd cameras
  • Tips for setting up your Digital Watchdog
  • Settings and expert assistance
  • Contact Digital Watchdog service
  • Troubleshooting
  • Warranty information
  • Price: 185 USD
We recommend checking out our discussion threads on the Digital Watchdog Star-Light AHD 2MP Analog High DWC-D4783WD, which address similar problems with connecting and setting up Wired Analog & HD Cameras Digital Watchdog.



User manual for the Digital Watchdog Star-Light AHD 2MP Analog High DWC-D4783WD

The user manual for the Digital Watchdog Star-Light AHD 2MP Analog High DWC-D4783WD provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired Analog & HD Cameras.

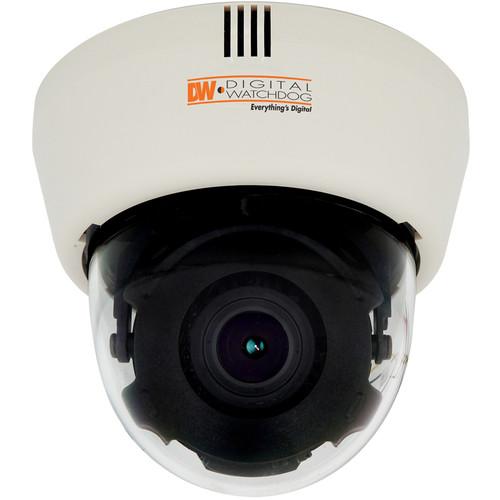

The Star-Light AHD 2MP Analog High Definition Day/Night Camera from Digital Watchdog features a 1/3” CMOS sensor and captures Full HD images at 30 fps. This camera allows you to transmit crystal-clear 1080p resolution videos via coaxial cables. The camera offers 2.1MP resolution along with features such as P-Iris Lens, Double Shutter Wide Dynamic Range (WDR), and Smart DNR 3D Digital Noise Reduction. The camera is engineered to work with VMAX AHD DVRs, offering an easy upgrade from analog to high definition surveillance using existing infrastructure for a cost-effective, high resolution surveillance solution.
If you own a Digital Watchdog wired analog & hd cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Digital Watchdog Star-Light AHD 2MP Analog High DWC-D4783WD in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Digital Watchdog Star-Light AHD 2MP Analog High DWC-D4783WD:
Specifications
Image Sensor Panasonic 1/3" CMOS Progressive Scan
Active Pixels 1944 (H) x 1092 (V)
Frequency 60 Hz / 50 Hz
Signal 2 MP AHD
Synchronization Internal
Resolution 1920 x 1080 (1080p)
Minimum Illumination F1.4 (30IRE): 0.35 lux (Color)
S/N Ratio 55 dB
Video Output AHD 1080p, 30 fps / 720p, 60 fps / 720p, 30 fps
Alarm Output 1 x Alarm Output
Lens
Focal Length 2.8 to 12 mm
Lens Type Auto Focus P-Iris
Operational
Shutter Speed 1/30 (25) to 1/30,000
Backlight Adjustment Off / On
Sense-Up Star-Light: Off, x2 - x32
Wide Dynamic Range Off / On
Digital Noise Reduction Off, Low, Middle, High
White Balance Auto / Auto-Ex / Preset / Manual
Day/Night Mode Day / Night / Auto
Mirror Mirror / Flip: Yes
AGC Maximum 60 dB
Motion Operations Motion Detection
Programmable Privacy Zones 16 Privacy Zones
Sharpness 0 to 10
Gamma 0.45 to 0.75
Built-in RS485 / UTP: PELCO D / PELCO C
Digital Zoom x1 to x16
Electrical
Power Requirements 12 VDC / 24 VAC Dual Voltage
Power Consumption 12 VDC: 3.43 W, 286 mA
24 VAC: 3.3 W, 137 mA
Environmental
Operating Temperature -4 to 122°F (-20 to 50°C)
Operating Humidity Less than 90% (non-condensing)
Certifications FCC, CE, ROHS
Mechanical
Material Plastic
Dimensions (Ø x H) 4.2 x 3.8" (10.8 x 9.7 cm)
Weight 0.5 lb (0.2 kg)
The user manual for the Digital Watchdog Star-Light AHD 2MP Analog High DWC-D4783WD can be downloaded in .pdf format if it did not come with your new wired analog & hd cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Digital Watchdog users keep a unique electronic library for Digital Watchdog wired analog & hd camerass, where you can use our link to download the user manual for the Digital Watchdog Star-Light AHD 2MP Analog High DWC-D4783WD.

The user manual lists all of the functions of the Digital Watchdog Star-Light AHD 2MP Analog High DWC-D4783WD, all the basic and advanced features and tells you how to use the wired analog & hd cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Digital Watchdog service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Digital Watchdog Star-Light AHD 2MP Analog High DWC-D4783WD. User manuals are also available on the Digital Watchdog website under Surveillance - Surveillance Video - Wired Analog & HD Cameras.
