User manual for Digital Watchdog VMAX 960H Flex 16-Channel DVR DW-VF960H164T
- Manufacturer: Digital Watchdog
- Basic description and contents of package
- Product classification: Surveillance - Surveillance Video - Digital Video Recorders (DVRs)
- Safety instructions
- Startup and operation of the digital video recorders (dvrs)
- Tips for setting up your Digital Watchdog
- Settings and expert assistance
- Contact Digital Watchdog service
- Troubleshooting
- Warranty information

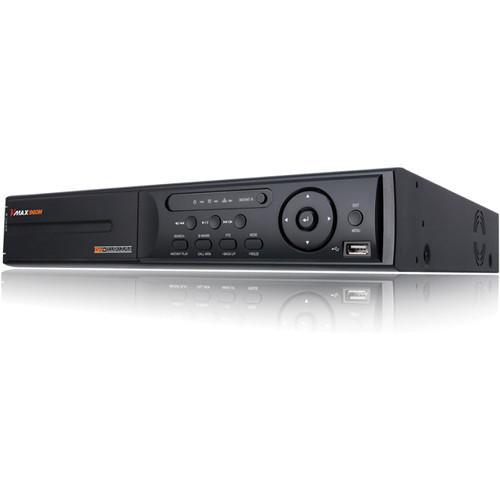

Click to enlarge image
|
We recommend checking out our discussion threads on the Digital Watchdog VMAX 960H Flex 16-Channel DVR DW-VF960H164T,
which address similar problems with connecting and setting up Digital Video Recorders (DVRs) Digital Watchdog.
|
User manual for the Digital Watchdog VMAX 960H Flex 16-Channel DVR DW-VF960H164T
The user manual for the Digital Watchdog VMAX 960H Flex 16-Channel DVR DW-VF960H164T provides
necessary instructions for the proper use of the product Surveillance - Surveillance Video - Digital Video Recorders (DVRs).
Connect up to 16 cameras to the $VMAX 960H Flex 16-Channel DVR from Digital Watchdog to record, archive, and view surveillance footage. The DVR includes a 4TB pre-installed hard drive disk for storing information captured by the connected cameras. The standalone records footage in real time at 960H, D1, 2CIF, and CIF resolutions. Using H.264 video and ADPCM audio compression, the DVR works to provide clear footage when distributing the content. Firmware upgrades, Single-Touch Backup and Event management, True DVR Health Check, along with other DVR features can be controlled using the DVR's front panel, or with the included USB mouse or IR remote control.
With a built-in DVD-RW and two USB ports, information can be removed from the device and stored onto a disc or other storage device. An integrated 4 channel Signal Extender can be used to amplify the video signal and extend video coverage up to 2950' between camera and DVR (from CH1 to CH4 only).
|
If you own a Digital Watchdog digital video recorders (dvrs) and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Digital Watchdog VMAX 960H Flex 16-Channel DVR DW-VF960H164T in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Digital Watchdog VMAX 960H Flex 16-Channel DVR DW-VF960H164T:
| CMS | ACS (Client S/W), MAC (Apple S/W), Pivot (CMS S/W), DW Spectrum (Synergy S/W) | | Protocols | Static, DDNS, DHCP | | Mobile Applications (iOS/Android) | iPhones, Android Phones, Blackberry (up to Version 8), iPads, Android Tablets, Kindle Fire | | Transmission Speed | Live: 480/400 fps @ D1 (NTSC/PAL) | | Web Viewer | Operations: Live, Playback, Remote Configuration, up to 10 simultaneous connections (in Live)
Platforms: Internet Explorer | | Network Connection | Ethernet (1 x Gigabit 10/100/1000 Mb/s) | | Image Controls | Brightness, Contrast, Saturation, and Hue | | Covert Video | Live and playback | | Playback Functions | x1/16, x1/8, x1/4, x1/2, x1, x2, x4, x8, x16, x32, First Data, Last Data, Frame-by-Frame (Panoramic) | | Playback Rate | 480/400 fps (NTSC/ PAL) at all resolutions | | Playback Resolution | Full 960H real-time playback, 30 fps at all resolutions | | Recording Modes | Schedule, Event, Time-Lapse, Panic, Continuous, Pre & Post Event, Motion, Recording Configuration per channel | | Search Modes | Date & Time, Record Table, Calendar, Event Preview, Bookmark, Play from Search, System & Event Logs, Panoramic Search, Single Channel Playback in Live | | Special Features | FaceStamp, 5x Signal Intensifier, Dealer's Portal, True DVR Health Check | | Firmware Upgrade | USB Drive, Network Upgrade, FTP Remote Upgrade | | Pre-alarm Record | Yes, 0 to 15 sec | | Digital Zoom | Live and playback | | External Devices | Export Devices: USB Flash Drive, USB HDD, DVD-RW | | Operating System | Linux embedded | | Recording Resolution | 960H | | Screen Resolution | 1080p, 720p, 1280 x 1024, 1024 x 768, 720 x 480 (NTSC), 720 x 576 (PAL) | | Recording Rate | 480/400 fps (NTSC/ PAL) at all resolutions | | Display Frame Rate | 30 fps | | Display Resolution | 960H, D1, 2CIF, CIF (NTSC/PAL) | | Compression Type | H.264 | | Video Input / Output | 16 x Channels
1 x HDMI output
1 x Composite output
1 x VGA
1 x Spot monitor output | | Sensor & Alarm i/o | 16 x Sensor inputs 2 x Alarm outputs | | Audio Codec | ADPCM | | Audio Input/Output | 16 x Inputs
2 x Outputs | | Display Modes | 1, 4, 9, 16, single channel playback, sequence | | Looping Outputs (BNC) | Optional (VLOOP Accessory not included) | | Serial Interface | 1 x RS232
2 x RS485 for PTZ camera & controller
2 x USB 2.0 | | User Interface Control | IR remote control, USB mouse, front panel buttons | | HDD Interface | Up to 2 HDD, SATA-II, SATA-III | | Storage | Two bays supporting up to 4 TB HDD each; 4 TB pre-installed | | Power Requirements | 12 VDC, 6.67 A D/C | | Power Consumption | 80.04 W | | Operating Temperature & Humidity | 41 to 104°F (5 to 40°C), less than 80% humidity | | Dimensions | 14.3 x 2.6 x 14.0" (36.2 x 6.6 x 35.6 cm) | | Weight | 8.4 lb (3.8 kg) | |
