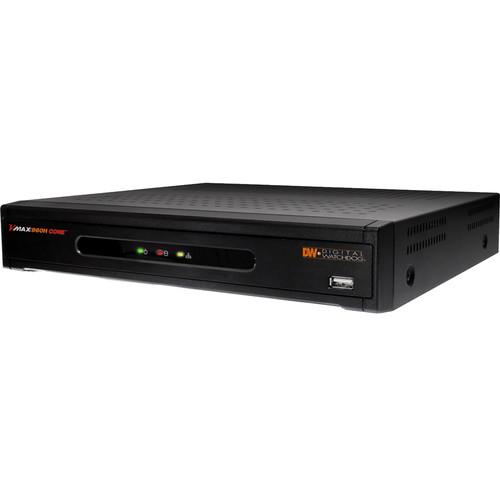

Click to enlarge image
|
We recommend checking out our discussion threads on the Digital Watchdog VMAX A1 Series 16-Channel 1080p DW-VAONE1612T,
which address similar problems with connecting and setting up Digital Video Recorders (DVRs) Digital Watchdog.
|
User manual for the Digital Watchdog VMAX A1 Series 16-Channel 1080p DW-VAONE1612T
The user manual for the Digital Watchdog VMAX A1 Series 16-Channel 1080p DW-VAONE1612T provides
necessary instructions for the proper use of the product Surveillance - Surveillance Video - Digital Video Recorders (DVRs).
The VMAX A1 Series 16-Channel 1080p DVR from Digital Watchdog offers real-time HD monitoring and recording up to 480 fps at 960H and 720p, and 240 fps at 1080p (1920 x 1080) resolution. It comes with an included 12TB HDD. This video recorder supports analog signals up to 960H, TVI, and Analog High Definition (AHD) signals.
|
If you own a Digital Watchdog digital video recorders (dvrs) and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Digital Watchdog VMAX A1 Series 16-Channel 1080p DW-VAONE1612T in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Digital Watchdog VMAX A1 Series 16-Channel 1080p DW-VAONE1612T:
| Video Input | 16 channels | | Video Signals | Analog signal up to 960H, AHD, TVI | | Frame Rate | 1 to 30 fps | | Resolution | 1080p, 960 x 480, 960 x 240, 480 x 240 | | Video Output | HD Output, VGA | | Audio Input | 1 | | Audio Output | 1 | | Audio Codec | PCM | | Alarm Sensor Input | 4 | | Alarm Out | 1 | | Operating System | Embedded Linux | | Serial | 1 x RS485 for PTZ camera and controller
2 x USB 2.0 | | Menu Display | Graphical User Interface (GUI) | | Control | IR remote control, USB mouse | | Screen Display | 1, 4, 9, 16 sequence | | Screen Resolution | 1920 x 1080, 1280 x 1024, 1024 x 768 | | Compression | H.264 | | Recording Mode | Schedule, event, time-lapse, panic, continuous, pre & post event, motion, recording configuration per channel | | Pre Recording | 1 to 5 seconds | | Post Recording | 5 to 15 seconds | | Recording Rate | 480 fps @ CIF, 480, D1, 960H, 720p
240 fps @ 1080p AHD | | Resolutions | Recording: All analog resolutions up 960H, AHD 720p, and 1080p | | Playback Rate | Up to 30 fps per channel in single-channel view mode
Up to 15 fps per channel in multi-channel view mode | | Playback Resolution | All analog resolutions up 960H, AHD 720p, and 1080p | | Fast Forward | Functions: x1/16, x1/8, x1/4, x1/2, x1, x2, x4, x8, x16, x32 | | Playback Functions | First data, last data, date / time, record table, calendar, bookmark, system log | | HDD Interface | 2 HDD | | Storage | 12 TB | | Internal HDD | Maximum: Up to 12 TB (2 HDD x 6 TB) | | External Storage | USB flash drive, USB HDD, DVD | | Interface Type | HDD: SATA-II, SATA-III | | Health Reporting / Notifications | HDD: Temperature, S.M.A.R.T. with email notifications | | Camera | Color Control: Brightness, contrast, saturation, hue | | Digital Zoom | Live | | Software Upgrade | USB flash drive, network upgrade, FTP remote upgrade | | Mobile Client OS Platform | Mobile App for Apple & Android smart phones & tablets | | Channel | Covert: Live and playback | | Network Connection | Ethernet (1 x Gigabit 10/100/1000 Gb/s) | | User Connections | Maximum: 10 simultaneous connections | | Transmission Speed | Live:
480 fps @ 960H, D1, and 720p
240 fps @ AHD 1080p | | Protocols | Static, DDNS, DHCP, uPnP, RTSP | | Web Viewer | Live, playback, and configuration up to 10 multiple connections | | Client Monitoring | Software: MAC (Apple software), pivot (CMS software) | | Operating Temperature | 41 to 104°F (5 to 40°C) | | Operating Humidity | <80% (non-condensing) | | Power Requirement | 12 VDC | | Power Consumption | 60 W | | Dimensions | 14.1 x 14.0 x 2.6" (36.0 x 35.6 x 6.6 cm) | | Weight | 9.83 lb (4.45 kg) | |
The user manual for the Digital Watchdog VMAX A1 Series 16-Channel 1080p DW-VAONE1612T can be downloaded in .pdf
format if it did not come with your new digital video recorders (dvrs), although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Digital Watchdog users keep a unique electronic library
for Digital Watchdog digital video recorders (dvrs)s,
where you can use our link to download the user manual for the Digital Watchdog VMAX A1 Series 16-Channel 1080p DW-VAONE1612T.
The user manual lists all of the functions of the Digital Watchdog VMAX A1 Series 16-Channel 1080p DW-VAONE1612T,
all the basic and advanced features and tells you how to use the digital video recorders (dvrs).
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Digital Watchdog service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Digital Watchdog VMAX A1 Series 16-Channel 1080p DW-VAONE1612T. User manuals are also
available on the Digital Watchdog website under Surveillance - Surveillance Video - Digital Video Recorders (DVRs).
