User manual for Digital Watchdog VMAX IP 4-Channel Linux NVR (1TB) DW-VIP41T
- Manufacturer: Digital Watchdog
- Basic description and contents of package
- Product classification: Surveillance - Surveillance Video - Network Video Recorders (NVRs)
- Safety instructions
- Startup and operation of the network video recorders (nvrs)
- Tips for setting up your Digital Watchdog
- Settings and expert assistance
- Contact Digital Watchdog service
- Troubleshooting
- Warranty information

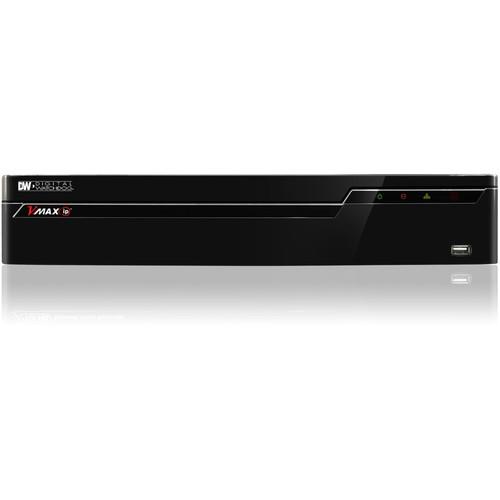

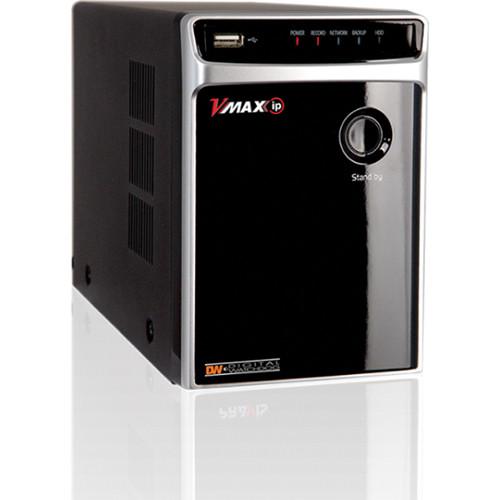

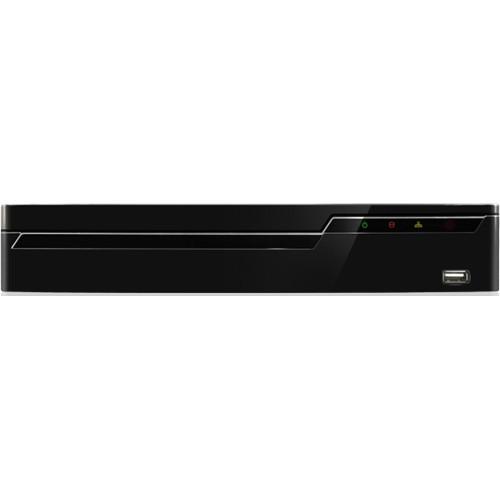

Click to enlarge image
|
We recommend checking out our discussion threads on the Digital Watchdog VMAX IP 4-Channel Linux NVR (1TB) DW-VIP41T,
which address similar problems with connecting and setting up Network Video Recorders (NVRs) Digital Watchdog.
|
User manual for the Digital Watchdog VMAX IP 4-Channel Linux NVR (1TB) DW-VIP41T
The user manual for the Digital Watchdog VMAX IP 4-Channel Linux NVR (1TB) DW-VIP41T provides
necessary instructions for the proper use of the product Surveillance - Surveillance Video - Network Video Recorders (NVRs).
The 1TB VMAX IP 4-Channel Linux NVR from Digital Watchdog includes an embedded PoE switch to power the IP cameras directly from the NVR. The NVR provides full real-time HD 1080p live streaming and recording, network monitoring, auto and remote firmware upgrade, and simple DDNS service and event notifications via e-mail or text. The cameras and NVR are natively integrated to assure complete compatibility between the cameras and the recorder. The cameras are controlled completely from the NVR, for quick and easy installation and set-up.
|
If you own a Digital Watchdog network video recorders (nvrs) and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Digital Watchdog VMAX IP 4-Channel Linux NVR (1TB) DW-VIP41T in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Digital Watchdog VMAX IP 4-Channel Linux NVR (1TB) DW-VIP41T:
| Video Input | 4 IP Channels | | Frame Rate | 1 to 30 fps | | Resolution | First Stream: 1080p (1920 x 1080), 720p (1280 x 720), 640 x 360
Second Stream: 640 x 360 | | Video Output | HD output | | Display Resolution | Options: 1920 x 1080p / 1280 x 720p / 1280 x 1024 / 1024 x 768 | | Screen Display | Mode: 1, 4 auto sequence | | Alarm | Sensor Input: 4
Alarm Output: 1 | | Operating System | Embedded Linux | | User Interface | Menu Display: GUI (Graphical User Interface)
Control Methods: USB mouse (included) | | Recording | Compression: H.264
Recording Mode: Schedule, event, panic, continuous, pre & post event, motion, recording configuration per channel
Pre Recording: 3 to 5 seconds
Post Recording: 5 to 15 seconds
Recording Rate: First Stream: Maximum 120 fps @ 1080p
Second Stream: Maximum 120 fps @ 640 x 360 | | Playback | Playback Rate: Maximum 30 fps @ 1080p
Fast Forward Functions: x1/16, x1/8, x1/4, x1/2, x1, x2, x4, x8, x16, x32 Search Modes: Date & Time, first data, last data, calendar, bookmark, system & event logs | | Storage | HDD Interface: Up to 2 HDD
Maximum Internal HDDs: 1 TB
External Storage: USB Flash Drive and HDD
HDD Interface Type: SATA I / II
HDD Health Check: HDD S.M.A.R.T. with email notifications | | Features | Local PoE Support: 8 ports (Built-in, 802.3AF) Power Cameras via the NVR
Digital Zoom: Yes (Live & Playback)
Software Upgrade: USB Flash Drive, Network Upgrade, FTP Remote Upgrade
Remote Client: Mobile App for Apple & Android Smart Phones & Tablets
Covert Channel: Yes (Live & Playback)
System Monitoring: Connection failure, recording failure, fan failure, disk error, network traffic monitoring, camera status and connection log | | Network Connection | 1x 10/100/1000Mbps WAN port
8 x 10/100Mbps LAN port (PoE Port) | | Streaming | Transmission Speed Live: 30 fps @ 640 x 360 / 30 fps @ 1080p
Protocols: TCP/IP, DHCP, NTP, HTTP, DDNS, RTP, RTSP, FTP, SMTP, ONVIF, UPnP | | Access | Web Viewer: Live, playback, and configuration up to 5 multiple connections
Remote Client: Mobile app for Apple & Android smartphones, and tablets
Monitoring Software: Pivot (CMS S/W) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Humidity | Less than 90% (non-condensing) | | Electrical | Power Requirement
Main: 12 VDC
PoE: 48 VDC
Power Consumption
Main: 60 W, 5 A
PoE: 120 W, 2.5 A
| | Dimensions | 14.2 x 2.6 x 14.0" (360.6 x 66.0 x 355.6 mm) | | Weight | 6.43 lb (2.92 kg) | |
The user manual for the Digital Watchdog VMAX IP 4-Channel Linux NVR (1TB) DW-VIP41T can be downloaded in .pdf
format if it did not come with your new network video recorders (nvrs), although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Digital Watchdog users keep a unique electronic library
for Digital Watchdog network video recorders (nvrs)s,
where you can use our link to download the user manual for the Digital Watchdog VMAX IP 4-Channel Linux NVR (1TB) DW-VIP41T.
The user manual lists all of the functions of the Digital Watchdog VMAX IP 4-Channel Linux NVR (1TB) DW-VIP41T,
all the basic and advanced features and tells you how to use the network video recorders (nvrs).
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Digital Watchdog service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Digital Watchdog VMAX IP 4-Channel Linux NVR (1TB) DW-VIP41T. User manuals are also
available on the Digital Watchdog website under Surveillance - Surveillance Video - Network Video Recorders (NVRs).
