DJI Phantom 3 4K CPPT000308
  • Manufacturer: DJI
  • Basic description and contents of package
  • Product classification: Camcorders - Aerial Imaging & Drones - Aerial Imaging Platforms & Drones
  • Safety instructions
  • Startup and operation of the aerial imaging platforms & drones
  • Tips for setting up your DJI
  • Settings and expert assistance
  • Contact DJI service
  • Troubleshooting
  • Warranty information
  • Price: 799 USD

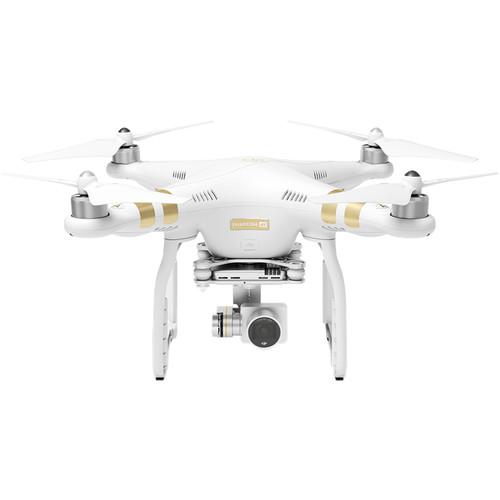

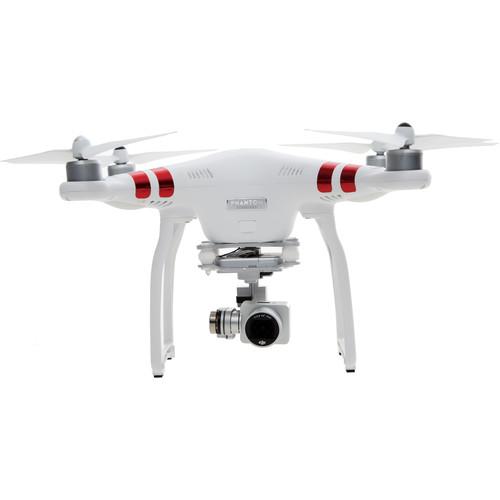

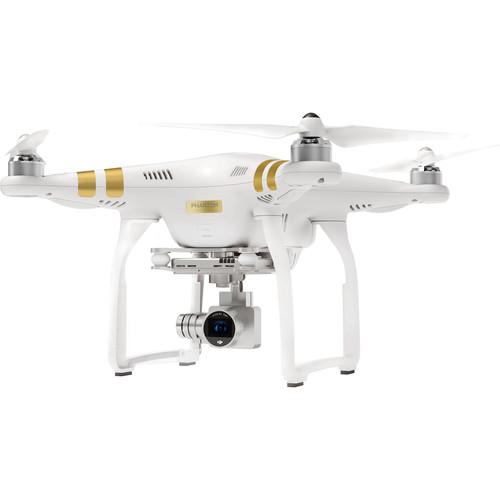

DJI Phantom 3 4K CPPT000308 DJI Phantom 3 4K CPPT000308 DJI Phantom 3 4K CPPT000308 DJI Phantom 3 4K CPPT000308 DJI Phantom 3 4K CPPT000308 DJI Phantom 3 4K CPPT000308
Click to enlarge image

We recommend checking out our discussion threads on the DJI Phantom 3 4K CPPT000308, which address similar problems with connecting and setting up Aerial Imaging Platforms & Drones DJI.



User manual for the DJI Phantom 3 4K CPPT000308

The user manual for the DJI Phantom 3 4K CPPT000308 provides necessary instructions for the proper use of the product Camcorders - Aerial Imaging & Drones - Aerial Imaging Platforms & Drones.

Built from the ground up for aerial filmmaking and photography, the Phantom 3 4K from DJI features an integrated 12MP camera attached to a 3-axis gimbal. Apart from 12MP JPEG or RAW photos, the camera can record cinema-spec DCI 4K (4096 x 2160) at 24 fps and UDH 4K (3840 x 2160) at 30 fps. With the included flight battery, the quadcopter can fly for up to 25 minutes, depending on conditions.

A 2.4 GHz Wi-Fi link with range extender allows you to use the venerable DJI Go app for live HD monitoring and camera control. Additionally, you can access intelligent flight control features tailored to needs of the filmmaker, including Follow Me, Course Lock, Home Lock, and waypoint navigation. The Wi-Fi extender as well as the included handheld controller (transmitter) feature a line-of-sight range of up to 3937'.
If you own a DJI aerial imaging platforms & drones and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the DJI Phantom 3 4K CPPT000308 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the DJI Phantom 3 4K CPPT000308:
Specifications
Performance
Maximum Speed Horizontal: 52.5' ft/second 16 m/second (Attitude Mode, no wind)

Ascent: 16.4 ft/second / 5 m/second
Descent: 9.8 ft/second /3 m/second
Hover Accuracy Horizontal:±4.9' / 1.5 m
Flight Time Up to 25 minutes
Flight Ceiling Above Sea Level: 19685' / 6000 m
Above Ground Level (AGL): 524.9' / 160 m (software restricted)
Flight Control System
GPS Mode GPS
Vision Positioning
Vision Positioning < 26.2 ft/second / 8 m/second (6.6' / 2 m above ground level)
Altitude Range 19.7 to 118.1" / 50 to 300 cm
Operating Range 19.7 to 118.1" / 50 to 300 cm
Operating Environment Brightly lit ( > 15 lux) patterned surfaces
Transmitter
Model GL358wB
Frequency 5.725 to 5.825 GHz
Range 3937' / 1200 m (line-of-sight: 400' / 120m AGL)
Transmit Power 19 dBm
Working Current 300 mA at 7.4 V
Mobile Device Holder Device Compatibility: Tablets and smartphones
Battery Chemistry: Lithium polymer (LiPo)
Capacity: 2600 mAh
Configuration: 2S
Operating Temperature 32 to 104°F / 0 to 40°C
Wi-Fi
Frequency 2.402 to 2.472 GHz
Range 3937' / 1200 m (line-of-sight; 400' / 120m AGL)
Transmit Power 27 dBm
Camera
Sensor Make: Sony EXMOR
Size: 1/2.3"
Resolution: 12.76 MP (12.4 MP effective)
Lens Aperture: f/2.8
FOV: 94°
Focal Length: 20 mm (35 mm equivalent)
Elements: 9
Focus: 0 to ∞
Photo Resolution Up to 12 MP (4000 x 3000)
ISO Range Video: 100 to 3200



Photo: 100 to 1600
Video Resolutions DCI 4K (4096 x 2160): 24, 25 fps
UHD 4K (3840 x 2160):24, 25, 30 fps
1080p (1920 x 1080): 24, 25, 30, 48, 50, 60 fps
720p (1280 x 720): 24, 25, 30, 48, 50, 60 fps
Photo Modes Single Shot

Burst Shooting: 3/5/7 shots
Auto Exposure Bracketing (AEB): 3/5 Bracketed Frames at 0.7 EV Bias
Time-lapse
Shutter Speed 8 to 1/8000 second
File Formats Video: MPEG-4 AVC/H.264 in MOV wrapper (up to 60 Mbps)
Photo: JPEG, DNG RAW
Recording Media Type: microSD/SDXC card up to 64 GB

Note: Class 10 or UHS-1 rating or faster required
Operating Temperature 32 to 90°F / 0 to 32°C
Gimbal
Number of Axes 3 (pitch, roll, yaw)
Control Range Pitch: -90 to +30°
Flight Battery
Model PH3-4480
Chemistry Lithium polymer (LiPo)
Capacity 4480 mAh
68 Wh
Configuration 4S
Voltage 15.2 V
Weight 12.9 oz / 365 g
Maximum Charging Power 100 W
Operating Temperature 14 to 104°F / -10 to 40°C
Weight 12.9 oz / 365 g
Charger Voltage: 17.4 V
Rated Power: 57 W
Mobile App
Name DJI Go
System Requirements Android or iOS mobile device (see DJI website for latest device compatibility list)
Recommended Devices iOS: iPhone 5s, iPhone 6, iPhone 6 Plus, iPad Air, iPad Air Wi-Fi and Cellular, iPad mini 2, iPad mini 2 Wi-Fi and Cellular, iPad Air 2, iPad Air 2 Wi-Fi and Cellular, iPad mini 3, iPad mini 3 Wi-Fi and Cellular.

Note: This app is optimized for iPhone 5s, iPhone 6, and iPhone 6 Plus

Android: Samsung Galaxy Tab S T705C, Samsung S6, Samsung S5, Samsung Galaxy Note 4, Samsung Galaxy Note 3, Google Nexus 9, Google Nexus 7 II, Ascend Mate 7, Nubia Z7 mini, Sony Z3 Xperia, Mi Pad 3, Mi Pad
General
Operating Temperature 32 to 104°F / 0 to 40°C
Dimensions Diagonal Size: 23.2" / 590 mm
Weight With Battery and Propellers: 2.8 lb / 1280 g
Packaging Info
Package Weight 8.65 lb
Box Dimensions (LxWxH) 15.3 x 14.4 x 8.3"
