User manual for the DJI Spreading Wings S900 with Zenmuse Z15-BMPC CB.SB.000015

The user manual for the DJI Spreading Wings S900 with Zenmuse Z15-BMPC CB.SB.000015 provides necessary instructions for the proper use of the product Camcorders - Aerial Imaging & Drones - Aerial Imaging Platforms & Drones.

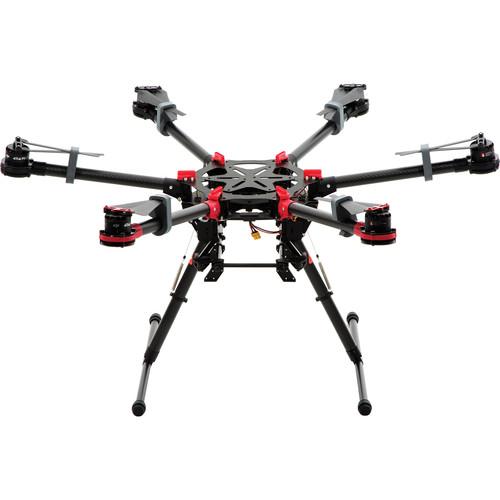

Supporting a total takeoff weight of 18 pounds, the Spreading Wings S900 with Zenmuse Z15-BMPC Gimbal is a hexcopter from DJI that allows you to capture aerial video using a separately available Blackmagic Pocket Camera camera. It features carbon fiber frame arms to cut down on weight, which fold down for storage and transport. The included Z15-BMPC gimbal helps keep the camera stabilized and isolated from vibration, and allows you to pan, tilt, and even cant the camera for more dynamic shots. Used with a 6S 12000mAh battery, available separately, the S900 can fly for up to 18 minutes fully laden.

This version of the S900 features the DJI WooKong-M flight control system, a collection of hardware which acts as the hexcopter's brains. It takes data from the GPS, gyros, barometer, and other sensors while applying any pilot inputs to help ensure stable flying and smooth video. The WooKong-M can be configure for different flying styles and pilot skill levels, with features like Intelligent Orientation Control (IOC), Point of Interest (POI), one motor fail protection, and a Return-to-Home fail safe in the event contact is lost with the transmitter. Thanks to CAN-bus peripheral ports, it can integrate other accessories, such as the iPad Ground Control Station (GCS).



The S900 is not a ready-to-fly (RTF) aircraft. It does require some assembly and a transmitter (hand-held radio controller) and batteries are not included. Transmitters the WooKong supports include ma wide range PCM or 2.4 GHz models that have at least 7 channels. For power, it uses LiPo flight batteries in 6S configuration, with a 10,000 to 15,000 mAh capacity, and requires a discharge rate of at least 15C.
If you own a DJI aerial imaging platforms & drones and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the DJI Spreading Wings S900 with Zenmuse Z15-BMPC CB.SB.000015 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for DJI Spreading Wings S900 with Zenmuse Z15-BMPC CB.SB.000015Download user manual for DJI Spreading Wings S900 with Zenmuse Z15-BMPC CB.SB.000015
(PDF file, 10.84 MB)
Additional parameters of the DJI Spreading Wings S900 with Zenmuse Z15-BMPC CB.SB.000015:
Specifications
    • DJI Spreading Wings S900 Hexacopter
      Frame
      Diagonal Wheelbase 35.4" / 900 mm
      Frame Arm Length 14.1 / 358 mm
      Frame Arm Weight Including Motor, ESC, and Propellers: 11.1 oz / 316 g
      Center Frame Diameter 10.7" / 272 mm
      Center Frame Weight With Landing Gear Mounting Base and Servos: 2.6 lb / 1.2 kg
      Landing Gear Dimensions 18.1 x 17.7 x 14.2 / 460 x 450 x 360 mm
      Motor
      Stator Size 1.6 x 0.6" / 41 x 14 mm
      Motor Velocity Constant KV: 400 rpm/V
      Maximum Power Consumption 500 W
      Weight With Cooling Fan: 5.6 oz / 158 g
      Electronic Speed Control (ESC)
      Working Current 40 A
      Working Voltage 6S LiPo
      Signal Frequency 30 to 450 Hz
      Drive PWM Frequency 8 kHz
      Weight With Cooling Fan: 1.2 oz / 35 g
      Propeller
      Type Folding
      Material Plastic
      Size 15 x 5.2" / 381 x 132 mm
      Weight 0.5 oz / 13 g
      Flight Parameters
      Supported Flight Control Systems DJI A2 and WooKong-M
      Take-Off Weight 10.4 to 18.1 lb / 4.7 to 8.2 Kg
      Total Weight 7.3 lb / 3.3 Kg
      Battery Requirements LiPo: 6S, 10000 to 15000 mAh, 15C (minimum)
      Maximum Power Consumption 3000 W
      Hover Power Consumption 1000 W at 15 lb / 6.8 Kg takeoff weight
      Hover Time 18 minutes at 12000 mAh and 15 lb / 6.8 Kg takeoff weight
      Operating Temperature 14 to 104°F/ -10 to 40°C
      Packaging Info
      Box Dimensions (LxWxH) 19.8 x 15.7 x 12.7"
    • DJI WooKong-M Flight Control System for Multi-Rotor UAVs
      Model DJI WooKong-M
      Supported ESC Output 400 Hz refresh frequency
      Supported Transmitters PCM or 2.4 GHz with minimum 7 channels and Failsafe function available on all channels
      Hovering Accuracy (GPS Mode) Vertical: ±19.7" / 0.5 m
      Horizontal: ±78.7" / 2 m
      Maximum Wind Resistance < 8 m/s (17.9 mph / 28.8 km/h)
      Maximum Yaw Angular Velocity 150 deg/s
      Maximum Tilt Angle 35°
      Ascent/Descent ±6m/s
      System Requirements Assistant Software: Windows 8, 7, or XP SP3
      Power Requirements Battery: 2S to 6S LiPo
      Power Consumption Maximum: 5W
      0.9 A at 5V, 0.7 A at 5.8 V, 0.5 A at 7.4 V, 0.4 A at 8 V
      Operating Temperature 23 to 140°F / -5 to 60°C

      Note: You have to keep the IMU warm if you want to use it under 23°F (-5°F)
      Dimensions Flight Controller: 2 x 1.5 x 0.6" / 51.2 x 38 x 15.3 mm
      IMU: 1.6 x 1.2 x 1.1" / 41.4 x 31.1 x 27.8 mm
      GPS and Compass: 2" / 50 mm (diameter) x 0.4" / 9 mm
      Weight Overall: 4.2 oz / 118 g
      Packaging Info
      Box Dimensions (LxWxH) 8.2 x 5.9 x 2.6"
    • DJI Zenmuse Z15-N7 3-Axis Gimbal for Sony NEX-7
      Peripheral
      Supported Camera Sony NEX-7
      Supported Lens Sony SEL16F28 16mm f/2.8
      Control Requirements At least 4 spare receiver channels
      S-Bus/PPM receiver supported
      Software Requirements For Assistant Software: Windows 8, 7, XP SP3 -- 32 or 64-bit
      Electrical Characteristics
      Working Current Static Current: 200 mA at 25 V
      Dynamic Current: 400 mA at 25 V
      Locked-Rotor Current: 4 A at 25 V
      GCU BEC Output 10 A at 12 V
      Transmit Power GCU Wireless Video Transmission: 1 A at 12 V
      Performance
      Load Weight (Reference Value) Not specified by manufacturer
      Controlled Angle Accuracy ±0.01°
      Maximum Controlled Rotation Speed Pan Axis: ±130°/s
      Tilt Axis: ±130°/s
      Roll Axis ±30°/s
      Controlled Rotation Range Pan Axis Control: ±360° continuous rotation
      Tilt Axis Control: ±360° continuous rotation
      Roll Axis Control: ±40° (±360° mechanical continuous rotation)
      General
      Power Requirements GCU: 4S to 12 S LiPo (6S if using S800, S1000+)
      Operating Temperature 14 to 122°F (-10 to 50°C)
      Dimensions Gimbal: 8.7 x 8.7 x 7.5" (220 x 220 x 190 mm)
      Camera Frame Dimensions: 5.6 x 3" (142 x 76 mm)
      GCU: 2.5 x 1.4 x 0.8" (64.2 x 34.1 x 19.5 mm)
      Weight Gimbal: 2.9 lb (1.3 kg)
      GCU: 2.2 oz (63 g)
      Packaging Info
      Box Dimensions (LxWxH) 13.6 x 10.7 x 9.0"
    B&H Hands-on Learning Videos
    1. DJI Z15 BMPCC - Unboxing & Assembly 4:27
    2. DJI A2 - Connection Instructions 1:21
    The user manual for the DJI Spreading Wings S900 with Zenmuse Z15-BMPC CB.SB.000015 can be downloaded in .pdf format if it did not come with your new aerial imaging platforms & drones, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other DJI users keep a unique electronic library for DJI aerial imaging platforms & droness, where you can use our link to download the user manual for the DJI Spreading Wings S900 with Zenmuse Z15-BMPC CB.SB.000015.
