User manual DJI Transmitter for Inspire 1 Quadcopter (Black) CP.BX.000137

Operating instructions and pdf manual for use - DJI Transmitter for Inspire 1 Quadcopter (Black) CP.BX.000137 User manual, User manual DJI Transmitter for Inspire 1 Quadcopter (Black) CP.BX.000137, DJI, Transmitter, Inspire, 1, Quadcopter, Black, C


User manual for DJI Transmitter for Inspire 1 Quadcopter (Black) CP.BX.000137

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
DJI Transmitter for Inspire 1 Quadcopter (Black) CP.BX.000137
  • Manufacturer: DJI
  • Basic description and contents of package
  • Product classification: Camcorders - Aerial Imaging & Drones - DJI Accessories
  • Safety instructions
  • Startup and operation of the dji accessories
  • Tips for setting up your DJI
  • Settings and expert assistance
  • Contact DJI service
  • Troubleshooting
  • Warranty information
  • Price: 699 USD
DJI Transmitter for Inspire 1 Quadcopter (Black) CP.BX.000137 DJI Transmitter for Inspire 1 Quadcopter (Black) CP.BX.000137
Click to enlarge image

We recommend checking out our discussion threads on the DJI Transmitter for Inspire 1 Quadcopter (Black) CP.BX.000137, which address similar problems with connecting and setting up DJI Accessories DJI.



User manual for the DJI Transmitter for Inspire 1 Quadcopter (Black) CP.BX.000137

The user manual for the DJI Transmitter for Inspire 1 Quadcopter (Black) CP.BX.000137 provides necessary instructions for the proper use of the product Camcorders - Aerial Imaging & Drones - DJI Accessories.

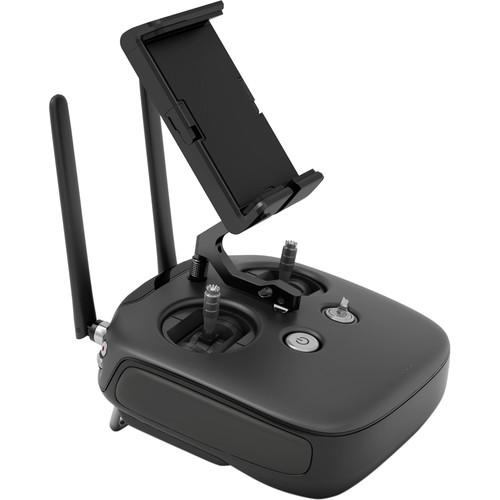

The black DJI Transmitter for Inspire 1 Quadcopter is the handheld radio controller used to operate the aircraft as well as control the gimbal. You can even use two transmitters with one aircraft, thereby allowing one person to pilot so the second person can concentrate on operating the camera. It features a mini-HDMI (type C) port for connecting an FPV monitor or glasses, plus there is a USB type A port for connecting you mobile device when using the Inspire app.

The transmitter uses a 2.4 GHz band for the control signal, plus there is a 5.8 GHz radio allowing two controllers to be bound together for dual operator flying. In dual operator mode, the "master" transmitter is used by the pilot, while the "slave" transmitter is used by the camera operator to move the camera manually.

Note: The transmitter requires binding before it can be used with your quadcopter. Please refer to the manual for instructions.
If you own a DJI dji accessories and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the DJI Transmitter for Inspire 1 Quadcopter (Black) CP.BX.000137 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the DJI Transmitter for Inspire 1 Quadcopter (Black) CP.BX.000137:
Specifications
Operating Frequency Transmitter to Transmitter: 5.728 to 5.850 GHz
Transmitter to Aircraft: 2.400 to 2.483 GHz
Range Line-of-Sight: Up to 6561.7' / 2000 m
Receive Sensitivity 1% PER:-93 dBm
EIRP 10 dBm at 900 MHz; 8 dBm at 5.8 GHz; 20 dBm at 2.4 GHz
Connectivity 1 x USB type A female for mobile device
1 x Micro-USB for firmware updates
1 x Mini-HDMI (type C) for FPV glasses or a monitor
1 x CAN-Bus port for future accessories
Dual User Capability Host-and-slave connection
Mobile Device Holder Tablet or smartphone
Output Power 9 W
Power Requirements 1.2 A at 7.4 VDC
Battery 6S LiPo; 6000 mAh
Charging Temperature Less than 3 Months: -4 to 113°F / -20 to 45°C
More than Three Months: 72 to 82°F / 22 to 28°C
Storage Temperature < 3 Months: -4 to 113°F / -20 to 45°C
> 3 Months: 72 to 82°F / 22 to 28°C
The user manual for the DJI Transmitter for Inspire 1 Quadcopter (Black) CP.BX.000137 can be downloaded in .pdf format if it did not come with your new dji accessories, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other DJI users keep a unique electronic library for DJI dji accessoriess, where you can use our link to download the user manual for the DJI Transmitter for Inspire 1 Quadcopter (Black) CP.BX.000137.

The user manual lists all of the functions of the DJI Transmitter for Inspire 1 Quadcopter (Black) CP.BX.000137, all the basic and advanced features and tells you how to use the dji accessories. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from DJI service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the DJI Transmitter for Inspire 1 Quadcopter (Black) CP.BX.000137. User manuals are also available on the DJI website under Camcorders - Aerial Imaging & Drones - DJI Accessories.
