User manual DJI Zenmuse X5 Camera and 3-Axis Gimbal with 15mm CP.BX.000076

Operating instructions and pdf manual for use - DJI Zenmuse X5 Camera and 3-Axis Gimbal with 15mm CP.BX.000076 User manual, User manual DJI Zenmuse X5 Camera and 3-Axis Gimbal with 15mm CP.BX.000076, DJI, Zenmuse, X5, Camera, 3-Axis, Gimbal, with,


User manual for DJI Zenmuse X5 Camera and 3-Axis Gimbal with 15mm CP.BX.000076

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
DJI Zenmuse X5 Camera and 3-Axis Gimbal with 15mm CP.BX.000076
  • Manufacturer: DJI
  • Basic description and contents of package
  • Product classification: Camcorders - Aerial Imaging & Drones - DJI Accessories
  • Safety instructions
  • Startup and operation of the dji accessories
  • Tips for setting up your DJI
  • Settings and expert assistance
  • Contact DJI service
  • Troubleshooting
  • Warranty information
DJI Zenmuse X5 Camera and 3-Axis Gimbal with 15mm CP.BX.000076 DJI Zenmuse X5 Camera and 3-Axis Gimbal with 15mm CP.BX.000076 DJI Zenmuse X5 Camera and 3-Axis Gimbal with 15mm CP.BX.000076 DJI Zenmuse X5 Camera and 3-Axis Gimbal with 15mm CP.BX.000076
Click to enlarge image

We recommend checking out our discussion threads on the DJI Zenmuse X5 Camera and 3-Axis Gimbal with 15mm CP.BX.000076, which address similar problems with connecting and setting up DJI Accessories DJI.



User manual for the DJI Zenmuse X5 Camera and 3-Axis Gimbal with 15mm CP.BX.000076

The user manual for the DJI Zenmuse X5 Camera and 3-Axis Gimbal with 15mm CP.BX.000076 provides necessary instructions for the proper use of the product Camcorders - Aerial Imaging & Drones - DJI Accessories.

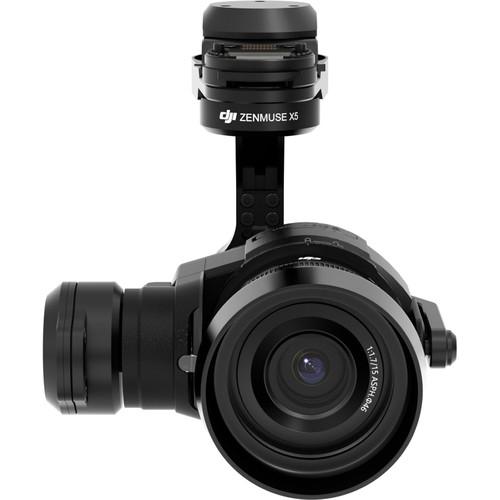

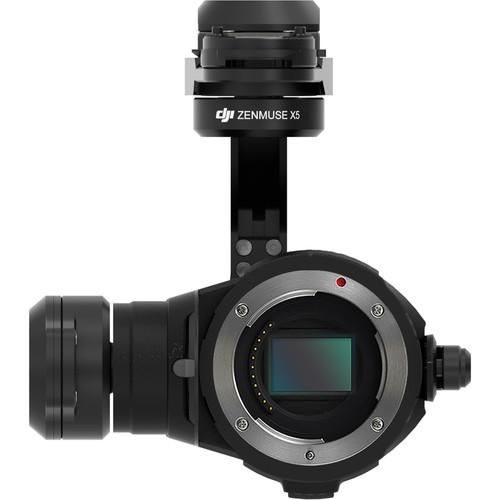

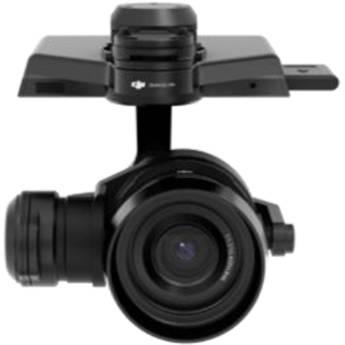

Equip your DJI Inspire 1 with Micro Four Thirds imaging performance and the benefits of an interchangeable lens system with the Zenmuse X5 Camera and 3-Axis Gimbal with 15mm f/1.7 Lens. This 4K camera system features an integrated 3-axis brushless gimbal that provides stabilization and enables the camera to move independently of the aircraft. In addition to video, the camera can take 16-megapixel still photos with the option for burst and time-lapse modes.
If you own a DJI dji accessories and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the DJI Zenmuse X5 Camera and 3-Axis Gimbal with 15mm CP.BX.000076 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for DJI Zenmuse X5 Camera and 3-Axis Gimbal with 15mm CP.BX.000076Download user manual for DJI Zenmuse X5 Camera and 3-Axis Gimbal with 15mm CP.BX.000076
(PDF file, 5.1 MB)
Additional parameters of the DJI Zenmuse X5 Camera and 3-Axis Gimbal with 15mm CP.BX.000076:
Specifications
Camera
Model Name: Zenmuse X5
Lens Mount MFT (Micro Four Thirds)
Photo Resolution 16 MP (4608 x 3456)
Video Resolution DCI 4K (4096 x 2160): 24p, 25p
UHD 4K (3840 x 2160): 25p, 30p
FHD (1920 x 1080): 24p, 25p, 30p, 48p, 50p, 60p
Field of view (FOV) 15mm f1.7 :72° (included)
12mm f2.0:84° (available separately)
Photo Modes Single shot
Burst: 3, 5, or 7 frames
Auto Exposure (AE) Bracketing: 3/5 bracketed frames at 0.7 EV bias
Time-Lapse: 3, 5, 7, 10, 20, 30, or 60 second intervals
ISO Range 100 to 25600
Shutter Speed 8 to 1/8000 second
Video Bitrate Up to 60 Mbps
Supported File Types Photo: JPEG, DNG RAW
Video: MP4, MOV (MPEG-4/AVC/H.264F)
File System: FAT32 / exFAT
Recording Media Class 10 / UHS-1 or better microSD (up to 64 GB)
Power Consumption Static: 8 W
Peak: 13 W
Gimbal
Model Zenmuse X5
Mount Detachable
Number of Axes 3-axis
Control Angle Accuracy ±0.02°
Control Range Pitch: -90° to +30°
Pan: ±320°
Manual Control Speed Pitch: Up to 120°/second
Pan: Up to 180°/second
Lens
Compatibility DJI MFT 15mm f/1.7 ASPH (included)
Panasonic Lumix 15mm f/1.7 (available separately)
Olympus M. ED 12mm f/2.0 (available separately)
Model DJI MFT 15mm f/1.7 ASPH
Mount MFT (Micro Four Thirds)
Focal Length 15 mm
35mm Equivalent: 30 mm
Aperture Range f/1.7 to f/16
Focus Range 0.7' (0.2 m) to ∞
Field of View 72°
Elements 9 elements in 7 groups (3 aspherical elements)
Aperture 7 diaphragm blades / circular aperture diaphragm
Dimensions Maximum Diameter: 2.3" / 57.5 mm
Length: 1.4" / 36 mm
Weight 4.1 oz / 115 g
General
Operating Temperature 32 to 104°F / 0 to 40°C
Dimensions (H x W x D) 4.7 x 5.3 x 5.5" / 120 x 135 x 140 mm
Weight With Standard Lens, Balancing Ring, Lens Hood, and microSD card: 1.2 lb / 526 g
Packaging Info
Package Weight 2.45 lb
Box Dimensions (LxWxH) 7.4 x 5.9 x 5.2"
The user manual for the DJI Zenmuse X5 Camera and 3-Axis Gimbal with 15mm CP.BX.000076 can be downloaded in .pdf format if it did not come with your new dji accessories, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other DJI users keep a unique electronic library for DJI dji accessoriess, where you can use our link to download the user manual for the DJI Zenmuse X5 Camera and 3-Axis Gimbal with 15mm CP.BX.000076.

The user manual lists all of the functions of the DJI Zenmuse X5 Camera and 3-Axis Gimbal with 15mm CP.BX.000076, all the basic and advanced features and tells you how to use the dji accessories. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from DJI service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the DJI Zenmuse X5 Camera and 3-Axis Gimbal with 15mm CP.BX.000076. User manuals are also available on the DJI website under Camcorders - Aerial Imaging & Drones - DJI Accessories.
