User manual for the DJI Zenmuse Z15-5D 3-Axis Gimbal for Canon 5DII CP.ZM.000049

The user manual for the DJI Zenmuse Z15-5D 3-Axis Gimbal for Canon 5DII CP.ZM.000049 provides necessary instructions for the proper use of the product Camcorders - Aerial Imaging & Drones - DJI Accessories.

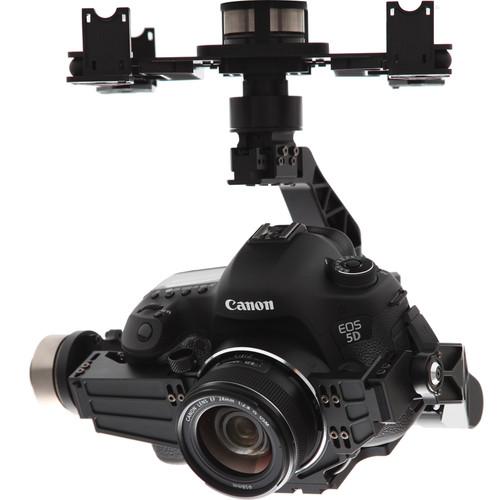

The Zenmuse Z15-5D 3-Axis Gimbal for Canon 5DII from DJI performs two key functions: keeping the camera level and providing stabilization, thus helping you transform a larger multi-rotor UAV, such as the S1000, into a platform for professional aerial video and aerial photography. Featuring ±0.02° control angle accuracy, the Z15-5D supports three operation modes; two optimized for aerial video and photo use and one for FPV (first person view) applications. The gimbal is operated using a dedicated stick on your transmitter (hand-held radio controller), and the receiver must have at least four free channels that can be assigned to gimbal operation.

Each version of the Z15 Gimbal is designed for a specific camera and lens combination. This version is for the Canon 5D Mark II with the Canon EF 24mm f/2.8 IS USM lens. Additionally, it is specifically balanced for this precise setup. Additions to the camera or lens, such as filters, can increase the weight and alter the weight distribution potentially damaging the gimbal.

Note: Installation may require soldering.
If you own a DJI dji accessories and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the DJI Zenmuse Z15-5D 3-Axis Gimbal for Canon 5DII CP.ZM.000049 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for DJI Zenmuse Z15-5D 3-Axis Gimbal for Canon 5DII CP.ZM.000049Download user manual for DJI Zenmuse Z15-5D 3-Axis Gimbal for Canon 5DII CP.ZM.000049
(PDF file, 2.95 MB)
Additional parameters of the DJI Zenmuse Z15-5D 3-Axis Gimbal for Canon 5DII CP.ZM.000049:
Specifications
    Supported Camera Canon 5DII
    Supported Lens Canon EF 24mm f/2.8 IS USM
    Control Requirements At least 4 spare receiver channels
    S-Bus/PPM receiver supported
    Software Requirements For Assistant Software: Windows 8, 7, XP SP3 -- 32 or 64-bit
    Working Current Static Current: 200 mA at 25 V
    Dynamic Current: 400 mA at 25 V
    Locked-Rotor Current: 4 A at 25 V
    GCU BEC Output 10 A at 12 V
    Transmit Power GCU Wireless Video Transmission: 1 A at 12 V
    Controlled Angle Accuracy ±0.01°
    Maximum Controlled Rotation Speed Pan Axis: ±90°/s
    Tilt Axis: ±130°/s
    Roll Axis ±30°/s
    Controlled Rotation Range Pan Axis Control: ±360° continuous rotation
    Tilt Axis Control: -120° to +15°
    Roll Axis Control: ±25°
    Power Requirements GCU: 4S to 12 S LiPo (6S if using S800)
    Operating Temperature 14 to 122°F (-10 to 50°C)
    Dimensions Gimbal: 8 x 9.5 x 10.4" (204 x 242 x 264 mm)
    GCU: 2.5 x 1.4 x 0.8" (64.2 x 34.1 x 19.5 mm)
    Weight Gimbal: 3.1 lb (1.4 kg)
    GCU: 2.2 oz (63 g)
    Packaging Info
    Package Weight 5.1 lb
    Box Dimensions (LxWxH) 12.1 x 12.0 x 10.8"
    B&H Hands-on Learning Videos
    1. DJI Z15 5DII - How to install 5D MKII 1:21
