User manual for the DJI Zenmuse Z15-N5N 3-Axis Gimbal for Sony NEX-5N CP.ZM.000001
The user manual for the DJI Zenmuse Z15-N5N 3-Axis Gimbal for Sony NEX-5N CP.ZM.000001 provides
necessary instructions for the proper use of the product Camcorders - Aerial Imaging & Drones - DJI Accessories.

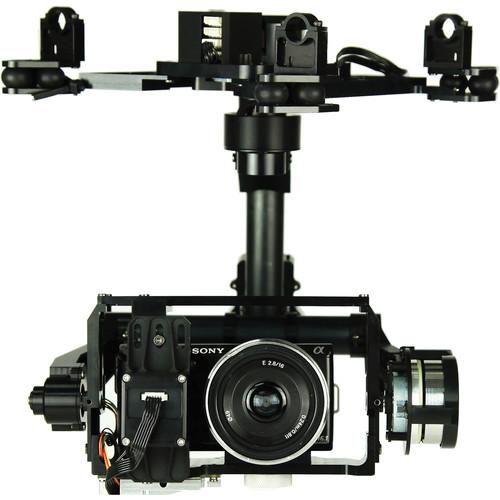

The Zenmuse Z15-N5N 3-Axis Gimbal for Sony NEX-5N from DJI performs two key functions: keeping the camera level and providing stabilization, thus helping you transform a larger multi-rotor UAV, such as the S1000+ or S900, into a platform for professional aerial video and aerial photography. Featuring ±0.01° control angle accuracy, the Zenmuse Z15-N5Nsupports three operation modes; two optimized for aerial video and photo use and one for FPV (first person view) applications. The gimbal is operated using a dedicated stick on your transmitter (hand-held radio controller), and the receiver must have at least four free channels that can be assigned to gimbal operation.
Each version of the Z15 Gimbal is designed for a specific camera and lens combination. This version is for the Sony NEX-5N with the Sony SEL16F28 16mm f/2.8 lens. Additionally, it is specifically balanced for this precise setup. Additions to the camera or lens, such as filters, can increase the weight and alter the weight distribution potentially damaging the gimbal.
Note: Installation may require soldering.
|
If you own a DJI dji accessories and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the DJI Zenmuse Z15-N5N 3-Axis Gimbal for Sony NEX-5N CP.ZM.000001 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the DJI Zenmuse Z15-N5N 3-Axis Gimbal for Sony NEX-5N CP.ZM.000001:
| Supported Camera | Sony NEX-5N | | Supported Lens | Sony SEL16F28 16mm f/2.8 | | Control Requirements | At least 4 spare receiver channels
S-Bus/PPM receiver supported | | Software Requirements | For Assistant Software: Windows 8, 7, XP SP3 -- 32 or 64-bit | | Working Current | Static Current: 200 mA at 25 V
Dynamic Current: 400 mA at 25 V
Locked-Rotor Current: 4 A at 25 V | | GCU BEC Output | 10 A at 12 V | | Transmit Power | GCU Wireless Video Transmission: 1 A at 12 V | | Load Weight (Reference Value) | Not specified by manufacturer | | Controlled Angle Accuracy | ±0.01° | | Maximum Controlled Rotation Speed | Pan Axis: ±130°/s
Tilt Axis: ±130°/s
Roll Axis ±30°/s | | Controlled Rotation Range | Pan Axis Control: ±360° continuous rotation
Tilt Axis Control: ±360° continuous rotation
Roll Axis Control: ±40° (±360° mechanical continuous rotation) | | Power Requirements | GCU: 4S to 12 S LiPo (6S if using S800, S1000+) | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Dimensions | Gimbal: 8.7 x 8.7 x 7.5" (220 x 220 x 190 mm)
Camera Frame Dimensions: 5.6 x 3" (142 x 76 mm)
GCU: 2.5 x 1.4 x 0.8" (64.2 x 34.1 x 19.5 mm) | | Weight | Gimbal: 2.9 lb (1.3 kg)
GCU: 2.2 oz (63 g) | |
