User manual Dotworkz KT-CDR2: D2 COOLDOME 24V Outdoor Power Pack KTCDR2-24V

Operating instructions and pdf manual for use - Dotworkz KT-CDR2: D2 COOLDOME 24V Outdoor Power Pack KTCDR2-24V User manual, User manual Dotworkz KT-CDR2: D2 COOLDOME 24V Outdoor Power Pack KTCDR2-24V, Dotworkz, KT-CDR2:, D2, COOLDOME, 24V, Outdoor


User manual for Dotworkz KT-CDR2: D2 COOLDOME 24V Outdoor Power Pack KTCDR2-24V

Dotworkz KT-CDR2: D2 COOLDOME 24V Outdoor Power Pack KTCDR2-24V
  • Manufacturer: Dotworkz
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Mounts & Housings - Housing Accessories
  • Safety instructions
  • Startup and operation of the housing accessories
  • Tips for setting up your Dotworkz
  • Settings and expert assistance
  • Contact Dotworkz service
  • Troubleshooting
  • Warranty information
  • Price: 345 USD
We recommend checking out our discussion threads on the Dotworkz KT-CDR2: D2 COOLDOME 24V Outdoor Power Pack KTCDR2-24V, which address similar problems with connecting and setting up Housing Accessories Dotworkz.



User manual for the Dotworkz KT-CDR2: D2 COOLDOME 24V Outdoor Power Pack KTCDR2-24V

The user manual for the Dotworkz KT-CDR2: D2 COOLDOME 24V Outdoor Power Pack KTCDR2-24V provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Mounts & Housings - Housing Accessories.

The KT-CDR2: D2 Cooldome 24V Outdoor Power Pack Pole Mount Kit from dotworkz is custom designed to work with the ST-CD-24V active cooling enclosure. The Cooldome is engineered to expand an indoor camera's capability to function in a more rugged and extreme environment outdoors.

The built-to-be-indestructible toughened enclosure is designed not to corrode, rust, or leak and to withstand considerable abuse from the elements: extreme temperatures (and fluctuations), wind, rain, dust, humidity, etc., and just about everything in between.

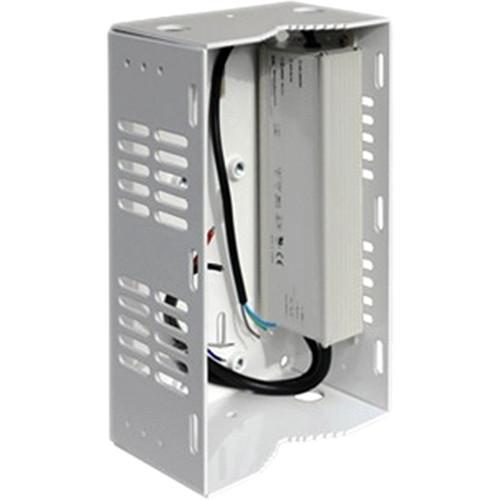

The KT-CDR2:D2 powers the dotworkz COOLDOME 24 and electronic components safely and easily with the 24V outdoor power pack kit. It provides a clean integration of COOLDOME external power supplies to D2 enclosure.

This external power supply bracket provides quick mount attachment to the back of the D2 COOLDOME and can be mounted onto any size structural post or pole utilizing 3 band straps.
If you own a Dotworkz housing accessories and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Dotworkz KT-CDR2: D2 COOLDOME 24V Outdoor Power Pack KTCDR2-24V in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Dotworkz KT-CDR2: D2 COOLDOME 24V Outdoor Power Pack KTCDR2-24V:

Go To

Output
DC Voltage 24 VDC
Constant Current Region 10 to 20 V
Rated Current 12A
Rated Power Output 240 W
Ripple & Noise (max) 150 mVp-p
Voltage Adjustable Range 18.6 to 21.4 V
Voltage Tolerance ±1.0%
Line Regulation ±0.5%
Load Regulation ±1.0%
Setup, Rise Time 1000 ms, 80 ms - 115 VAC / 500 ms, 80 ms - 230 VAC at full load
Hold Up Time 15 ms at full load 230 VAC / 115 VAC
Input
Voltage Range 90 ~ 305 VAC , 127 ~ 431 VDC
Frequency Range 47 to 63 Hz
Power Factor PF> 0.98 / 115 VAC, PF> 0.95 / 230 VAC at full load
(please refer to "Power Factor Characteristic" curve)
Efficiency 91.5%
Dimensions 11" x 7" x 5" (27.94 x 17.78 x 20.32 cm)
Input AC Current 4 A /115 VAC, 2 A / 230 VAC, 1.2 A / 277 VAC
Inrush Current COLD START 75A (twidth = 570 µs measured at 50% Ipeak) at 230 VAC
Leakage Current <0.75 mA / 277 VAC
Weight 13 lb (5.89 kg)
The user manual for the Dotworkz KT-CDR2: D2 COOLDOME 24V Outdoor Power Pack KTCDR2-24V can be downloaded in .pdf format if it did not come with your new housing accessories, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Dotworkz users keep a unique electronic library for Dotworkz housing accessoriess, where you can use our link to download the user manual for the Dotworkz KT-CDR2: D2 COOLDOME 24V Outdoor Power Pack KTCDR2-24V.

The user manual lists all of the functions of the Dotworkz KT-CDR2: D2 COOLDOME 24V Outdoor Power Pack KTCDR2-24V, all the basic and advanced features and tells you how to use the housing accessories. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Dotworkz service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Dotworkz KT-CDR2: D2 COOLDOME 24V Outdoor Power Pack KTCDR2-24V. User manuals are also available on the Dotworkz website under Surveillance - Surveillance Video - Mounts & Housings - Housing Accessories.
