User manual for the DPA Microphones d:fine Single-Ear Headset Omnidirectional FIOF10
The user manual for the DPA Microphones d:fine Single-Ear Headset Omnidirectional FIOF10 provides
necessary instructions for the proper use of the product Pro Audio - Location Sound - Microphones for Wireless.

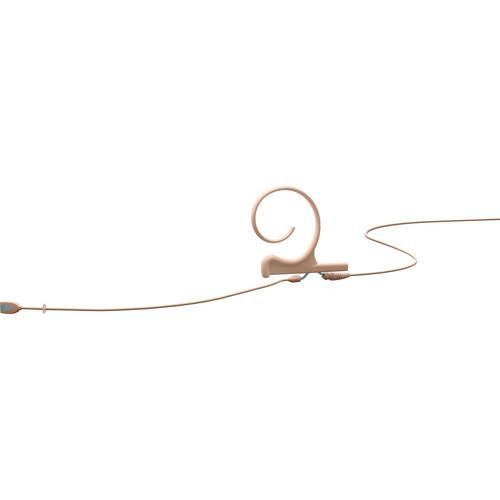

The beige d:fine Single-Ear Headset Omnidirectional Microphone with Long Boom Arm and Hardwired TA4F Connector for Shure Wireless Systems from DPA Microphones is designed for use in stage or broadcast applications where a minimal visual presence is desired. It has an ergonomic design for a comfortable fit and has been tuned for a high level of voice intelligibility.
If you own a DPA Microphones microphones for wireless and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the DPA Microphones d:fine Single-Ear Headset Omnidirectional FIOF10 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the DPA Microphones d:fine Single-Ear Headset Omnidirectional FIOF10:
Specifications
Transducer
Pre-polarized condenser
Polar Pattern
Omnidirectional
Principle of Operation
Pressure or pressure gradient
Frequency Response
20 Hz to 20 kHz +/-2 dB: 20 Hz to 20 kHz with 3 dB soft boost @ 8 to 15 kHz
Maximum SPL
144 dB
Dynamic Range (Typical)
97 dB (typical)
Signal-to-Noise Ratio
68 dB A typical, A-weighted @ 1 kHz @ 1 Pa (94 dB SPL)
Power Requirements
5 to maximum 50 V through DPA adapter for wireless systems
Total Harmonic Distortion
< 1 % up to 123 dB SPL peak < 1 % up to 120 dB SPL RMS sine
Output Impedance
30 to 40 Ω
Output Connectors
Hardwired TA4F
CMRR
> 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR adapter
Current Consumption
1.5 mA (microphone, typical)
Sensitivity
6 mV/Pa; -44 dB @ 1 V/Pa (nominal, ± 3 dB @ 1 kHz)
Noise Level
A-weighted: 26 dB A @ 20 µPa (maximum 28 dB A, typical) ITU-R BS.468-4: 38 dB (maximum 40 dB, typical)
Cable
Length: 4.3' (1.3 m) Diameter: 0.06" (1.60 mm)
Boom
Length: 4.3" (110 mm)
Capsule Diameter
0.2" (5.4 mm)
EMC Compatibility
Fully compatible
Temperature Range
-40 to 113°F (-40 to 45°C)
Relative Humidity
≤ 90%
Microphone Head Size
0.37 x 0.21 x 0.11" (9.50 x 5.30 x 2.90 mm)
Weight
Microphone boom: 0.03 oz (0.8 g) Earhook: 0.04 oz (1.1 g) Cable: 0.23 oz (6.6 g) Total weight: 0.3 oz (8.5 g)
