User manual DPA Microphones d:vote 4099C Clip Microphone for Cello VO4099-C

Operating instructions and pdf manual for use - DPA Microphones d:vote 4099C Clip Microphone for Cello VO4099-C User manual, User manual DPA Microphones d:vote 4099C Clip Microphone for Cello VO4099-C, DPA, Microphones, d:vote, 4099C, Clip, Microph


User manual for DPA Microphones d:vote 4099C Clip Microphone for Cello VO4099-C

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
DPA Microphones d:vote 4099C Clip Microphone for Cello VO4099-C
  • Manufacturer: DPA Microphones
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Instrument
  • Safety instructions
  • Startup and operation of the instrument
  • Tips for setting up your DPA Microphones
  • Settings and expert assistance
  • Contact DPA Microphones service
  • Troubleshooting
  • Warranty information
  • Price: 620 USD
We recommend checking out our discussion threads on the DPA Microphones d:vote 4099C Clip Microphone for Cello VO4099-C, which address similar problems with connecting and setting up Instrument DPA Microphones.



User manual for the DPA Microphones d:vote 4099C Clip Microphone for Cello VO4099-C

The user manual for the DPA Microphones d:vote 4099C Clip Microphone for Cello VO4099-C provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Instrument.

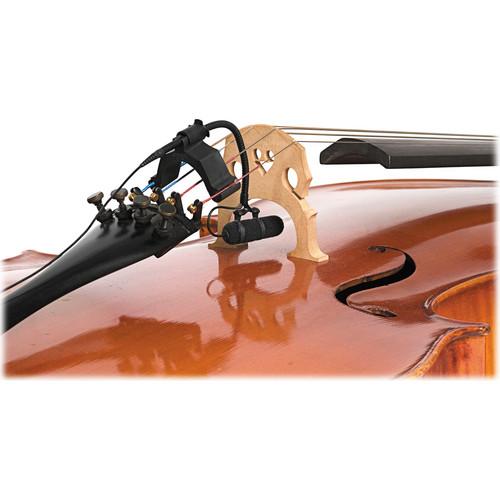

The d:vote 4099C Clip Microphone for Cello with XLR Adapter from DPA Microphones is designed to clip onto your cello to the C and A strings below the bridge while having no impact on your acoustic sound. It can be used for both live sound and recording purposes. The microphone itself is a supercardioid condenser with a 5.5" adjustable gooseneck for ease in positioning. It also features a detachable cable, allowing you to attach your mic to your cello before connecting it. The 4099C terminates in a Microdot connector, allowing compatibility with DPA's connection adapters for use with a variety of third-party wireless systems. An XLR adapter with a belt clip is included for use in a wired system with 48-volt phantom power.
If you own a DPA Microphones instrument and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the DPA Microphones d:vote 4099C Clip Microphone for Cello VO4099-C in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the DPA Microphones d:vote 4099C Clip Microphone for Cello VO4099-C:
Specifications
    Transducer Type Condenser
    Polar Pattern Supercardioid
    Principle of Operation Pressure Gradient
    Frequency Range 20 Hz to 20 kHz
    80 Hz to 15 kHz with 2 dB Soft Boost @ 10 to 12 kHz (>+/- 2 dB, 20 cm Distance)
    Sensitivity 6 mV/Pa; -44.5 dB Reference: 1 V/Pa (Nominal, +/- 3 dB)
    Equivalent Noise Level Typ. 23 dB(A) Reference: 20 µPa (Maximum 26 dB(A)) (A-Weighted)
    Signal to Noise Ratio 71 dB (Reference: 1 kHz @ 1 Pa, 94 dB SPL)
    Total Harmonic Distortion (THD) < 1 % up to 123 dB SPL peak
    < 1 % up to 120 dB SPL RMS sine
    Dynamic Range 100 dB
    Maximum SPL 142 dB (Peak Before Clipping)
    Output Impedance MicroDot: 30 to 40 Ω
    XLR: 100 Ω
    Cable Drive Capability XLR: 984' (300 m)
    Output Balance Principle Signal balanced with XLR adapter
    CMRR XLR Adapter: > 60 dB at 50 Hz to 15 kHz
    Power Supply Minimum 5 V to Maximum 50 V through DPA adapter for wireless systems
    48 V phantom power ±4 V with XLR adapter
    Current Consumption MicroDot: 1.5 mA
    XLR Adapter: 3.5 mA
    Connector MicroDot
    XLR Adapter Included
    Polarity Positively increasing sound pressure produces positive going voltage at MicroDot pin (and pin 2 on DAD6001 XLR adapter)
    Operating Temperature -40° to 113°F (-40° to 45°C)
    Relative Humidity Up to 90%
    Cable Length 6' (1.8 m)
    Gooseneck Length: 5.5" (140 mm)
    Microphone Length 1.8" (45 mm)
    Weight 1.16 oz (33 g)
    Packaging Info
    Package Weight 1.0 lb
    Box Dimensions (LxWxH) 9.8 x 5.9 x 2.9"
    The user manual for the DPA Microphones d:vote 4099C Clip Microphone for Cello VO4099-C can be downloaded in .pdf format if it did not come with your new instrument, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other DPA Microphones users keep a unique electronic library for DPA Microphones instruments, where you can use our link to download the user manual for the DPA Microphones d:vote 4099C Clip Microphone for Cello VO4099-C.

    The user manual lists all of the functions of the DPA Microphones d:vote 4099C Clip Microphone for Cello VO4099-C, all the basic and advanced features and tells you how to use the instrument. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from DPA Microphones service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the DPA Microphones d:vote 4099C Clip Microphone for Cello VO4099-C. User manuals are also available on the DPA Microphones website under Pro Audio - Live Sound - Instrument.
