User manual Drobo 16TB (4 x 4TB) 4-Bay USB 3.0 Storage Array Kit

Operating instructions and pdf manual for use - Drobo 16TB (4 x 4TB) 4-Bay USB 3.0 Storage Array Kit User manual, User manual Drobo 16TB (4 x 4TB) 4-Bay USB 3.0 Storage Array Kit, Drobo, 16TB, 4, x, 4TB, 4-Bay, USB, 3.0, Storage, Array, Kit,


User manual for Drobo 16TB (4 x 4TB) 4-Bay USB 3.0 Storage Array Kit

Drobo 16TB (4 x 4TB) 4-Bay USB 3.0 Storage Array Kit
  • Manufacturer: Drobo
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Drives & Storage - Hard Drive Arrays
  • Safety instructions
  • Startup and operation of the hard drive arrays
  • Tips for setting up your Drobo
  • Settings and expert assistance
  • Contact Drobo service
  • Troubleshooting
  • Warranty information
  • Price: 830 USD
We recommend checking out our discussion threads on the Drobo 16TB (4 x 4TB) 4-Bay USB 3.0 Storage Array Kit, which address similar problems with connecting and setting up Hard Drive Arrays Drobo.



User manual for the Drobo 16TB (4 x 4TB) 4-Bay USB 3.0 Storage Array Kit

The user manual for the Drobo 16TB (4 x 4TB) 4-Bay USB 3.0 Storage Array Kit provides necessary instructions for the proper use of the product Computers & Solutions - Drives & Storage - Hard Drive Arrays.

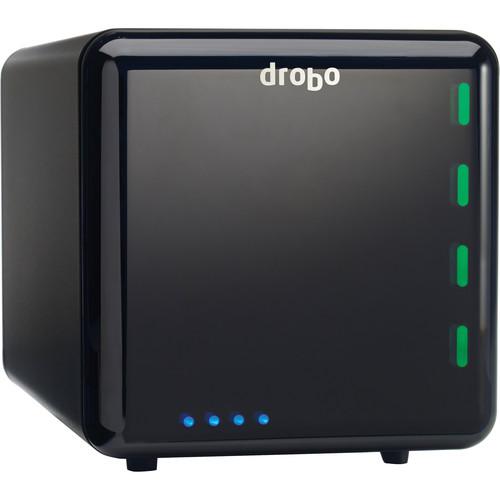

This B&H Kit includes the third generation Drobo 4-Bay USB 3.0 Storage Array and four 4TB hard drives. By inserting the four included hard drives into the four drive bays of this Drobo you benefit from a total storage capacity of 16 terabytes. The drives can be configured to suit a variety of needs using Drobo's own BeyondRAID technology which includes features like thin provisioning, instant expansion, mixed drive utilization, dual disk redundancy and more.

This four bay Drobo also comes equipped with one USB 3.0 port to plug it into Mac computers running Mac OS X 10.7 or higher, and Windows computers running Windows 7 (32- or 64-bit), or Windows 8/8.1 (32- or 64-bit). Once connected, you can take advantage of the HFS+ file system for use with Mac computers or the NTFS file system for use with Windows computers. Additionally, you can see the status of the Drobo as represented by the drive bay indicator lights, the capacity gauge, and status lights to ensure your Drobo is functioning properly.
If you own a Drobo hard drive arrays and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Drobo 16TB (4 x 4TB) 4-Bay USB 3.0 Storage Array Kit in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Drobo 16TB (4 x 4TB) 4-Bay USB 3.0 Storage Array Kit:
Specifications
    • Drobo 4-Bay USB 3.0 Storage Array (3rd Generation)
      Drives Up to four 3.5" SATA I/II/III hard disk drives or solid state drives
      Drives of any manufacturer, capacity, spindle speed, or cache
      No carriers or tools required
      Expandable by adding drives or hot-swapping drives with larger ones
      (Drives sold separately)
      Connectivity 1 x USB 3.0
      Operating System Support Mac OS X 10.7. or higher
      Windows 8/8.1 32 and 64 bit
      Windows 7 32 and 64 bit
      File System Support Mac OS X: HFS+
      Windows: NTFS
      Management Drive bay indicator lights, capacity gauge, status lights
      Drobo Dashboard version 2.6 or later
      BeyondRAID Features Thin provisioning
      Instant expansion
      Mixed drive size utilization
      Automatic protection levels
      Dual disk redundancy
      Virtual hot spare
      Data aware
      Drive re-ordering
      Power Requirements External power supply
      AC Input: 100-240 VAC-2A, 50/60 Hz
      DC Output: 12 V, 12.5 A, 150 W max
      Fan Single, fixed, variable speed cooling fan
      Additional Software Features Drive spin down
      Dim lights
      Hardware Features Carrier-less drive bays
      Power fail protection
      Kensington lock port for security (lock not included)
      Dimensions (WxHxD) 5.0 x 6.3 x 10.7" / 152.4 x 160.0 x 271.8 mm
      Packaging Info
      Box Dimensions (LxWxH) 13.9 x 12.0 x 10.1"
    • 4 x Seagate 4TB NAS SATA III 3.5" Internal HDD (OEM)
      Interface SATA 6 Gb/s
      Halogen Free Yes
      NASWorks
      Number of Drive Bays Supported 1 to 8
      Dual-Plane Balance Yes
      Vibration Tolerance for Small NAS Yes
      NASWorks Error Recovery Control Yes
      Performance
      Cache 64 MB (multisegmented)
      SATA Transfer Rates Supported 6.0 Gb/s
      Spindle Speed (RPM) Low-RPM spindle speed
      (Actual spindle speed not specified by manufacturer)
      Power-On or Standby to Ready <17 sec (typical)
      Max Sustained Data Rate, OD Read 180 MB/s
      Voltage
      Voltage Tolerance, Including Noise (5V) ±5%
      Voltage Tolerance, Including Noise (12V) ±10%
      Power Management
      Startup Current (12V typical, amps) 2.0
      Operating Average (W) 4.8
      Idle Average (W) 3.95
      Standby/Sleep Mode (typical, W) 0.5
      Environmental Requirements
      Temperature Operating Temperature: 32 to 158°F / 0 to 70°C
      Non-Operating Temperature: -40 to 158°F / -40 to 70°C
      Shock 68°/86°F per hour max 20°/30°C per hour max
      Operating Shock Operating: 2ms (max, Gs) 80
      Non-Operating: 2ms (max, Gs) 300
      Acoustics Idle (typical, bels): 2.3
      Operational (typical, bels): 2.5
      Reliability
      Load/Unload Cycles 600,000
      Nonrecoverable Read Errors per Bits Read 1 per 10E14 max
      Power-On Hours 8760
      Mean Time Between Failures 1M
      Physical Specifications
      Dimensions (HxWxD) 1.028 x 4.0 x 5.787" / 26.11 x 101.6 x 146.99 mm
      Weight 1.345 lb / 610 g
      Packaging Info
      Box Dimensions (LxWxH) 8.4 x 6.2 x 3.2"
    The user manual for the Drobo 16TB (4 x 4TB) 4-Bay USB 3.0 Storage Array Kit can be downloaded in .pdf format if it did not come with your new hard drive arrays, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Drobo users keep a unique electronic library for Drobo hard drive arrayss, where you can use our link to download the user manual for the Drobo 16TB (4 x 4TB) 4-Bay USB 3.0 Storage Array Kit.

    The user manual lists all of the functions of the Drobo 16TB (4 x 4TB) 4-Bay USB 3.0 Storage Array Kit, all the basic and advanced features and tells you how to use the hard drive arrays. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Drobo service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Drobo 16TB (4 x 4TB) 4-Bay USB 3.0 Storage Array Kit. User manuals are also available on the Drobo website under Computers & Solutions - Drives & Storage - Hard Drive Arrays.
