User manual for the Eizo ColorEdge CX241-BK-CNX 24" Widescreen LED CX241-BK-CNX
The user manual for the Eizo ColorEdge CX241-BK-CNX 24" Widescreen LED CX241-BK-CNX provides
necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

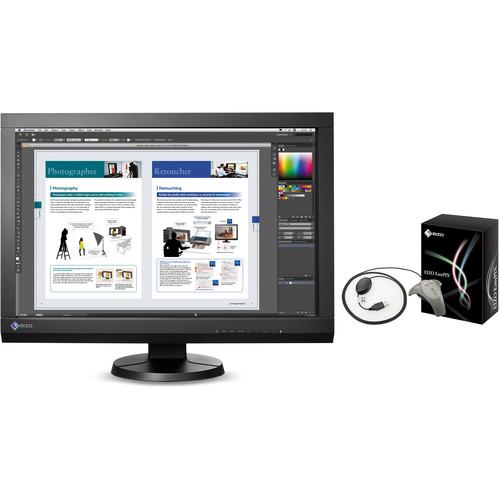

The ColorEdge CX241 24" Hardware Calibration IPS LCD Monitor from EIZO features a maximum resolution of 1920 x 1080, an enhanced 1000:1 contrast ratio and 350 cd/m2 brightness. It also features DisplayPort, HDMI and DVI inputs that enable connectivity to various types of graphics boards.
The ColorEdge CX241 Monitor has a built-in SelfCalibration sensor which allows you to automate calibration. It also incorporates EIZO's patented Digital Uniformity Equalizer (DUE) technology to ensure a Delta-E difference of 3 or less across the screen. Using the DisplayPort input, the monitor offers 10-bit simultaneous color display from a 16-bit LUT, which means it can present more than one billion colors simultaneously.
Designed for both soft proofing and digital device emulation, the bundled ColorNavigator software allows you to know how your clients will see color. The monitor also comes with a versatile stand that offers height, tilt and swivel adjustments as well as a portrait mode display.
Plug in the EasyPIX Color Matching Tool from EIZO to match the color and brightness of this monitor with that of your photo paper, ensuring your prints are identical to what you see on the screen. This color matching tool works on both Windows and Mac systems, and can leverage the color management capabilities of select photo editing software packages.
|
If you own a Eizo computer monitors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Eizo ColorEdge CX241-BK-CNX 24" Widescreen LED CX241-BK-CNX in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Eizo ColorEdge CX241-BK-CNX 24" Widescreen LED CX241-BK-CNX:
| Size | 24" / 61 cm | | Type | Color TFT (IPS) | | Backlight | LED | | Display Area (HxV) | 20.4 x 12.8" / 518.4 x 324.0 mm | | Viewing Angles | Horizontal: 178°
Vertical: 178° | | Brightness | 350 cd/m² | | Recommended Brightness | 120 cd/m² or less (with "temperature" of between "5000K" to "6500K") | | Recommended Resolution | 1920 x 1080 | | Contrast Ratio | 1,000:1 (when "due priority" setting is "brightness") | | Dot Pitch | 0.27 × 0.27 mm | | Response Time | Black-White-Black: Approximately 12 ms
Gray-to-Gray: Approximately 7.7 ms (when the overdrive setting is "on") | | Color Gamut | Adobe RGB Coverage: 99%
NTSC Ratio: 110% | | Input Terminals | 1 x DVI-I (single link , applicable to HDCP)
1 x HDMI (applicable to HDCP)
1 x DisplayPort (applicable to HDCP) | | Dot Clock | 164.5 MHz | | Horizontal Scan Range | DVI/DisplayPort: 26-78 kHz
HDMI: 15-78 kHz | | Vertical Scan Range | DVI (digital)/DisplayPort: 23.75-63 Hz (non-interlace, 720 x 400: 69-71 Hz)
HDMI: 23.75-61 Hz (720 x 400: 69-71 Hz)
DVI (analog): 47.5-61 Hz (non-interlace, 720 x 400: 69-71 Hz)
Frame Synchronous Mode
Digital 23.75-30.5 Hz / 47.5-61 Hz
Analog 47.5-61 Hz | | Display Color | DisplayPort: Approximately 1073.74 million colors (for 10 bit input)
HDMI: Approximately 1073.74 million colors (for 10 bit, 12 bit input)
DVI: Approximately 16.77 million colors | | Plug & Play | DVI / HDMI: VESA DDC2B / EDID structure 1.3
DisplayPort: VESA DisplayPort / EDID structure 1.4 | | Power Consumption | Screen Display On: 81 W or less
Power Saving Mode: 0.7 W or less (when only the DisplayPort 1 connector is connected, "input selection" is set to "manual", no USB device is connected, and DP power save is set to "on", the OS entered sleep mode or the monitor's power off setting activated)
Power Off: 0.5 W or less (when no USB device is connected , DP power save is set to "on")
Main Power Off: 0 W | | Power Management | DVI (Digital): DVI DMPM
DisplayPort: DisplayPort standard V1.1a
DVI (Analog): VESA DPM | | VESA Compatibility | 100 x 100 mm | | Tilt | Up 30°, down 0° | | Swivel | 344° | | Height Adjustment | 128 mm (5.0 inch, when tilt angle is 0°) | | Rotation | 90° (clockwise) | | Temperature | Operating: 32 to 95°F / 0 to 35°C Transportation/Storage: -4 to 140°F / -20 to 60°C | | Humidity | Operating: 20 to 80%
Transportation/Storage: 10 to 90%
(R.H., no condensation) | | Air Pressure | Operating: 540 to 1060 hPa
Transportation/Storage: 200 to 1060 hPa | | USB | Input Terminals: 2 x upstream ports, 2 x downstream ports
Standard: USB specification revision 2.0
Supply Current: Max. 500 mA / 1 port | | System Requirements | OS:
Microsoft Windows 8, 7, Vista or XP (32-bit and 64-bit)
CPU:
Pentium-compatible processor (Pentium 4 or later recommended)
Memory:
Microsoft Windows 8: 1 GB or more (32-bit) / 2 GB or more (64-bit)
Microsoft Windows 7: 1 GB or more (32-bit) / 2 GB or more (64-bit)
Microsoft Windows Vista: 1 GB or more
Microsoft Windows XP: 512 MB or more (1 GB or more recommended)
Colors: 24 bit or more (recommended)
Resolution: 1680 x 1050 or higher (recommended)
USB ports:
At least 2 free ports are required when using the sensor in addition to connecting the PC to the monitor by USB
Monitor:
EIZO EasyPIX Software-supported EIZO monitors
EIZO USB Cable (MD-C93)
Macintosh: Not compatible with iMac PowerPC, iBook, iBook G4
OS:
OS X 10.8, Mac OS X 10.7, 10.6, 10.5 (PowerPC, Intel CPU), 10.4.11 (PowerPC, Intel CPU)
Memory:
OS X 10.8: 2 GB or more
Mac OS X 10.7: 2 GB or more
Mac OS X 10.6: 1 GB or more
Mac OS X 10.5, 10.4.11: 512 MB or more (1GB or more recommended)
Colors: 16.7 million or more (recommended)
Resolution: 1680 x 1050 or higher (recommended)
USB ports:
At least 2 free ports are required when using the sensor in addition to connecting the PC to the monitor by USB
Monitor:
EIZO EasyPIX Software-supported EIZO monitors
EIZO USB Cable (MD-C93)
Compatible Displays:
EIZO FlexScan SX3031W, SX2761W, SX2462W, SX2461W, S2433W, S2432W, T2351W (Windows only), SX2262W, S2243W, S2242W, S2233W, S2232W
EIZO ColorEdge CG303W, CG301W, CG245W, CG243W, CG242W, CG241W, CE240W, CG222W, CG221, CG220, CG211, CG210, CE210W, CS230
EIZO FORIS FS2331 (Windows only)
Compatible Software
Adobe Photoshop (CS3, CS4, CS5), Adobe Photoshop Lightroom, Adobe Photoshop Elements, Nikon ViewNX, Canon Digital Photo Professional, Olympus Master 2, Olympus Viewer 2, Pentax Photo Laboratory, Pentax Photo Browser, Sony Image Data Converter SR (V2, V3), Panasonic Silkypix Developer Studio 3.0SE | | Agency Certifications | CE, FCC-B, RoHS, WEEE | | Dimensions (WxHxD) | Main Unit: 22.6 x 16.4-21.5 x 9.7" / 575.0 x 417.0-545.0 x 245.5 mm (when tilt angle is 0°)
Main Unit (Without Stand): 22.60 x 15.70 x 2.95" / 575.00 x 398.00 x 75.00 mm | | Weight | Main Unit: Approximately 19.8 lb / 9.0 kg
Main Unit (without stand): Approximately 14.1 lb / 6.4 kg | | Package Weight | 27.1 lb | | Box Dimensions (LxWxH) | 25.0 x 20.8 x 12.8" | |
