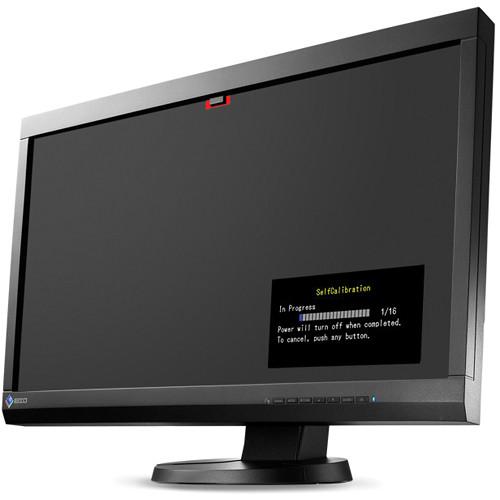

The CS230 ColorEdge Widescreen LED Backlit IPS LCD Monitor with EasyPIX Color Matching Tool from EIZO features a 23" widescreen display complete with a 1920 x 1080 native resolution and a 10.5 ms response time. The enhanced resolution and minimal response time ensure an improved viewing experience. This monitor comes equipped with IPS (In-Plane Switching) technology which helps to provide enhanced 178° horizontal and vertical viewing angles, 300 cd/m² brightness, and excellent image quality.

The included EIZO EasyPIX Color Matching Tool allows you to match the color and brightness of your monitor with that of your photo paper, ensuring that your prints are identical to what you see on your screen.

This monitor is designed for color accuracy. The built-in correction sensor helps to adjust the color calibration of the monitor based on what the monitor is currently being used for. Inside the monitor you'll find EIZO's own circuitry for enhanced processing of graphical processes, allowing the monitor to quickly adjust display properties to meet your viewing needs.

Setup and configuration of this monitor is simple as it comes equipped with DVI-I, HDMI, and DisplayPort inputs ensuring you can plug this monitor into a variety of computers. You can even connect two separate computers to the integrated dual USB upstream ports. Alongside the dual USB upstream ports, you will also find two USB downstream ports for even more connectivity options.
If you own a Eizo computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Eizo CS230 23" ColorEdge Widescreen LED CS230-BK-CNX in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Eizo CS230 23Download user manual for Eizo CS230 23" ColorEdge Widescreen LED CS230-BK-CNX
(PDF file, 5.61 MB)
Additional parameters of the Eizo CS230 23" ColorEdge Widescreen LED CS230-BK-CNX:
Calibration Tool Specifications
Windows Compatibility Microsoft Windows 8 (32bit and 64bit) Microsoft Windows 7 (32bit and 64bit) Microsoft Windows Vista (32bit and 64bit) Microsoft Windows XP (32bit and 64bit)
Mac Compatibility Macintosh: satisfy the OS requirement (except iMac (PowerPC), iBook, iBook G4) (Built-in USB)
OS X 10.8, Mac OS X 10.7, 10.6, 10.5 (PowerPC, Intel CPU), 10.4.11 (PowerPC, Intel CPU)
Compatible Displays CS230, SX3031W, SX2762W, SX2761W, EV2736W, SX2462W, SX2461W, S2433W, S2432W, EV2436W, EV2333W, SX2262W, S2243W, S2242W, S2233W, S2232W, T2351W, FS2333, FS2332, FS2331

At least 2 free USB ports are required when using the sensor in addition to connecting the computer to the monitor by USB.

Agency Certifications CE, FCC-B, RoHS, WEEE
Panel
Type IPS
Size 23" / 58 cm (584 mm diagonal)
Native Resolution 1920 x 1080
Aspect Ratio 16:9
Display Size (HxV) 20.1 x 11.3" / 509.2 x 286.4 mm
Pixel Pitch (HxV) 0.2652 x 0.2652 mm
Grayscale Tones DisplayPort: 1024 tones (a palette of 65281 tones)
DVI, HDMI: 256 tones (a palette of 65281 tones)
Display Colors DisplayPort: 1.07 billion from a palette of 278 trillion
DVI, HDMI: 16.77 million from a palette of 278 trillion
Viewing Angles Horizontal: 178°
Vertical: 178°
Brightness 300 cd/m²
Recommended Brightness for Calibration 120 cd/m²
Contrast Ratio (Typical) 1,000:1
Response Time 10.5 ms (gray-to-gray, typical)
Video Signals
Input Terminals DVI-I 29 pin (with HDCP), DisplayPort (with HDCP), HDMI (with HDCP)
Digital Scanning Frequency (H, V) DisplayPort, DVI: 26 - 68 kHz, 23.75 - 63 Hz (VGA Text: 69 - 71 Hz)
HDMI: 15 - 68 kHz, 23.75 - 61 Hz
Analog Scanning Frequency (H, V) 26 - 68 kHz, 47.5 - 61 Hz
USB
Function 2 x ports for monitor control (2-port USB hub)
Standard USB 2.0
Power
Power Requirements AC 100 - 120 V / 200 - 240 V, 50 / 60 Hz
Maximum Power Consumption 54 W
Typical Power Consumption 21 W
Power Save Mode Less than 0.5 W
Standby Mode Less than 0.5 W
Power Management Power Save (VESA DPM, DisplayPort Version 1.1a, and DVI DMPM)
Self-Correction Yes
Other Specifications
Brightness Stabilization Yes
Digital Uniformity Equalizer Yes
Preset Modes Color Mode (User1, User2, User3, Paper, sRGB, Calibration)
Auto EcoView/Bright Regulator Yes
OSD Languages English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
Other Functions Screen Adjustment (Clock, Phase, Position, Resolution, Range (Auto)), Screen Size (full screen, enlarge, normal), Color Adjustment (Brightness, Contrast, Black Level, Independent 6-Color Control, Gamma, Temperature, Saturation, Hue, Gain, Enhancer, Reset), HDMI Settings (Noise Reduction), Range Extension, Signal Switching, OSD Menu Settings, Overdrive, Mode Preset, USB Selection, Signal Info, Monitor Info, DUE Priority, Key Lock, Signal Bandwidth, Power Indicator, All Reset
Environmental Requirements
Operating temperature 32 to 95°F / 0 to 35°C
Operating Humidity 20 to 80% (relative humidity, non-condensing)
Physical Specifications
Height Adjustment Range 154 mm
Tilt 30° up / 0° down
Swivel 344°
Pivot 90°
VESA Compatibility 100 x 100 mm
Weight With Stand: 16.5 lb / 7.5 kg
Without Stand: 10.6 lb / 4.8 kg
Dimensions (WxHxD) Landscape: 21.4 x 14.7-20.7 x 9.7" / 544.0 x 372.5-526.5 x 245.5 mm
Portrait: 13.9 x 22.2-24.7 x 9.7" / 353 x 563.5-627.0 x 245.5 mm
Without Stand: 21.4 x 13.9 x 3.0" / (544.0 x 353.0 x 75.0 mm)
Packaging Info
Package Weight 22.8 lb
Box Dimensions (LxWxH) 25.0 x 20.0 x 12.0"
