User manual Eizo CS240 ColorEdge 24.1" Widescreen LED CS240-BK-CN

Operating instructions and pdf manual for use - Eizo CS240 ColorEdge 24.1" Widescreen LED CS240-BK-CN User manual, User manual Eizo CS240 ColorEdge 24.1" Widescreen LED CS240-BK-CN, Eizo, CS240, ColorEdge, 24.1, Widescreen, LED, CS240-BK-CN,

User manual for Eizo CS240 ColorEdge 24.1" Widescreen LED CS240-BK-CN

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.
Eizo CS240 ColorEdge 24.1
  • Manufacturer: Eizo
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitors & Displays - Computer Monitors
  • Safety instructions
  • Startup and operation of the computer monitors
  • Tips for setting up your Eizo
  • Settings and expert assistance
  • Contact Eizo service
  • Troubleshooting
  • Warranty information
  • Price: 826 USD

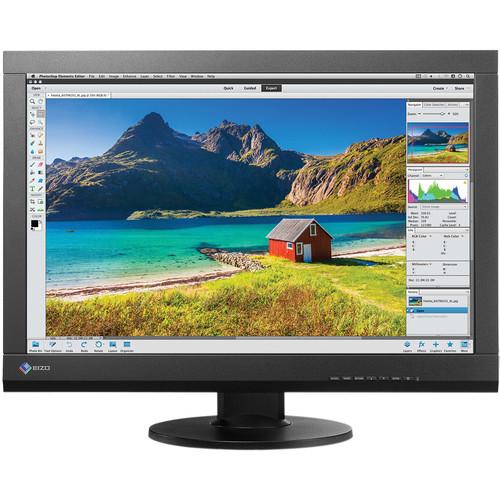

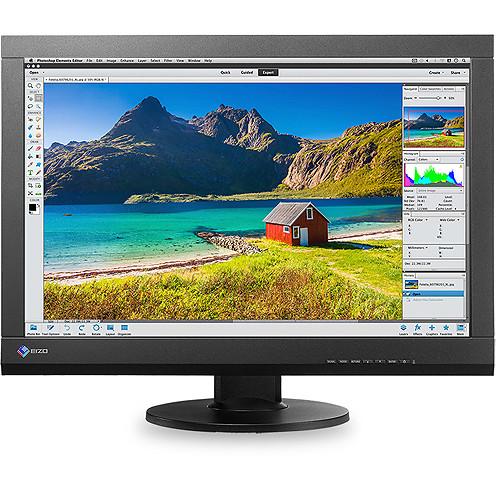

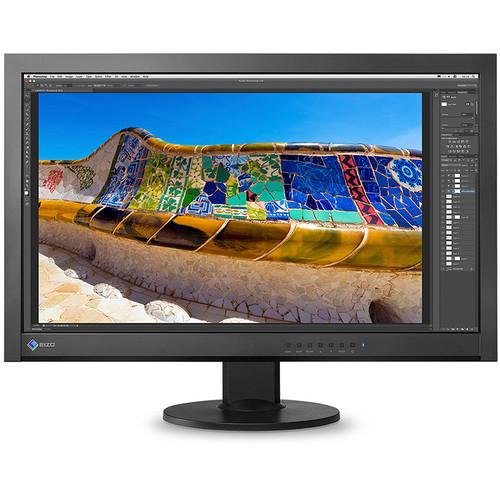

Eizo CS240 ColorEdge 24.1 Eizo CS240 ColorEdge 24.1 Eizo CS240 ColorEdge 24.1 Eizo CS240 ColorEdge 24.1
Click to enlarge image
We recommend checking out our discussion threads on the Eizo CS240 ColorEdge 24.1" Widescreen LED CS240-BK-CN, which address similar problems with connecting and setting up Computer Monitors Eizo.


User manual for the Eizo CS240 ColorEdge 24.1" Widescreen LED CS240-BK-CN

The user manual for the Eizo CS240 ColorEdge 24.1" Widescreen LED CS240-BK-CN provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

The CS240 ColorEdge Widescreen LED Backlit IPS LCD Monitor from EIZO features a 24.1" widescreen display complete with a 1920 x 1200 native resolution and a 7.7 response time. The enhanced resolution and minimal response time ensure an improved viewing experience. This monitor comes equipped with IPS (In-Plane Switching) technology which helps to provide enhanced 178° horizontal and vertical viewing angles, 350 cd/m² brightness, and excellent image quality.

This monitor is designed for color accuracy. The built-in correction sensor helps to adjust the color calibration of the monitor based on what the monitor is currently being used for. Inside the monitor you'll find EIZO's own circuitry for enhanced processing of graphical processes, allowing the monitor to quickly adjust display properties to meet your viewing needs.

Setup and configuration of this monitor is simple as it comes equipped with DVI-I, HDMI, and DisplayPort inputs ensuring you can plug this monitor into a variety of computers. You can even connect two separate computers to the integrated dual USB upstream ports. Alongside the dual USB upstream ports, you will also find two USB downstream ports for even more connectivity options.
If you own a Eizo computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Eizo CS240 ColorEdge 24.1" Widescreen LED CS240-BK-CN in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Eizo CS240 ColorEdge 24.1Download user manual for Eizo CS240 ColorEdge 24.1" Widescreen LED CS240-BK-CN
(PDF file, 4.09 MB)
Additional parameters of the Eizo CS240 ColorEdge 24.1" Widescreen LED CS240-BK-CN:
Specifications
    Panel
    Type IPS (In-Plane Switching)
    Size 24.1" / 61 cm (611 mm diagonal)
    Native Resolution 1920 x 1200
    Aspect Ratio 16:10
    Viewable Image Size 20.4 x 12.8" / 518.4 x 324.0 mm
    Pixel Pitch 0.270 x 0.270 mm
    Pixel Density 94 ppi
    Grayscale Tones DisplayPort, HDMI: 1,024 tones (a palette of 65,281 tones)
    DVI: 256 tones (a palette of 65,281 tones)
    Display Colors DisplayPort, HDMI: 1.07 billion from a palette of 278 trillion
    DVI: 16.77 million from a palette of 278 trillion
    Viewing Angles Horizontal: 178°
    Vertical: 178°
    Brightness 350 cd/m² (typical)
    Recommended Brightness for Calibration 120 cd/m² or less
    Contrast Ratio 1,000:1 (typical)
    Response Time 7.7 ms (gray-to-gray, typical)
    Wide Gamut Coverage (typical) Adobe RGB: 99%
    Video Signals
    Input Terminals DVI-I 29 pin (with HDCP), DisplayPort (with HDCP), HDMI (with HDCP, Deep Color)
    Digital Scanning Frequency (H, V) DisplayPort, DVI: 26 - 78 kHz, 23.75 - 63 Hz (VGA Text: 69 - 71 Hz)
    HDMI: 15 - 78 kHz, 23.75 - 61 Hz (VGA Text: 69 - 71 Hz)
    Analog Scanning Frequency (H, V) 26 - 78 kHz, 47.5 - 61 Hz
    USB
    Function 2 ports for monitor control
    2-port USB hub
    Standard USB 2.0
    Power
    Power Requirements 100 - 240 VAC, 50 / 60 Hz
    Power Consumption Maximum: 68 W
    Typical: 27 W
    Power Save Mode: Less than 0.5 W
    Standby Mode: Less than 0.5 W
    Power Management Power Save (VESA DPM, DisplayPort Version 1.1a, and DVI DMPM)
    Functions
    Digital Uniformity Equalizer Yes
    Preset Modes Color Mode (Custom, Paper, Adobe RGB, sRGB, Calibration)
    OSD Languages English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
    Other Specifications Screen Adjustment (Clock, Phase, Position, Resolution, Range (Auto)), Screen Size (full screen, enlarge, normal), Color Adjustment (Brightness, Independent 6-Color Control, Gamma, Color Gamut, Temperature, Saturation, Hue, Gain, Reset), HDMI Settings (Noise Reduction), Range Extension, Signal Switching, OSD Menu Settings, Overdrive, Input Skip, Mode Skip, USB Selection, Signal Info, Monitor Info, DUE Priority, Key Lock, Signal Bandwidth, Power Indicator, All Reset
    Environmental Specifications
    Operating Temperature 32 to 95°F / 0 to 35°C
    Operating Humidity 20 to 80%
    Standards and Certifications
    Standards and Compliance CB, CE, TUV/GS, cTUVus, FCC-B, Canadian ICES-003-B, VCCI-B, TUV/Ergonomics (including ISO 9241-307), RCM, RoHS, WEEE, GOST-R
    Physical Specifications
    Height Adjustment Range 5.1" / 130 mm
    Tilt 35° up, 5° down
    Swivel 344°
    Pivot 90°
    VESA Mount Size 100 x 100 mm
    Dimensions Landscape: 22.6 x 16.7-21.8 x 9.6" / 575 x 423-553 x 245 mm
    Portrait: 15.7 x 23.1-25.6 x 9.6" / 398 x 586-651 x 245 mm
    Without Stand: 22.6 x 15.7 x 2.8" / 575 x 398 x 71 mm
    Weight With Stand: 19.2 lb / 8.7 kg
    Without Stand: 13.2 lb / 6.0 kg
    Packaging Info
    Package Weight 24.4 lb
    Box Dimensions (LxWxH) 28.0 x 20.0 x 9.0"
    The user manual for the Eizo CS240 ColorEdge 24.1" Widescreen LED CS240-BK-CN can be downloaded in .pdf format if it did not come with your new computer monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Eizo users keep a unique electronic library for Eizo computer monitorss, where you can use our link to download the user manual for the Eizo CS240 ColorEdge 24.1" Widescreen LED CS240-BK-CN.

    The user manual lists all of the functions of the Eizo CS240 ColorEdge 24.1" Widescreen LED CS240-BK-CN, all the basic and advanced features and tells you how to use the computer monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Eizo service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Eizo CS240 ColorEdge 24.1" Widescreen LED CS240-BK-CN. User manuals are also available on the Eizo website under Computers & Solutions - Monitors & Displays - Computer Monitors.
