User manual for the Eizo CX241 24" Widescreen ColorEdge LED Backlit CX241-BK-CN

The user manual for the Eizo CX241 24" Widescreen ColorEdge LED Backlit CX241-BK-CN provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

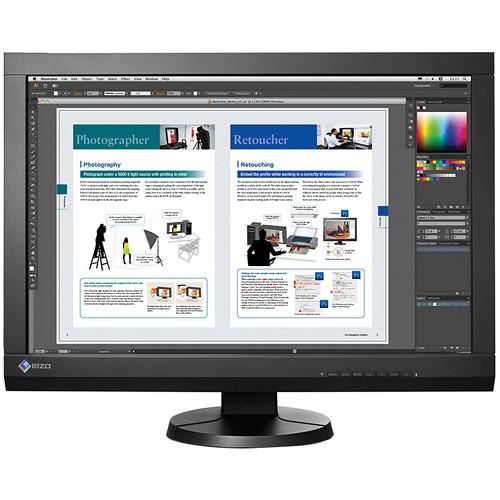

The CX241 24" Widescreen ColorEdge LED Backlit IPS Monitor from EIZO features a built-in color sensor to ensure the monitor maintains your settings by adjusting various aspects of the display at pre-determined intervals. The display itself reproduces 99% of the Adobe RGB color space for enhanced color accuracy while remaining uniform from corner to corner thanks to EIZO's DUE equalizer technology. Within 7 minutes of the time you turn on your CX241 monitor, the display will be warmed up and ready to use.

The EIZO CX241 comes equipped with DisplayPort, DVI-I, and HDMI inputs, making it easy to plug this monitor into a variety of computer configurations. The IPS display comes with a max resolution of 1920 x 1200, a 1,000:1 contrast ratio, a 7.7 ms response time, a brightness rating of 350 cd/m² and support for up to 1.07 billion colors. Whether mounting this VESA-compatible monitor to the wall or viewing it from the stand you can see the display from nearly any point of view as it supports 178° horizontal and vertical viewing angles.
If you own a Eizo computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Eizo CX241 24" Widescreen ColorEdge LED Backlit CX241-BK-CN in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Eizo CX241 24Download user manual for Eizo CX241 24" Widescreen ColorEdge LED Backlit CX241-BK-CN
(PDF file, 3.79 MB)
Additional parameters of the Eizo CX241 24" Widescreen ColorEdge LED Backlit CX241-BK-CN:
Specifications
    LCD Panel
    Size 24" / 61 cm
    Type Color TFT (IPS)
    Backlight LED
    Display Area (HxV) 20.4 x 12.8" / 518.4 x 324.0 mm
    Viewing Angles Horizontal: 178°
    Vertical: 178°
    Brightness 350 cd/m²
    Recommended Brightness 120 cd/m² or less (with "temperature" of between "5000K" to "6500K")
    Recommended Resolution 1920 x 1080
    Contrast Ratio 1,000:1 (when "due priority" setting is "brightness")
    Dot Pitch 0.27 × 0.27 mm
    Response Time Black-White-Black: Approximately 12 ms
    Gray-to-Gray: Approximately 7.7 ms (when the overdrive setting is "on")
    Color Gamut Adobe RGB Coverage: 99%
    NTSC Ratio: 110%
    Video Signals
    Input Terminals 1 x DVI-I (single link , applicable to HDCP)
    1 x HDMI (applicable to HDCP)
    1 x DisplayPort (applicable to HDCP)
    Dot Clock 164.5 MHz
    Horizontal Scan Range DVI/DisplayPort: 26-78 kHz
    HDMI: 15-78 kHz
    Vertical Scan Range DVI (digital)/DisplayPort: 23.75-63 Hz (non-interlace, 720 x 400: 69-71 Hz)
    HDMI: 23.75-61 Hz (720 x 400: 69-71 Hz)
    DVI (analog): 47.5-61 Hz (non-interlace, 720 x 400: 69-71 Hz)
    Frame Synchronous Mode
    Digital 23.75-30.5 Hz / 47.5-61 Hz
    Analog 47.5-61 Hz
    Display Color DisplayPort: Approximately 1073.74 million colors (for 10 bit input)
    HDMI: Approximately 1073.74 million colors (for 10 bit, 12 bit input)
    DVI: Approximately 16.77 million colors
    Plug & Play DVI / HDMI: VESA DDC2B / EDID structure 1.3
    DisplayPort: VESA DisplayPort / EDID structure 1.4
    Power Supply
    Power Consumption Screen Display On: 81 W or less
    Power Saving Mode: 0.7 W or less (when only the DisplayPort 1 connector is connected, "input selection" is set to "manual", no USB device is connected, and DP power save is set to "on", the OS entered sleep mode or the monitor's power off setting activated)
    Power Off: 0.5 W or less (when no USB device is connected , DP power save is set to "on")
    Main Power Off: 0 W
    Power Management DVI (Digital): DVI DMPM
    DisplayPort: DisplayPort standard V1.1a
    DVI (Analog): VESA DPM
    Other Specifications
    VESA Compatibility 100 x 100 mm
    Tilt Up 30°, down 0°
    Swivel 344°
    Height Adjustment 5" / 128 mm (when tilt angle is 0°)
    Rotation 90° (clockwise)
    Temperature Operating: 32 to 95°F / 0 to 35°C
    Transportation/Storage: -4 to 140°F / -20 to 60°C
    Humidity Operating: 20 to 80%
    Transportation/Storage: 10 to 90%
    (R.H., no condensation)
    Air Pressure Operating: 540 to 1060 hPa
    Transportation/Storage: 200 to 1060 hPa
    USB Input Terminals: 2 x upstream ports, 2 x downstream ports
    Standard: USB specification revision 2.0
    Supply Current: Max. 500 mA / 1 port
    Dimensions (WxHxD) Main Unit: 22.6 x 16.4-21.5 x 9.7" / 575.0 x 417.0-545.0 x 245.5 mm (when tilt angle is 0°)
    Main Unit (Without Stand): 22.60 x 15.70 x 2.95" / 575.00 x 398.00 x 75.00 mm
    Weight Main Unit: Approximately 19.8 lb / 9.0 kg
    Main Unit (without stand): Approximately 14.1 lb / 6.4 kg
    Packaging Info
    Package Weight 25.4 lb
    Box Dimensions (LxWxH) 26.0 x 21.0 x 12.5"
