User manual Eizo FG2421-BK 23.5" Widescreen LED Backlit VA FG2421-BK

Operating instructions and pdf manual for use - Eizo FG2421-BK 23.5" Widescreen LED Backlit VA FG2421-BK User manual, User manual Eizo FG2421-BK 23.5" Widescreen LED Backlit VA FG2421-BK, Eizo, FG2421-BK, 23.5, Widescreen, LED, Backlit, VA, FG2421-


User manual for Eizo FG2421-BK 23.5" Widescreen LED Backlit VA FG2421-BK

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Eizo FG2421-BK 23.5
  • Manufacturer: Eizo
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitors & Displays - Computer Monitors
  • Safety instructions
  • Startup and operation of the computer monitors
  • Tips for setting up your Eizo
  • Settings and expert assistance
  • Contact Eizo service
  • Troubleshooting
  • Warranty information
  • Price: 582 USD
We recommend checking out our discussion threads on the Eizo FG2421-BK 23.5" Widescreen LED Backlit VA FG2421-BK, which address similar problems with connecting and setting up Computer Monitors Eizo.



User manual for the Eizo FG2421-BK 23.5" Widescreen LED Backlit VA FG2421-BK

The user manual for the Eizo FG2421-BK 23.5" Widescreen LED Backlit VA FG2421-BK provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

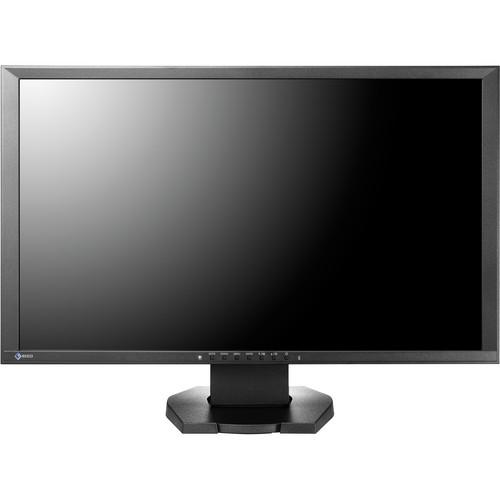

The FG2421-BK 23.5" Widescreen LED Backlit VA LCD Gaming Monitor from EIZO comes with a black housing and features a 1920 x 1080 resolution along with a response time of less than 1 ms when utilizing the integrated Turbo 240 display feature. This Turbo 240 display feature effectively converts a 120 Hz input signal into 240 Hz thus doubling the refresh rate and creating a response time nearly invisible to the naked eye.

The FG2421 monitor from EIZO also supports an enhanced brightness rating of 400 cd/m², a 5,000:1 contrast ratio, and enhanced 176° horizontal and vertical display angles. Found on the back of the monitor are DipslayPort, DVI-D, and HDMI inputs allowing you to connect this monitor to a variety of computer configurations as well as three 3.5 mm audio jacks to connect to a variety of audio devices. Accompanying the audio and video inputs is a two-port USB hub allowing you to connect a variety of USB compatible peripheral devices directly to the monitor.
If you own a Eizo computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Eizo FG2421-BK 23.5" Widescreen LED Backlit VA FG2421-BK in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Eizo FG2421-BK 23.5Download user manual for Eizo FG2421-BK 23.5" Widescreen LED Backlit VA FG2421-BK
(PDF file, 4.59 MB)
Additional parameters of the Eizo FG2421-BK 23.5" Widescreen LED Backlit VA FG2421-BK:
Specifications
    Panel
    Type VA
    Native Resolution 1920 x 1080 (16:9 aspect ratio)
    Display Size (HxV) 20.5 x 11.5" / 521.3 x 293.2 mm
    Pixel Pitch 0.272 x 0.272 mm
    Grayscale Tones 256 tones (a palette of 1021 tones)
    Display Colors 16.77 million from a palette of 1.06 billion
    Viewing Angles Horizontal: 176°
    Vertical: 176°
    Brightness 400 cd/m² (typical) (turbo 240: OFF)
    Contrast Ratio 5,000:1 (typical) (15,000:1 with ContrastEnhancer)
    Response Time Less than 1 ms (Turbo 240: ON, monitor spec)
    Video Signals
    Inputs 1 x DVI-D
    1 x HDMI
    1 x DisplayPort
    Digital Scanning Frequency (H, V) HDMI: 15 - 100 kHz, 23 - 122 Hz
    DVI: 31 - 138 kHz, 59 - 122 Hz
    DisplayPort: 31 - 138 kHz, 49 - 122 Hz
    Sync Formats PC: Separate
    AV: None
    Audio
    Inputs 1 x 3.5 mm stereo jack
    1 x DisplayPort
    1 x HDMI
    Outputs 1 x 3.5 mm stereo jack
    1 x 3.5 mm headphone jack
    Sound Adjustment Volume, sound level, source (DisplayPort, HDMI)
    USB
    Function 1 x USB port for monitor control 2 x port USB hub
    Power
    Power Requirements 100-240 V / 200-240 V, 50/60 Hz
    Maximum Power Consumption 53 W
    Typical Power Consumption 20 W
    Power Save Mode Less than 0.5 W
    Power Management Power save (VESA DPM and DVI DMPM)
    Other Specifications
    Preset Modes User1, User2, User3, FPS1, FPS2, RTS, Web
    Auto EcoView/Bright Regulator Yes (default: disabled)
    OSD Languages English, French, German, Italian, Japanese, Simplified and Traditional Chinese, Spanish, Swedish
    Other Functions Turbo 240, Product Information (name, serial number, resolution, operating time, etc.), OSD Menu Settings, DisplayPort/HDMI Color Space, Rear Logo Light, Adjustment Lock, Power Indicator, Auto Color, Reset
    Operating Temperature 41 to 95°F / 5 to 35°C
    Operating Humidity 20 to 80% non-condensing
    Certifications & Standards CB, TUV/GS, CE, cTUVus, FCC-B, Canadian ICES-003-B, TUV/S, PSE, VCCI-B, TUV/Ergonomics, C-tick, GOST-R, RoHS, WEEE
    Please contact the EIZO group company or distributor in your country for the latest information
    Height Adjustment Range 2.4" / 60 mm
    Tilt 25° up, 0° down
    Swivel 344°
    Dimensions (WxHxD) 22.2 x 15.4-17.8 x 7.9" / 563.5 x 391.0-451.0 x 200.0 mm
    Weight 13.6 lb / 6.2 kg
    Packaging Info
    Package Weight 17.95 lb
    Box Dimensions (LxWxH) 24.9 x 19.2 x 6.5"
    The user manual for the Eizo FG2421-BK 23.5" Widescreen LED Backlit VA FG2421-BK can be downloaded in .pdf format if it did not come with your new computer monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Eizo users keep a unique electronic library for Eizo computer monitorss, where you can use our link to download the user manual for the Eizo FG2421-BK 23.5" Widescreen LED Backlit VA FG2421-BK.

    The user manual lists all of the functions of the Eizo FG2421-BK 23.5" Widescreen LED Backlit VA FG2421-BK, all the basic and advanced features and tells you how to use the computer monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Eizo service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Eizo FG2421-BK 23.5" Widescreen LED Backlit VA FG2421-BK. User manuals are also available on the Eizo website under Computers & Solutions - Monitors & Displays - Computer Monitors.
