User manual for the Eizo FlexScan T2381W 23" Multi-Touch LED IPS T2381W-BK

The user manual for the Eizo FlexScan T2381W 23" Multi-Touch LED IPS T2381W-BK provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

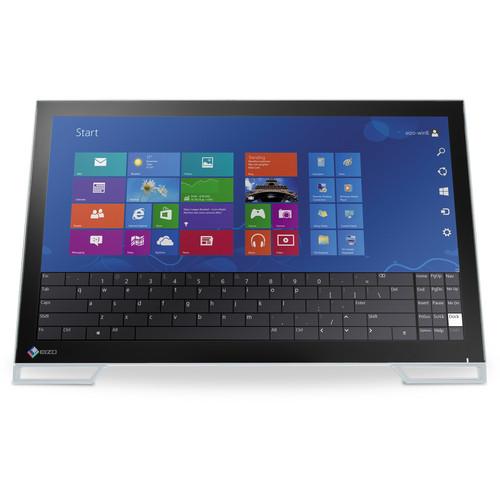

The black FlexScan T2381W 23" Multi-Touch LED IPS Monitor from EIZO provides comfort and durability. It features a 1920 x 1080 resolution along with a 6 ms response time, providing enhanced picture and image quality. View this monitor from a wide variety of angles as it supports 178° vertical and horizontal viewing angles. Connect this monitor to a variety of input devices with DVI-D, D-Sub mini, and DisplayPort connectivity. The monitor features a 2-port USB hub to connect peripheral devices quickly and easily along with a USB port for touch panel signal.
If you own a Eizo computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Eizo FlexScan T2381W 23" Multi-Touch LED IPS T2381W-BK in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Eizo FlexScan T2381W 23Download user manual for Eizo FlexScan T2381W 23" Multi-Touch LED IPS T2381W-BK
(PDF file, 4.05 MB)
Additional parameters of the Eizo FlexScan T2381W 23" Multi-Touch LED IPS T2381W-BK:
Specifications
    Panel
    Type IPS
    Backlight LED
    Size 23" (584 mm) (diagonal)
    Display Size H x V: 20.04 x 11.28" 509.10 x 286.40 mm
    Native Resolution 1920 x 1080
    Aspect Ratio 16:9
    Pixel Pitch 0.265 x 0.265 mm
    Display Colors 16.77 million from a palette of 1.06 billion
    Viewing Angle (H/V) 178°/178°
    Brightness Typical: 260 cd/m2
    Contrast Ratio Typical: 1000:1
    Response Time Typical: 6 ms (gray-to-gray)
    Touch Screen Information
    Type Project capacitive
    Communication Protocol USB
    Surface Hardness: 5 H
    Sync Format Separate
    Touch Screen Life: 50 million (minimum)
    Compatible Operating Systems Multi-touch: Windows 8 (32-bit, 64-bit), Windows 7 (32-bit, 64-bit)
    Single-touch: Windows XP (32-bit)
    Video Signals
    Input Terminals D-Sub mini 15-pin
    DVI-D 24-pin with HDCP
    DisplayPort with HDCP
    Digital Scanning Frequency (H, V) 31 - 68 kHz, 59 - 61 Hz (VGA Text: 69 - 71 Hz)
    Analog Scanning Frequency (H, V) 31 - 81 kHz, 55 - 76 Hz
    USB
    Function 1 port for touch panel control
    2-Port USB hub
    Standard USB 2.0
    Power
    Power Requirements AC 100 - 120 V / 200 - 240 V, 50 / 60 Hz
    Maximum Power Consumption 56 W
    Typical Power Consumption 18 W
    Power Save Mode Less than 0.5 W
    Power Management Power Save (VESA DPM, DisplayPort Rev. 1.1a, and DVI DMPM), Eco Timer
    Audio
    Speakers 1.0 W + 1.0 W
    Input Terminals 3.5 mm stereo jack
    Output Terminals 3.5 mm headphone jack
    Sound Adjustment Volume, Power Save, Source (DisplayPort)
    Features & Functions
    OSD Preset Modes: Fine contrast (Paper, Movie, sRGB, User1, User2)
    OSD Languages English, French, German, Italian, Japanese, Simplified and Traditional Chinese, Spanish, Swedish
    Other Settings Screen Adjustment (clock, phase, position, range (auto), Screen Size (full screen, enlarge, normal), Smoothing (5 stages), Border Intensity, Color Adjustment (brightness, contrast, gamma, temperature, saturation, hue, gain, overdrive, reset), Signal Switching, Product Information (name, serial number, resolution, operating time, etc.), OSD Menu Settings, Adjustment Lock, DDC/CI Lock, Power Indicator, Reset
    Environmental Requirements
    Temperature 41 to 95°F (5 to 35°C)
    Relative Humidity 20 to 80%
    General
    Certification c-Tick, CE, CB, cTUVus, FCC-B, Canadian ICES-003-B, TUV/S, VCCI-B, RoHS, WEEE, CCC, GOST-R
    Dimensions (W x H x D) Landscape (With Stand) 21.9 x 5.6 to 14.2 x 15.7" (556.7 x 143.9 to 360.7 x 89 to 401.3 mm)
    Without Stand: 21.9 x 13.3 x 2.1" (556.7 x 339.2 x 54.0 mm)
    Weight With Stand: 14.5 lb (6.6 kg)
    Without Stand: 13.2 lb (6.0 kg)
    Packaging Info
    Package Weight 19.5 lb
    Box Dimensions (LxWxH) 25.0 x 18.0 x 7.0"
    The user manual for the Eizo FlexScan T2381W 23" Multi-Touch LED IPS T2381W-BK can be downloaded in .pdf format if it did not come with your new computer monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Eizo users keep a unique electronic library for Eizo computer monitorss, where you can use our link to download the user manual for the Eizo FlexScan T2381W 23" Multi-Touch LED IPS T2381W-BK.

    The user manual lists all of the functions of the Eizo FlexScan T2381W 23" Multi-Touch LED IPS T2381W-BK, all the basic and advanced features and tells you how to use the computer monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Eizo service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Eizo FlexScan T2381W 23" Multi-Touch LED IPS T2381W-BK. User manuals are also available on the Eizo website under Computers & Solutions - Monitors & Displays - Computer Monitors.
