User manual for the Elation Professional Arena Par Zoom ARENA PAR ZOOM
The user manual for the Elation Professional Arena Par Zoom ARENA PAR ZOOM provides
necessary instructions for the proper use of the product Lighting & Studio - Continuous Lighting - DJ & Effect Lights.

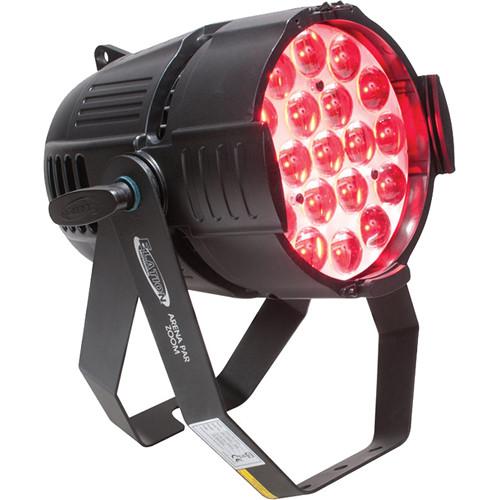

The Arena Par Zoom from Elation Professional is a lighting effect fixture. It features 19 OSRAM QUAD color LEDs, rated at 10W each. The Arena Par Zoom has a 10° to 60° motorized zoom, and selectable dimming curves and color temperature. The Arena Par Zoom also features strobe and variable strobe macros, 3 DMX channel modes, and a 4-button control panel with an LCD menu display. This fixture can be used either as a Master/Slave unit or as a standalone unit. You can power-link up to 4 Arena Par Zoom fixtures at 120V, or up to 8 fixtures at 230V. The Arena Par Zoom features a yoke assembly which can be used either as a floor stand bracket or to secure a mounting clamp for truss mounting. The control data input is made via 3-pin and 5-pin DMX connectors. This unit includes a power cable.
If you own a Elation Professional dj & effect lights and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Elation Professional Arena Par Zoom ARENA PAR ZOOM in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Elation Professional Arena Par Zoom ARENA PAR ZOOM:
Specifications
Lamp
19 x 10 W OSRAM QUAD LEDs
Lamp Life
Approximately 50,000 hours
Motorized Zoom
10° to 60°
Photometric Data
12,600 lux @ 9.8' (3 m), 10° minimum zoom 900 lux @ 9.8' (3 m), 60° maximum zoom
Color
Red, green, blue, and white
Color Temperature
Selectable 3200 - 7200 K
Dimmer
0-100%
Connectors
1 x 3-pin XLR, DMX input 1 x 3-pin XLR, DMX output 1 x 5-pin XLR, DMX input 1 x 5-pin XLR, DMX output 1 x PowerCON, power input 1 x PowerCON, power output
Controls and Indicators
1 x Mode button 1 x Up button 1 x Down button 1 x Enter button 1 x LCD menu display 1 x Power indicator, red 1 x DMX indicator, green
DMX Channels
5, 6, or 10
Approvals
CE approved, IP20 rated
Rigging Points
Dual yoke Hole Diameter: 0.47" (1.2 cm) Working Position: Any (360°)
