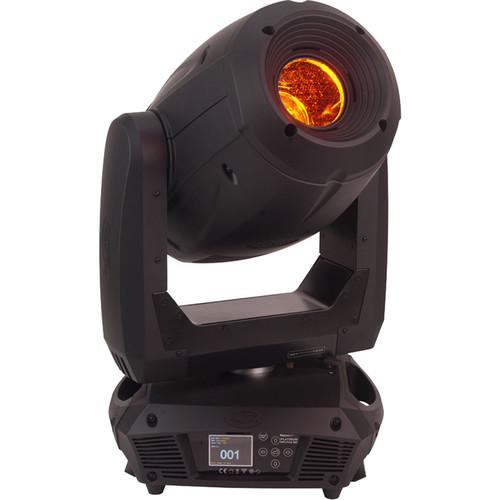

The Platinum Profile LED Fixture from Elation Professional is a profile / framing shutter LED spot luminaire with a 180W LED engine, a 9,000-lumen flux, and an 18° beam angle. It offers four rotating framing shutter blades, two color wheels with a total of 11 dichroic colors (including UV & CTO), and two gobo wheels: one with seven interchangeable rotating-indexing gobos and one with seven static-stamped gobos. Also featured are a three-facet rotating prism, a frost filter, a mechanical iris, motorized focus, and 8- & 16-bit resolution adjustable movement.

The Platinum Profile incorporates a six-button control panel and a full-color 180°-reversible menu display. It features RJ45 as well as five-pin XLR connectors and supports RDM (Remote Device Management) and Art-Net protocols. Flicker-free operation makes the unit suitable for broadcast TV and film. Three DMX channel modes (24, 26, and 36 channels) enable you to control varying levels of features.

The fixture features a powerCON input and an internal auto-switching power supply. It is compatible with 100 - 240 VAC outlets and has a maximum power consumption of 250W. The Platinum Profile can be mounted either upright or inverted (180°) using the included Omega brackets (clamps sold separately).
If you own a Elation Professional dj & effect lights and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Elation Professional Platinum Profile LED Fixture EPP597 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Elation Professional Platinum Profile LED Fixture EPP597:
Lamp 1 x 180 W LED engine
Average Lamp Life 20,000 h
Beam Angle 18°
Color Temperature 6,500K
CRI >85
Photometric Data 14,170 lux (1,316 fc) @ 8.2' (2.5 m) 18° full-on
4,561 lux (424 fc) @ 16.4' (5 m) 18° full-on
1,721 lux (160 fc) @ 24.6' (7.5 m) 18° full-on
Color 2 x Color Wheels:
Wheel 1: 5 x Dichroic colors, including UV
Wheel 2: 6 x Dichroic colors, including CTO
Gobos 2 x Gobo Wheels:
Wheel 1: 7 x Interchangeable rotating-indexing gobos
Wheel 2: 7 x Static-stamped gobos
Effects 4 x Rotating framing shutters and macros
3-Facet rotating prism and frost filter
Motorized focus & mechanical iris
Electronic dimming & strobe
DMX Connectors 1 x 5-pin XLR male, DMX in
1 x 5-pin XLR female, DMX out
1 x RJ45 Ethernet, Art-Net in
1 x RJ45 Ethernet, Art-Net out
DMX Channels 24, 26 & 36-channel modes
Control 1 x 6-button touch-control panel
RDM (Remote Device Management)
Full-color 180°-reversible LCD menu display
Movement Resolution 8-bit
16-bit
Power Connection Type 1 x powerCON, power in
1 x powerCON, power out
Power Supply 100 - 240 VAC, 50 / 60 Hz
Power Consumption 250 W max.
Operating Temperature -13 to 113°F (-25 to 45°C)
Working Position Upright or inverted (180°)
IP Rating IP 20
Approvals CE
Dimensions 14.2 x 16.0 x 25.0" (36.0 x 40.8 x 63.6 cm)
Weight 57 lb (26 kg)
