User manual for the Electro-Voice EKX-12P 12" Two-Way Powered F.01U.303.368

The user manual for the Electro-Voice EKX-12P 12" Two-Way Powered F.01U.303.368 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - PA Speakers.

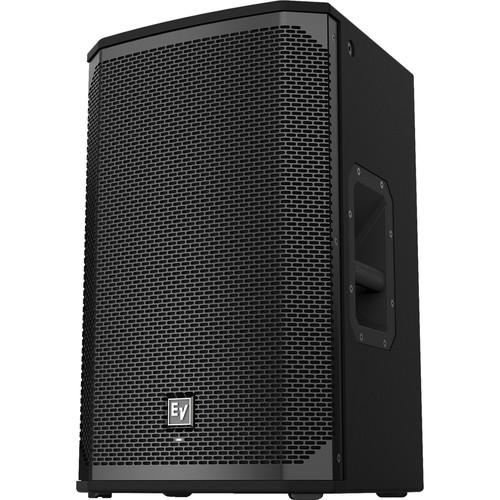

The EKX-12P 12" Two-Way Powered Loudspeaker from Electro-Voice features a 1500W Class D amplifier with integrated QuickSmartDSP and delivers up to 132 dB peak SPL utilizing high-sensitivity transducers. The EKX amplifier incorporates intelligent thermal management (with a variable-speed fan controlled by onboard sensors).

This powered loudspeaker allows easy setup via four presets (Music, Live, Speech, Club), sub/top system-match crossovers, three-band EQ, five user-programmable presets (Store and Recall settings), visual monitoring of limiter status, input level control and meters, and master volume control designed to ensure optimal gain structure.

The Cardioid Control Technology allows output to be steered towards the audience with up to 35 dB reduction on stage when multiple subwoofers are deployed. The EKX-12P is ideal for portable and installed applications. It has a lightweight and compact 15mm wood enclosure with internal bracing, durable EVCoat finish, eight M10 threaded mounting points, aluminum pole-mounts, and metal handles. This loudspeaker can mount on a tripod stand or on a pole above a subwoofer. It can also be used as a floor monitor by placing the loudspeaker on the integral monitor angle.
If you own a Electro-Voice pa speakers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Electro-Voice EKX-12P 12" Two-Way Powered F.01U.303.368 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Electro-Voice EKX-12P 12Download user manual for Electro-Voice EKX-12P 12" Two-Way Powered F.01U.303.368
(PDF file, 5.46 MB)
Additional parameters of the Electro-Voice EKX-12P 12" Two-Way Powered F.01U.303.368:
Specifications
    Connectors 1 x RCA, stereo input
    2 x XLR/TRS combo jack
    1 x XLR, link output
    Coverage Nominal: -6 dB
    Horizontal: 90°
    Vertical: 60°
    Crossover Frequency 1.7 kHz
    Enclosure Material 15 mm Plywood with EVCoat
    Frequency Response -10 dB: 50 Hz - 20 kHz
    -3 dB: 60 Hz - 18 kHz

    Hz Full space measurement using the music DSP preset.

    Grille 18 AWG steel with powdercoat
    Transducer HF: DH-1M 1" titanium compression driver
    LF: EVS-12M 12" (300 mm)
    Maximum SPL 132 dB

    132 dB maximum SPL is measured at 3.3' (1 m) using broadband pink noise at maximum output

    Power Consumption 1.8 A
    Current rating is 1/8 power
    Power Rating 1500 W
    Suspension 8 x M10 threaded mounting points
    Dimensions 23.9 x 14.76 x 14.02" (60.7 x 37.5 x 35.6 cm)
    Weight 18.8 kg (41.45 lb)
    Packaging Info
    Package Weight 52.0 lb
    Box Dimensions (LxWxH) 27.0 x 17.0 x 17.0"
