User manual Electro-Voice EKX-15SP Powered 15" Subwoofer F.01U.303.387

Operating instructions and pdf manual for use - Electro-Voice EKX-15SP Powered 15" Subwoofer F.01U.303.387 User manual, User manual Electro-Voice EKX-15SP Powered 15" Subwoofer F.01U.303.387, Electro-Voice, EKX-15SP, Powered, 15, Subwoofer, F.01U.3


User manual for Electro-Voice EKX-15SP Powered 15" Subwoofer F.01U.303.387

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.

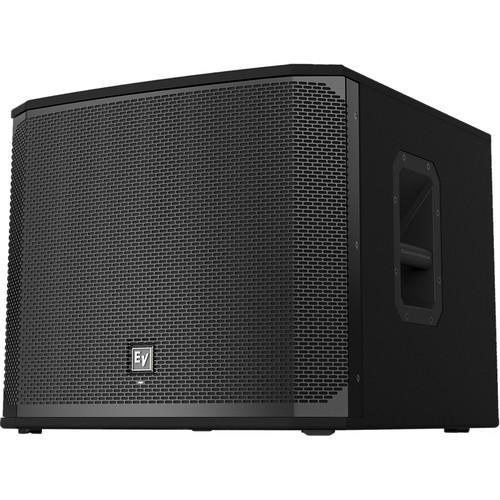

Electro-Voice EKX-15SP Powered 15
  • Manufacturer: Electro-Voice
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - PA Speakers
  • Safety instructions
  • Startup and operation of the pa speakers
  • Tips for setting up your Electro-Voice
  • Settings and expert assistance
  • Contact Electro-Voice service
  • Troubleshooting
  • Warranty information
  • Price: 899 USD
We recommend checking out our discussion threads on the Electro-Voice EKX-15SP Powered 15" Subwoofer F.01U.303.387, which address similar problems with connecting and setting up PA Speakers Electro-Voice.



User manual for the Electro-Voice EKX-15SP Powered 15" Subwoofer F.01U.303.387

The user manual for the Electro-Voice EKX-15SP Powered 15" Subwoofer F.01U.303.387 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - PA Speakers.

The EKX-15SP Powered 15" Subwoofer from Electro-Voice features a 1300 W class D power amplifier which delivers up to 133 dB peak SPL, and utilizes high-sensitivity EV transducers. The QuickSmartDSP processor has a single-knob user interface, and intuitive menu navigation via LCD. The Cardioid Control Technology allows output to be steered towards the audience with up to 35 dB reduction on stage when multiple subwoofers are deployed. The EKX-15SP incorporates intelligent thermal management (with a variable-speed fan controlled by onboard sensors). This subwoofer features two XLR outputs for system expansion to additional loudspeakers or subwoofers, large slot ports for low distortion and bass extensions, and a metal grille reinforcement bar. It also features an M20 threaded pole mount plate.
If you own a Electro-Voice pa speakers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Electro-Voice EKX-15SP Powered 15" Subwoofer F.01U.303.387 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Electro-Voice EKX-15SP Powered 15Download user manual for Electro-Voice EKX-15SP Powered 15" Subwoofer F.01U.303.387
(PDF file, 5.46 MB)
Additional parameters of the Electro-Voice EKX-15SP Powered 15" Subwoofer F.01U.303.387:
Specifications
    Connectors 2 x XLR/TRS combo jack
    2 x XLR, link output
    Enclosure Material 15 mm, plywood with EVCoat
    Frequency Response 40 to 180 Hz @ -10 dB
    45 to 150 Hz @ -3 dB (half space measurements)
    Grille 18 AWG steel with powdercoat
    Low Frequency Transducer EVS-15C 15" (38.1 cm)
    Low-Pass Frequency Adjustable: 80 Hz, 100 Hz, 120 Hz, 150 Hz
    Maximum SPL 133 dB peak

    dB Maximum SPL is measured at 3.3' (1 m) using broadband pink noise at maximum output

    Power Consumption 1.8 A
    Current rating is 1/8 power
    Power Rating 1300 W
    Dimensions 17.91 x 20.87 x 21.69" (45.5 x 53.0 x 55.1 cm)
    Weight 57.76 lb (26.2 kg)
    Packaging Info
    Package Weight 72.55 lb
    Box Dimensions (LxWxH) 26.3 x 24.0 x 21.3"
    The user manual for the Electro-Voice EKX-15SP Powered 15" Subwoofer F.01U.303.387 can be downloaded in .pdf format if it did not come with your new pa speakers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Electro-Voice users keep a unique electronic library for Electro-Voice pa speakerss, where you can use our link to download the user manual for the Electro-Voice EKX-15SP Powered 15" Subwoofer F.01U.303.387.

    The user manual lists all of the functions of the Electro-Voice EKX-15SP Powered 15" Subwoofer F.01U.303.387, all the basic and advanced features and tells you how to use the pa speakers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Electro-Voice service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Electro-Voice EKX-15SP Powered 15" Subwoofer F.01U.303.387. User manuals are also available on the Electro-Voice website under Pro Audio - Live Sound - PA Speakers.
