User manual for Electro-Voice ELX112P 12" Live X 2-Way F.01U.170.820
Overall Rating: 5.0
100% of respondents would recommend this to a friend.
- Manufacturer: Electro-Voice
- Basic description and contents of package
- Product classification: Pro Audio - Live Sound - PA Speakers
- Safety instructions
- Startup and operation of the pa speakers
- Tips for setting up your Electro-Voice
- Settings and expert assistance
- Contact Electro-Voice service
- Troubleshooting
- Warranty information
- Price: 599 USD
|
We recommend checking out our discussion threads on the Electro-Voice ELX112P 12" Live X 2-Way F.01U.170.820,
which address similar problems with connecting and setting up PA Speakers Electro-Voice.
|
User manual for the Electro-Voice ELX112P 12" Live X 2-Way F.01U.170.820
The user manual for the Electro-Voice ELX112P 12" Live X 2-Way F.01U.170.820 provides
necessary instructions for the proper use of the product Pro Audio - Live Sound - PA Speakers.

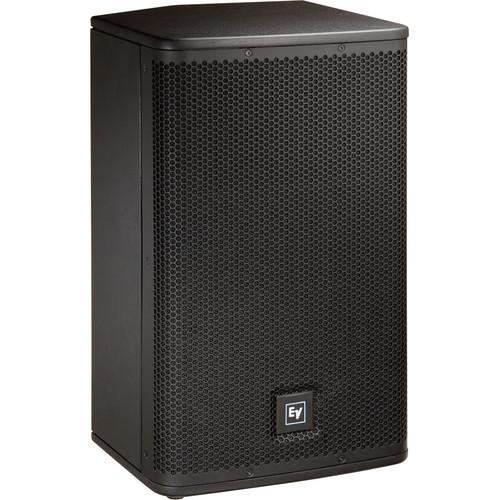

The ELX112P 12" Live X 2-Way Powered Loudspeaker from Electro-Voice offers pro-quality audio for sound reinforcement, PA, and stage monitoring applications. The speaker has a 12" woofer and a 1.5" titanium compression driver to provide crisp, natural audio with a wide frequency response. The speaker has a 1000W Class-D amplifier to provide a strong, distortion-free performance while keeping weight and heat to a minimum.
The plywood cabinet can be placed vertically or horizontally for terrific versatility, and it has a standard 35mm pole socket for creating stacks or mounting on top of a subwoofer. A pair of XLR/TRS combo inputs, a stereo RCA input, and an XLR link output allow you to connect to virtually any sound system. The steel grille protects the driver elements and provides a sleek look. Integrated carrying handles provide convenient transportation.
|
If you own a Electro-Voice pa speakers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Electro-Voice ELX112P 12" Live X 2-Way F.01U.170.820 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Electro-Voice ELX112P 12" Live X 2-Way F.01U.170.820:
| Active or Passive | Active | | Frequency Response | 60Hz - 18kHz ±3dB
50Hz - 20kHz ±10dB | | Amplifier | 1000W, Class-D | | Maximum Sound Pressure Level (SPL) | 132dB | | Nominal Sensitivity | Not Specified by Manufacturer | | Crossover | 1.7kHz | | Coverage | 90 x 50° (HxV) | | Low Frequency Driver | 12" (305mm) Woofer | | High Frequency Driver | 1.5" (39mm) Titanium Diaphragm Compression Driver | | Enclosure Material | 9-Ply 15mm Plywood, Internally Braced with Textured Paint, 18-Guage Powder-Coated Steel Grille, and Integrated Handles | | Input Connections | 2 x XLR/TRS Combo Inputs
1 x Stereo RCA Input (2 Jacks, L/R)
1 x XLR Link Output | | Mounting | 35mm Pole Socket | | Dimensions (HxWxD) | 23.9 x 14.25 x 13.39" (607 x 362 x 340mm) | | Weight | 41.45 lbs (18.8kg) | | Package Weight | 48.4 lb | | Box Dimensions (LxWxH) | 27.0 x 16.5 x 16.5" | |
The user manual for the Electro-Voice ELX112P 12" Live X 2-Way F.01U.170.820 can be downloaded in .pdf
format if it did not come with your new pa speakers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Electro-Voice users keep a unique electronic library
for Electro-Voice pa speakerss,
where you can use our link to download the user manual for the Electro-Voice ELX112P 12" Live X 2-Way F.01U.170.820.
The user manual lists all of the functions of the Electro-Voice ELX112P 12" Live X 2-Way F.01U.170.820,
all the basic and advanced features and tells you how to use the pa speakers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Electro-Voice service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Electro-Voice ELX112P 12" Live X 2-Way F.01U.170.820. User manuals are also
available on the Electro-Voice website under Pro Audio - Live Sound - PA Speakers.
Question and answer discussion forum concerning user instructions and resolving problems with the Electro-Voice ELX112P 12" Live X 2-Way F.01U.170.820 - no comments have been made yet - be the first to add a comment
