User manual Electro-Voice ELX115 15" Live X 2-Way Passive F.01U.170.824

Operating instructions and pdf manual for use - Electro-Voice ELX115 15" Live X 2-Way Passive F.01U.170.824 User manual, User manual Electro-Voice ELX115 15" Live X 2-Way Passive F.01U.170.824, Electro-Voice, ELX115, 15, Live, X, 2-Way, Passive, F.


User manual for Electro-Voice ELX115 15" Live X 2-Way Passive F.01U.170.824

Electro-Voice ELX115 15
  • Manufacturer: Electro-Voice
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - PA Speakers
  • Safety instructions
  • Startup and operation of the pa speakers
  • Tips for setting up your Electro-Voice
  • Settings and expert assistance
  • Contact Electro-Voice service
  • Troubleshooting
  • Warranty information
  • Price: 399 USD
We recommend checking out our discussion threads on the Electro-Voice ELX115 15" Live X 2-Way Passive F.01U.170.824, which address similar problems with connecting and setting up PA Speakers Electro-Voice.



User manual for the Electro-Voice ELX115 15" Live X 2-Way Passive F.01U.170.824

The user manual for the Electro-Voice ELX115 15" Live X 2-Way Passive F.01U.170.824 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - PA Speakers.

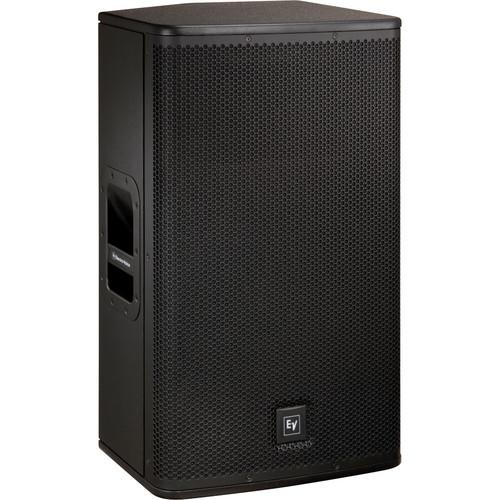

The ELX115 from Electro-Voice is a 2-way passive loudspeaker that offers pro-quality audio for sound reinforcement, PA, and stage monitoring applications. The speaker has a 15" woofer and a 1.5" titanium compression driver to provide crisp, natural audio with a wide frequency response. The speaker has a 400W continuous (1600W peak) power handling capability to provide a strong, distortion-free performance.

The plywood cabinet can be placed vertically or horizontally for terrific versatility, and it has a standard 35mm pole socket for creating stacks or mounting on top of a subwoofer. A pair of NL4 Speakon connectors allow you to connect to virtually any professional sound system. The steel grille protects the driver elements and provides a sleek look. Integrated carrying handles provide convenient transportation.
If you own a Electro-Voice pa speakers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Electro-Voice ELX115 15" Live X 2-Way Passive F.01U.170.824 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Electro-Voice ELX115 15Download user manual for Electro-Voice ELX115 15" Live X 2-Way Passive F.01U.170.824
(PDF file, 1.64 MB)
Additional parameters of the Electro-Voice ELX115 15" Live X 2-Way Passive F.01U.170.824:
Specifications
    Active or Passive Passive
    Frequency Response 75Hz - 18kHz ±3dB
    50Hz - 20kHz ±10dB
    Power Capacity 400W Continuous, 1600W Peak
    Maximum Sound Pressure Level (SPL) 134dB
    Nominal Sensitivity 95dB
    Impedance Nominal: 8 Ohms
    Minimum: 7.4 Ohms
    Crossover 1.7kHz
    Coverage 90 x 50° (HxV)
    Low Frequency Driver 15" (381mm) Woofer
    High Frequency Driver 1.5" (39mm) Titanium Diaphragm Compression Driver
    Enclosure Material 9-Ply 15mm Plywood, Internally Braced with Textured Paint, 18-Guage Powder-Coated Steel Grille, and Integrated Handles
    Input Connections 2 x NL4 Speakon Connectors
    Mounting 35mm Pole Socket
    Dimensions (HxWxD) 27.87 x 17.01 x 15.04" (708 x 432 x 382mm)
    Weight 50.71 lbs (23kg)
    Packaging Info
    Package Weight 59.0 lb
    Box Dimensions (LxWxH) 27.87 x 17.01 x 15.04"
    The user manual for the Electro-Voice ELX115 15" Live X 2-Way Passive F.01U.170.824 can be downloaded in .pdf format if it did not come with your new pa speakers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Electro-Voice users keep a unique electronic library for Electro-Voice pa speakerss, where you can use our link to download the user manual for the Electro-Voice ELX115 15" Live X 2-Way Passive F.01U.170.824.

    The user manual lists all of the functions of the Electro-Voice ELX115 15" Live X 2-Way Passive F.01U.170.824, all the basic and advanced features and tells you how to use the pa speakers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Electro-Voice service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Electro-Voice ELX115 15" Live X 2-Way Passive F.01U.170.824. User manuals are also available on the Electro-Voice website under Pro Audio - Live Sound - PA Speakers.
